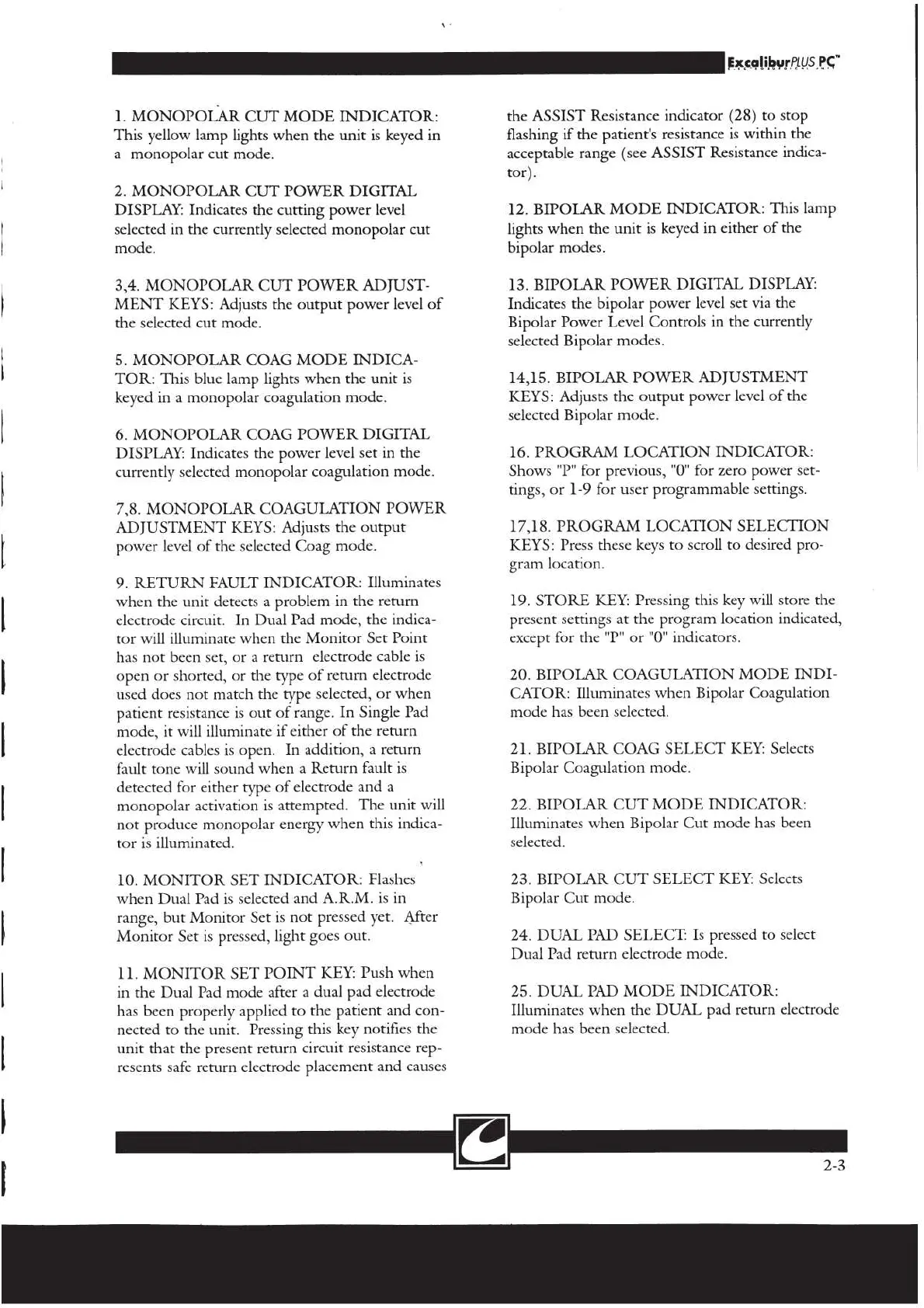

ConMed ExcaliburPLUS PC - Output Panel Details

1. MONOPOLAR CUT MODE INDICATOR:
This yellow lamp lights when the unit is keyed in
a monopolar cut mode.
2. MONOPOLAR CUT POWER DIGITAL
DISPLAY: Indicates the cutting power level
selected in the currently selected monopolar cut
mode.
3,4. MONOPOLAR CUT POWER ADJUST-
MENT KEYS: Adjusts the output power level of
the selected cut mode.
5. MONOPOLAR COAG MODE INDICA-
TOR: This blue lamp lights when the unit is
keyed in a monopolar coagulation mode.
6. MONOPOLAR COAG POWER DIGITAL
DISPLAY: Indicates the power level set in the
currently selected monopolar coagulation mode.
7,8. MONOPOLAR COAGULATION POWER
ADJUSTMENT KEYS: Adjusts the output
power level of the selected Coag mode.
9. RETURN FAULT INDICATOR: Illuminates
when the unit detects a problem in the return
electrode circuit. In Dual Pad mode, the indica-
tor will illuminate when the Monitor Set Point
has not been set, or a return electrode cable is
open or shorted, or the type of return electrode
used does not match the type selected, or when
patient resistance is out of range. In Single Pad
mode, it will illuminate if either of the return
electrode cables is open. In addition, a return
fault tone will sound when a Return fault is
detected for either type of electrode and a
monopolar activation is attempted. The unit will
not produce monopolar energy when this indica-
tor is illuminated.
10. MONITOR SET INDICATOR: Flashes
when Dual Pad is selected and A.R.M. is in
range, but Monitor Set is not pressed yet. After
Monitor Set is pressed, light goes out.
11. MONITOR SET POINT KEY: Push when
in the Dual Pad mode after a dual pad electrode
has been properly applied to the patient and con-
nected to the unit. Pressing this key notifies the
unit that the present return circuit resistance rep-
resents safe return electrode placement and causes
the ASSIST Resistance indicator (28) to stop
flashing if the patient's resistance is within the
acceptable range (see ASSIST Resistance indica-
tor).
12. BIPOLAR MODE INDICATOR: This lamp
lights when the unit is keyed in either of the
bipolar modes.
13. BIPOLAR POWER DIGITAL DISPLAY:
Indicates the bipolar power level set via the
Bipolar Power Level Controls in the currently
selected Bipolar modes.
14,15. BIPOLAR POWER ADJUSTMENT
KEYS: Adjusts the output power level of the
selected Bipolar mode.
16. PROGRAM LOCATION INDICATOR:
Shows "P" for previous, "0" for zero power set-
tings, or 1-9 for user programmable settings.
17,18. PROGRAM LOCATION SELECTION
KEYS: Press these keys to scroll to desired pro-
gram location.
19. STORE KEY: Pressing this key will store the
present settings at the program location indicated,
except for the "P" or "0" indicators.
20. BIPOLAR COAGULATION MODE INDI-
CATOR: Illuminates when Bipolar Coagulation
mode has been selected.
21. BIPOLAR COAG SELECT KEY: Selects
Bipolar Coagulation mode.
22. BIPOLAR CUT MODE INDICATOR:
Illuminates when Bipolar Cut mode has been
selected.
23. BIPOLAR CUT SELECT KEY: Selects
Bipolar Cut mode.
24. DUAL PAD SELECT: Is pressed to select
Dual Pad return electrode mode.
25. DUAL PAD MODE INDICATOR:
Illuminates when the DUAL pad return electrode
mode has been selected.
