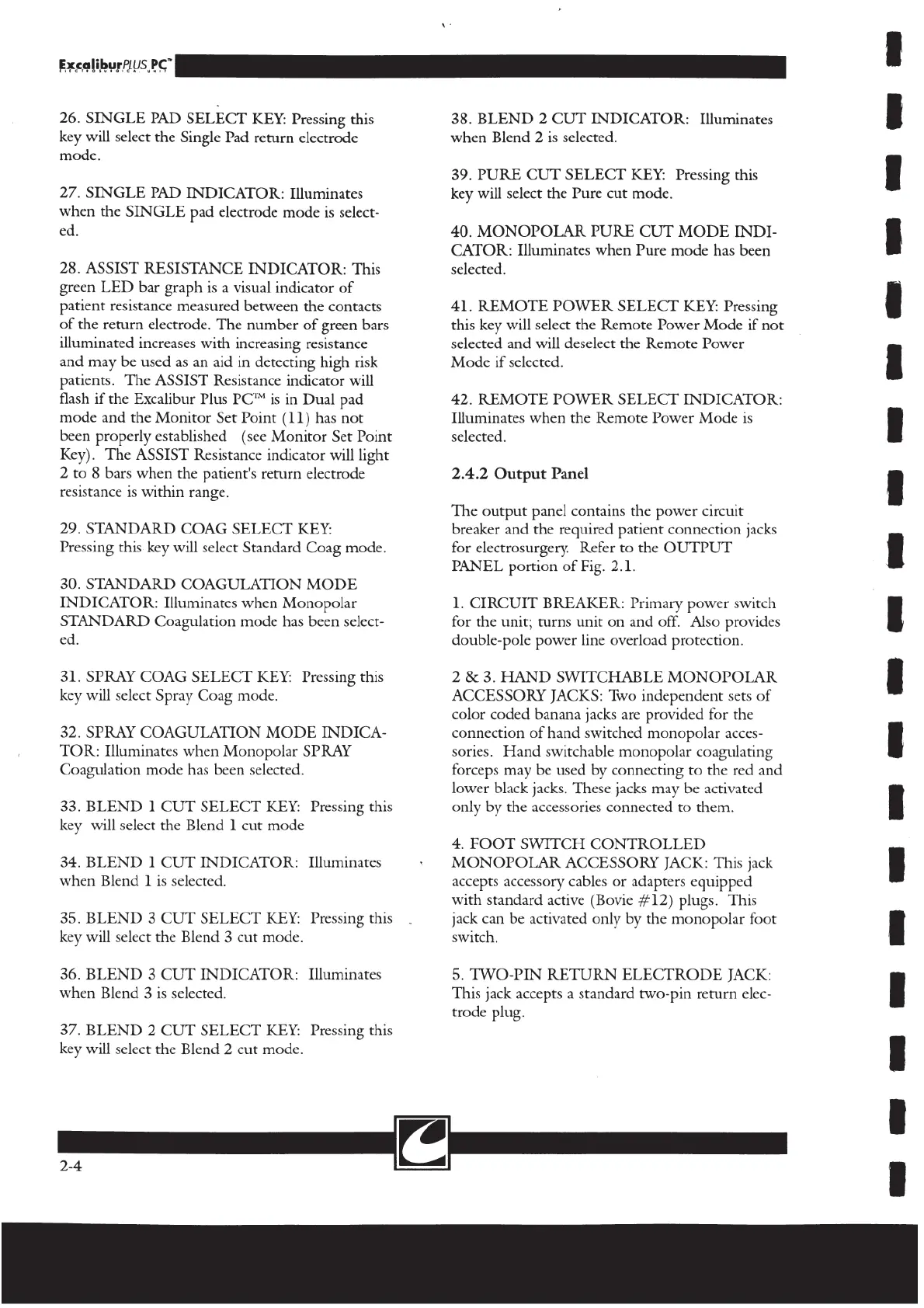

26. SINGLE PAD SELECT KEY: Pressing this
key will select the Single Pad return electrode
mode.
27. SINGLE PAD INDICATOR: Illuminates
when the SINGLE pad electrode mode is select-
ed.
28. ASSIST RESISTANCE INDICATOR: This
green LED bar graph is a visual indicator of
patient resistance measured between the contacts
of the return electrode. The number of green bars
illuminated increases with increasing resistance
and may be used as an aid in detecting high risk
patients. The ASSIST Resistance indicator will
flash if the Excalibur Plus PC™ is in Dual pad
mode and the Monitor Set Point (11) has not
been properly established (see Monitor Set Point
Key). The ASSIST Resistance indicator will light
2 to 8 bars when the patient's return electrode
resistance is within range.
29. STANDARD COAG SELECT KEY:
Pressing this key will select Standard Coag mode.
30. STANDARD COAGULATION MODE
INDICATOR: IIluminates when Monopolar
STANDARD Coagulation mode has been select-
ed.
31. SPRAY COAG SELECT KEY: Pressing this
key will select Spray Coag mode.
32. SPRAY COAGULATION MODE INDICA-
TOR: Illuminates when Monopolar SPRAY
Coagulation mode has been selected.
33. BLEND 1 CUT SELECT KEY: Pressing this
key will select the Blend 1 cut mode
34. BLEND 1 CUT INDICATOR: Illuminates
when Blend 1 is selected.
35. BLEND 3 CUT SELECT KEY: Pressing this
key will select the Blend 3 cut mode.
36. BLEND 3 CUT INDICATOR: Illuminates
when Blend 3 is selected.
37. BLEND 2 CUT SELECT KEY: Pressing this
key will select the Blend 2 cut mode.
38. BLEND 2 CUT INDICATOR: Illuminates
when Blend 2 is selected.
39. PURE CUT SELECT KEY: Pressing this
key will select the Pure cut mode.
40. MONOPOLAR PURE CUT MODE INDI-
CATOR: Illuminates when Pure mode has been
selected.
41. REMOTE POWER SELECT KEY: Pressing
this key will select the Remote Power Mode if not
selected and will deselect the Remote Power
Mode if selected.
42. REMOTE POWER SELECT INDICATOR:
Illuminates when the Remote Power Mode is
selected.
2.4.2 Output Panel
The output panel contains the power circuit
breaker and the required patient connection jacks
for electrosurgery. Refer to the OUTPUT
PANEL portion of Fig. 2.1.
1. CIRCUIT BREAKER: Primary power switch
for the unit; turns unit on and off. Also provides
double-pole power line overload protection.
2 & 3. HAND SWITCHABLE MONOPOLAR
ACCESSORY JACKS: Two independent sets of
color coded banana jacks are provided for the
connection of hand switched monopolar acces-
sories. Hand switchable monopolar coagulating
forceps may be used by connecting to the red and
lower black jacks. These jacks may be activated
only by the accessories connected to them.
4. FOOT SWITCH CONTROLLED
MONOPOLAR ACCESSORY JACK: This jack
accepts accessory cables or adapters eguipped
with standard active (Bovie #12) plugs. This
jack can be activated only by the monopolar foot
switch.
5. TWO-PIN RETURN ELECTRODE JACK:
This jack accepts a standard two-pin return elec-
trode plug.
