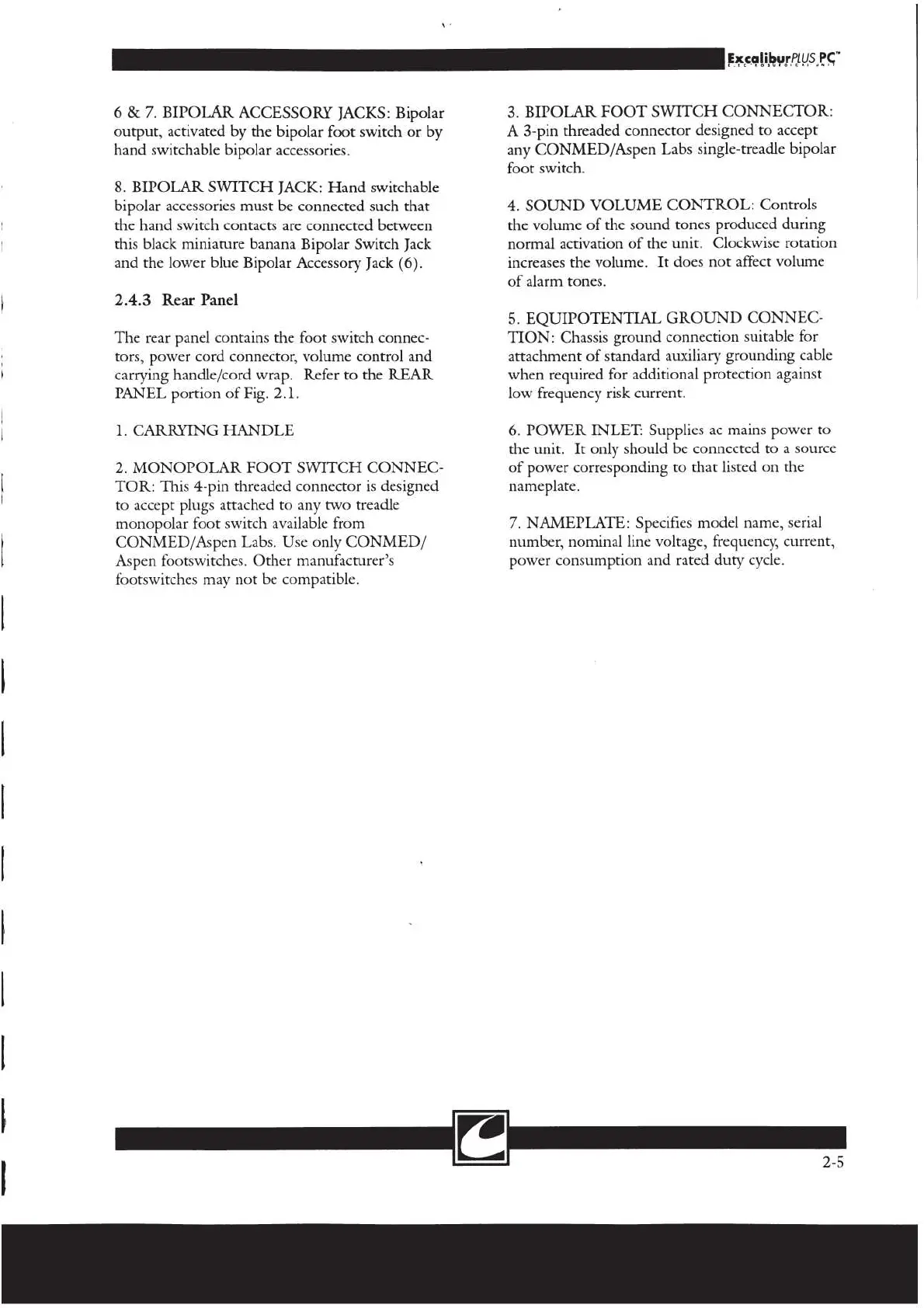

6
&
7.
BIPOLAR
ACCESSORY
JACKS:
Bipolar
output,
activated
by
the
bipolar
foot
switch
or
by
hand
switchable
bipolar
accessories.
8.
BIPOLAR
SWITCH
JACK:
Hand
switchable
bipolar accessories
must
be
connected
such
that
the
hand
switch
contacts
are
connected
between
this
black
miniature
banana
Bipolar
Switch
Jack
and
the
lower
blue
Bipolar
Accessory
Jack
(6).
2.4.3
Rear
Panel
The
rear
panel
contains
the
foot
switch
connec-
tors,
power
cord
connector,
volume
control and
carrying
handle/cord
wrap.
Refer
to
the
REAR
PANEL
portion
of
Fig.
2.1.
1.
CARRYING
HANDLE
2.
MONOPOLAR
FOOT
SWITCH
CONNEC-
TOR:
This
4-pin
threaded
connector
is
designed
to
accept
plugs
attached
to
any
two
treadle
monopolar
foot
switch
available
from
CONMED/Aspen
Labs.
Use
only
CONMED/
Aspen
footswitches.
Other
manufacturer’s
footswitches
may
not
be
compatible.
US
RG
3.
BIPOLAR
FOOT
SWITCH
CONNECTOR:
A
3-pin
threaded
connector
designed
to
accept
any
CONMED/Aspen
Labs
single-treadle
bipolar
foot
switch.
4.
SOUND
VOLUME
CONTROL:
Controls
the
volume
of
the
sound
tones
produced
during
normal
activation
of
the
unit.
Clockwise
rotation
increases
the
volume.
It
does
not
affect
volume
of
alarm
tones.
5.
EQUIPOTENTIAL
GROUND
CONNEC-
TION:
Chassis
ground
connection
suitable
for
attachment
of
standard
auxiliary
grounding
cable
when
required
for
additional
protection
against
low
frequency
risk
current.
6.
POWER
INLET:
Supplies
ac
mains
power
to
the unit.
It
only
should
be
connected
to
a
source
of
power
corresponding
to
that
listed
on
the
nameplate.
7.
NAMEPLATE:
Specifies
model
name,
serial
number, nominal
line
voltage,
frequency,
current,
power
consumption
and
rated
duty
cycle.
