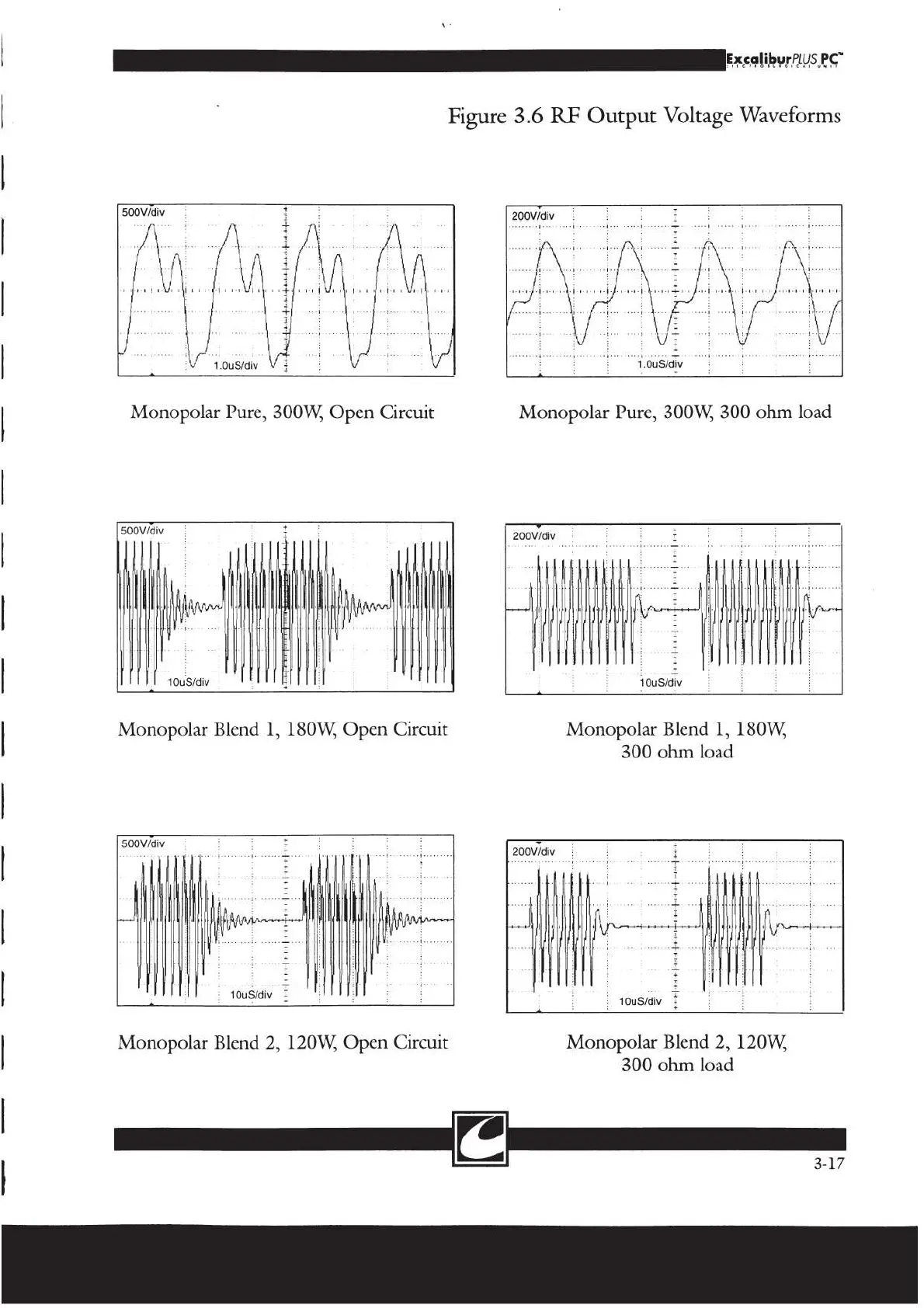

Figure 3.6 RF Output Voltage Waveforms
500V/div
1.0uS/div
200V/div
1.0uS/div
Monopolar Pure, 300W, Open Circuit Monopolar Pure, 300W, 300 ohm load
‘500V/div
İl m
10uS/div
Monopolar Blend 1, 180W, Open Circuit
500V/div
№
10uS/div =
200V/div
10uS/div
Monopolar Blend 1, 180W,
300 ohm load
200V/div
Monopolar Blend 2, 120W, Open Circuit
10uS/dv À
Monopolar Blend 2, 120W,
300 ohm load
