ExcaliburPUS PC

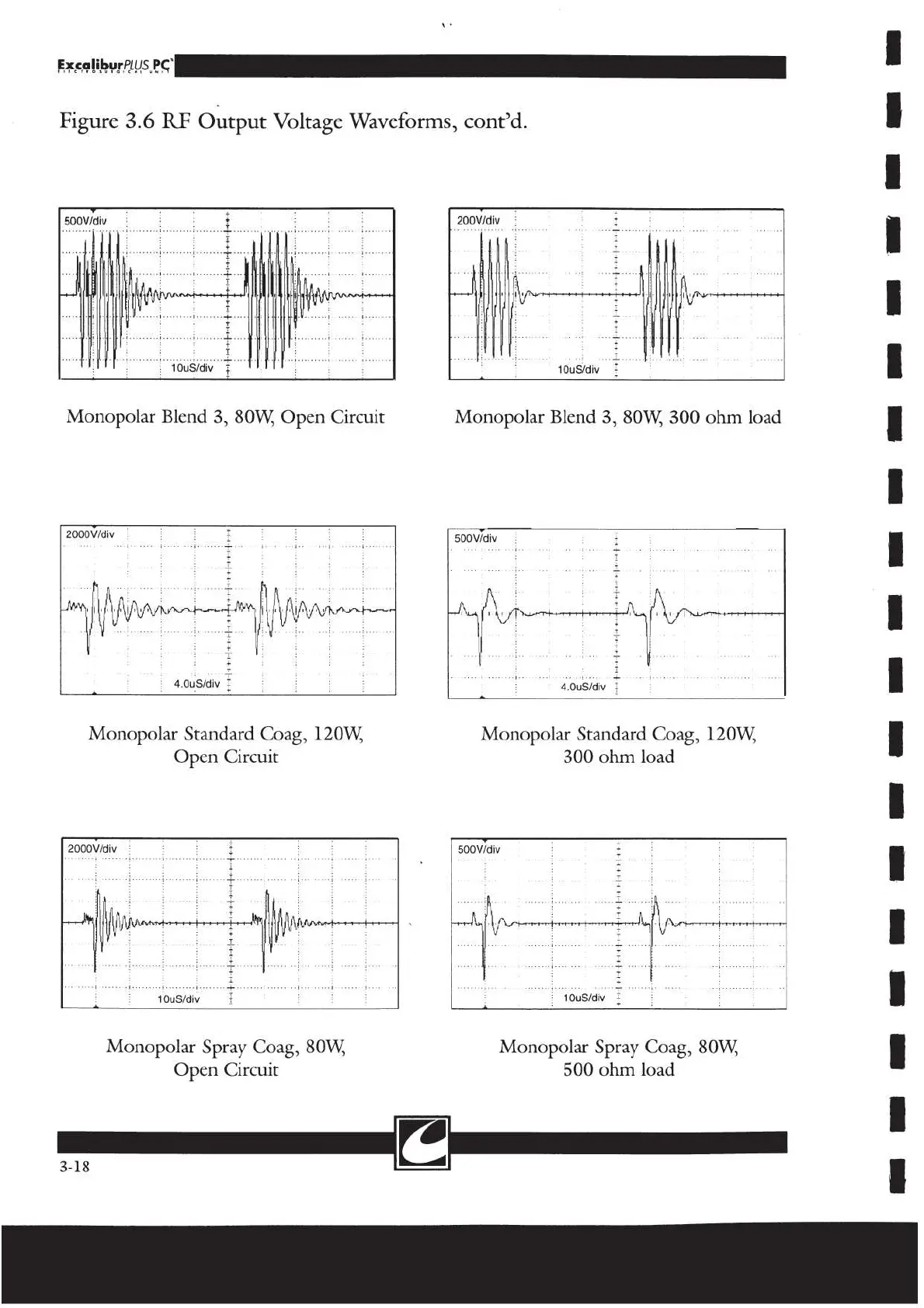

Figure 3.6 RF Output Voltage Waveforms, cont'd.
500V/div
ly
10uS/div
200V/div
i
10uS/div É
Monopolar Blend 3, 80W, Open Circuit
Monopolar Blend 3, 80W, 300 ohm load
2000V/div
和 мм A]
диам =
Monopolar Standard Coag, 120W,
Open Circuit
500Vidiv
4.0uS/div 7
Monopolar Standard Coag, 120W,
300 ohm load
2000V/div
fare
10uS/div
500V/div
10uS/div =
Monopolar Spray Coag, 80W,
Open Circuit
Monopolar Spray Coag, 80W,
500 ohm load
3-18 (=
