SRT X-BAND RADAR SYSTEMS
ANNEX
304202P003 1 Rev. C
Installation Instructions
Multicore Cable Technical Specification

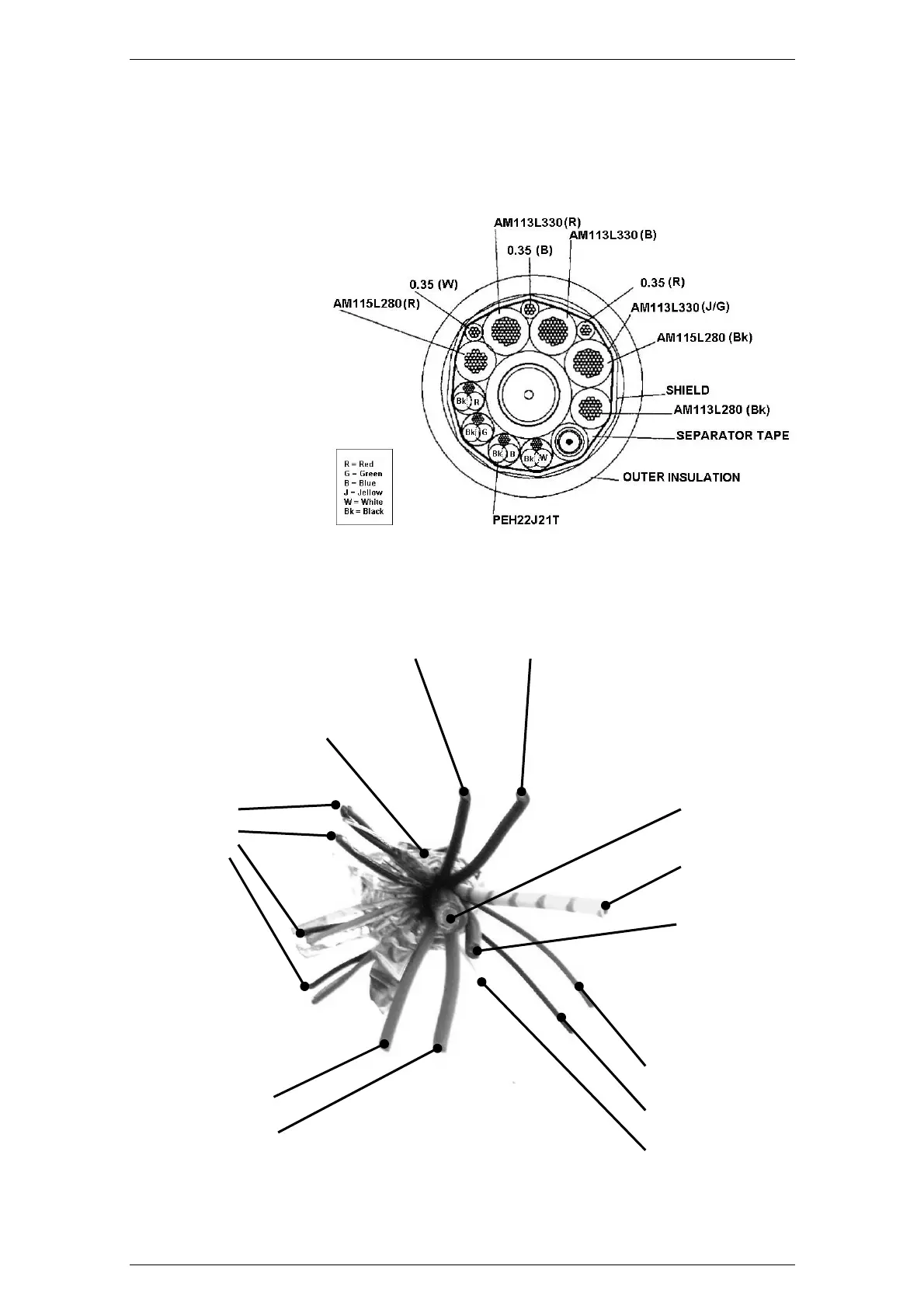

Core overview of Multicore Cable:
Red 0,35mm²
Blue 0,35mm²
White 0,35mm²
Coax RJR37
Ground cable 2,5mm²
Coax RKB15
Power supply cable
Black 1,5mm² Black 2,5mm²
4 shielded
twisted pair
Power supply cable
Red 1,5mm²
Red 2,5mm²
Shield
