304202P003 2 Rev. C
Cable handling

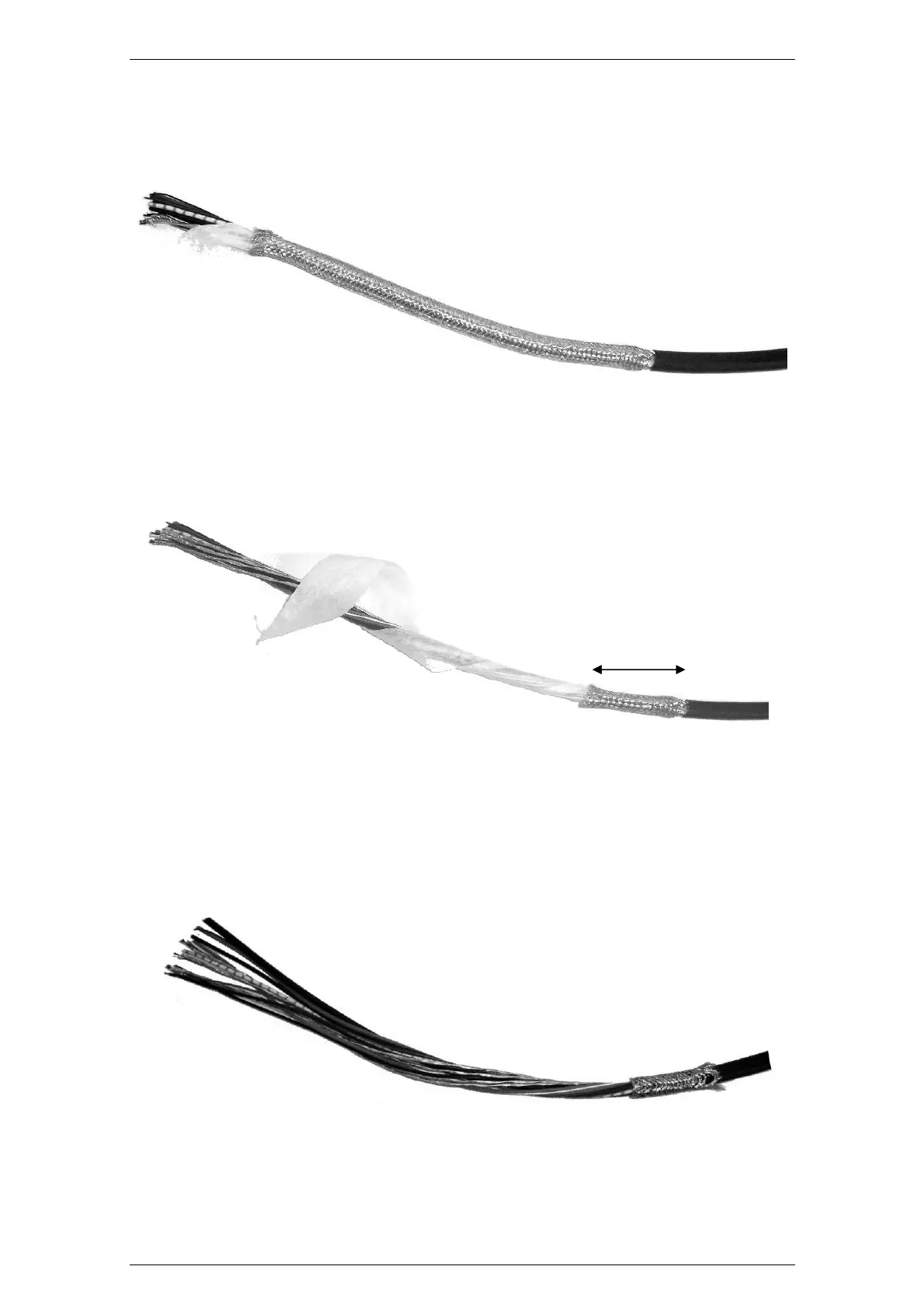

• Dismantle the outer insulation of the cable for 60 cm.
• Remove most of the shield, let it be 5 cm with shield perceptive to vision:
• Remove the main protective film and turn, as in the picture, the shield
over the cable outer isolation.
5 cm. remaining
