SRT X-BAND RADAR SYSTEMS
ANNEX
304202P003 5 Rev. C
RG coaxial cables

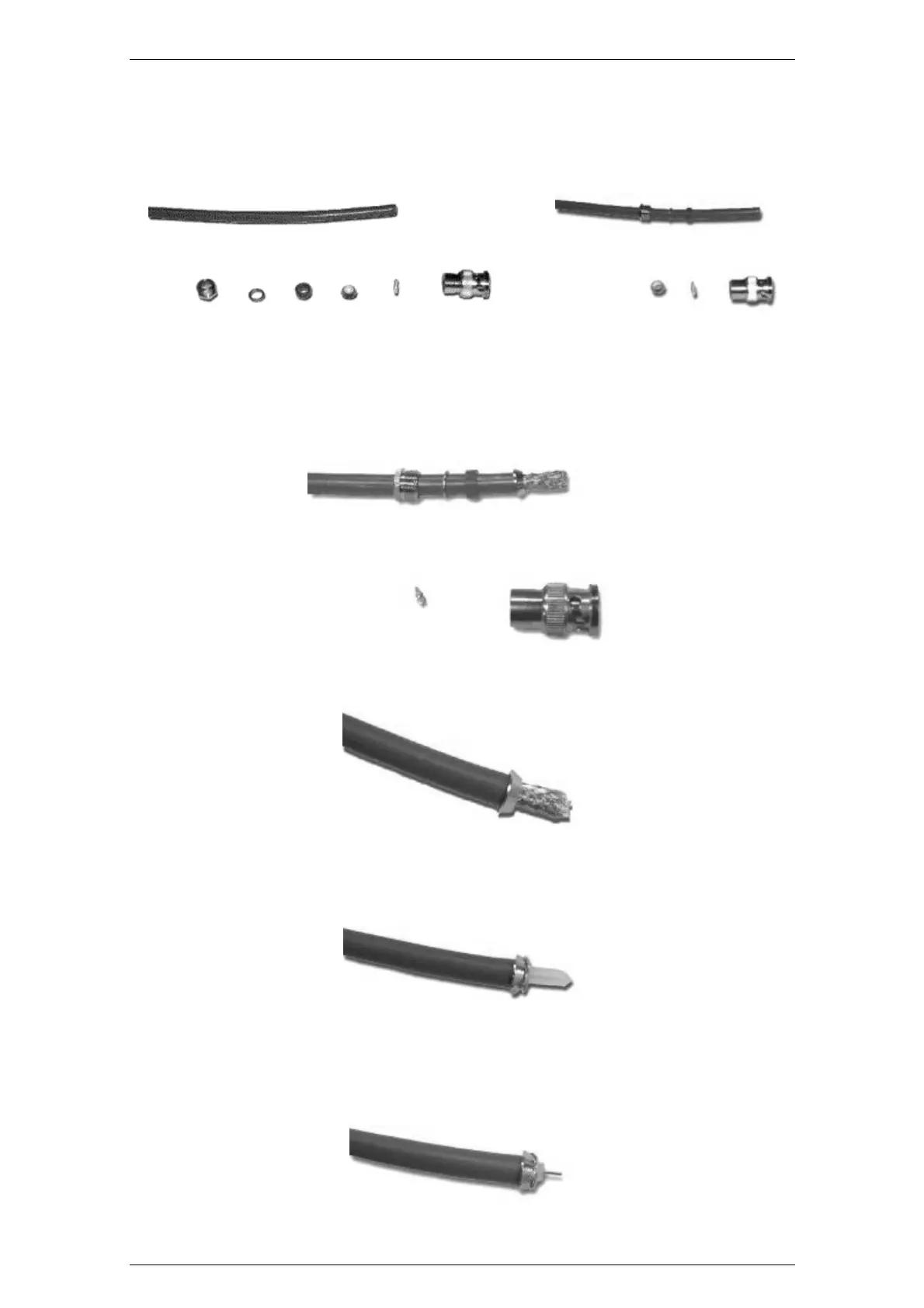

Mechanical details of BNC connector:
Cut the cable to the wanted length.
Dismantle the outer isolation of the RG coaxial cable without damaging the
shield, and put the related part of the BNC connector as below:
Details related to the ring of the BNC connector.
Take back the shield on the ring and trim exceeding shield
:
Dismantle the outer isolation of the centre core without damaging the centre
core and be sure that the shield is not shorted with the centre core:
To Next Page
