SRT X-BAND RADAR SYSTEMS

ANNEX

304202P003 6 Rev. C

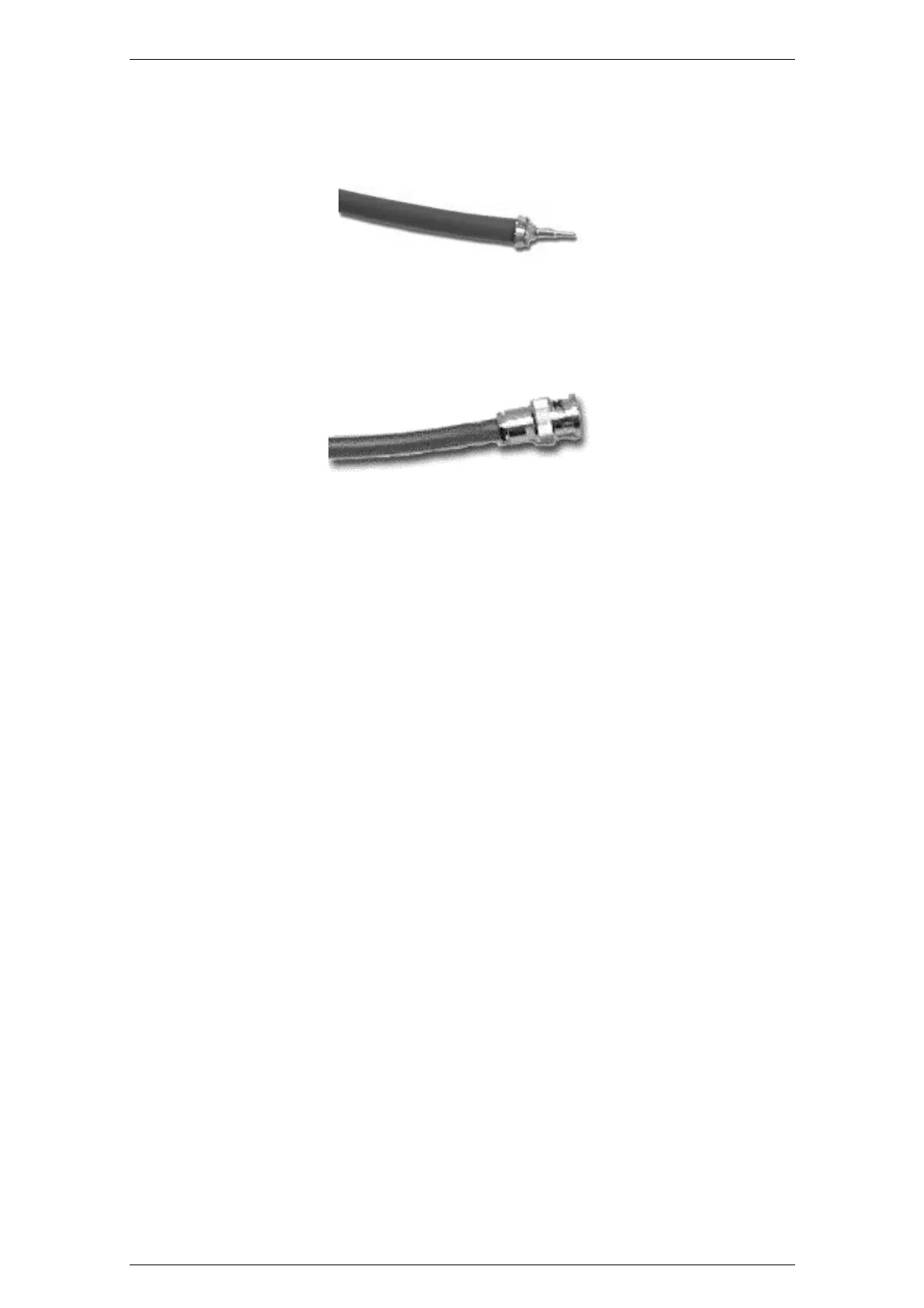

Solder the centre core with the BNC pin.

Be careful not damage the isolation (i.e. burned) during the solder process:

Mount the BNC connector as below:
