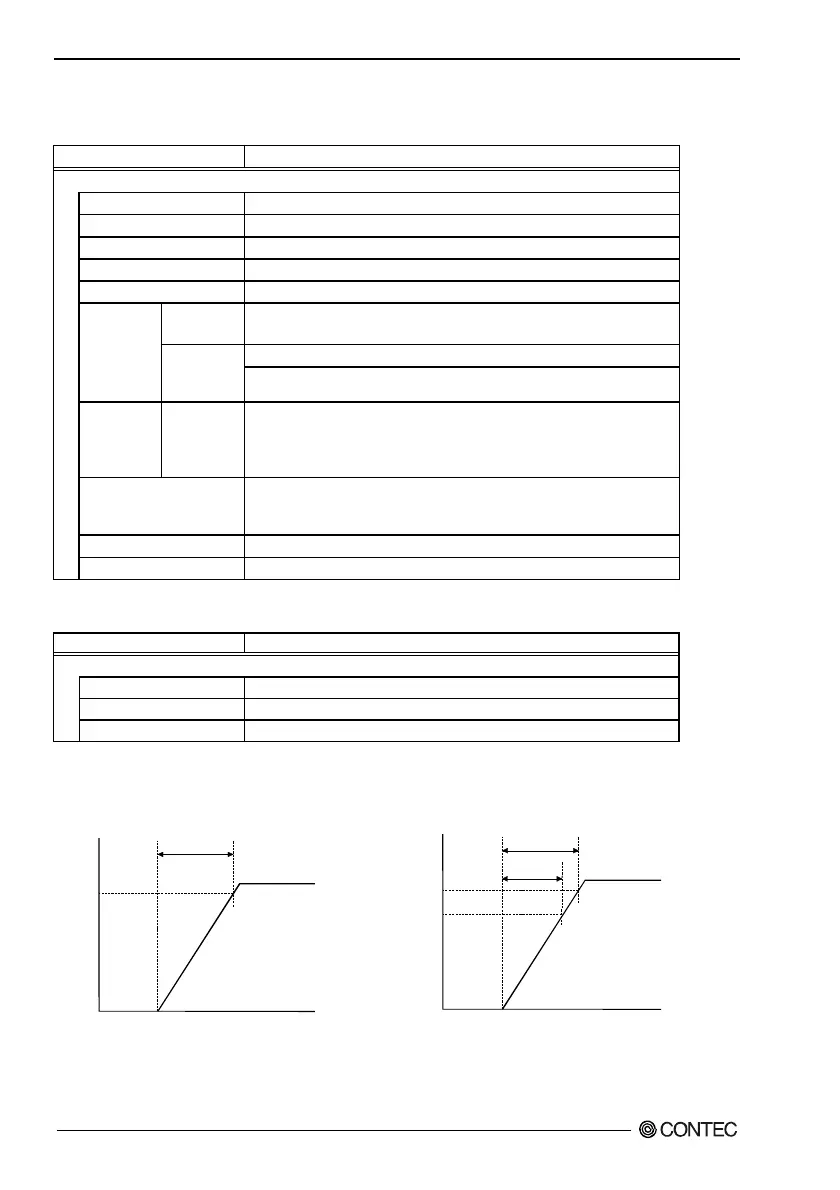

2. Overview
8 IPC-PT/MV10 / IPC-PT/LS10 / HPC-HMV10 / HPC-HLS10 Hardware Manual
Installation Environment Requirements
Table 2.2. Installation Environment Requirements
Item Specification
Ambient specifications
Operating temperature 0 to 50ºC
Storage temperature -10 to 60ºC
Humidity 20 to 85%RH(no condensation)
Floating dust particles Not to be excessive
Corrosive gases None
Line noise AC line: 2kV (IPC-PT/xx10AC series, HPC-Hxx10AC series)
Signal line: 1kV (EN61000-4-4 Level3, IEC1000-4-4 Level 3)
Contact discharge / 4kV (EN61000-4-2 Level 2, IEC1000-4-2 Level 2)
Line-noise
resistance
Static
electricity
resistance
Atmospheric discharge / 8kV (EN61000-4-2 Level 3, IEC1000-4-2 Level 3)
Vibration
resistance
Anti-shaking
10 to 50Hz/semi-amplitude 0.15mm
One cycle (10-150-10 Hz) of 1 oct/min test at 19.6 m/s
2
(2G) between 57 an
150 Hz x 10 times in three (X/Y/Z) directions (80 minutes each)
(JIS C0040-compliant, IEC68-2-6-compliant)
Impact resistance
Tested with 11-ms half-sine wave at 98 m/s
2
(10G) three times in each of
tree (X/Y/Z) directions
(JIS C0041-compliant, IEC68-2-27-compliant)
Ground Class D grounding (previous class 3 grounding)
Water-proof and dust-proof IP65, front
Table 2.3. Power Supply Installation Environmental Conditions for AC Powered Models
(IPC-PT/xx10AC series, HPC-Hxx10ACseries)
Item Specification
Power supply specifications
Allowable instantaneous Less than 17ms (Mean value with ACIN 100 V, Io = 100%)
Power outage
2.0kVAC (between input and FG), 10 mA for 1 minute
Dielectric strength
50MΩ (500VDC)
Power Up Specification for DC Powered Models
+12VDC +24VDC
(IPC-PT/xx10DC1Series, HPC-Hxx10DC1Series) (IPC-PT/xx10DC2Series, HPC-Hxx10DC2Series)
1~30mS
11.4V
Volt
Time
1~50mS
19.2V
Volt
Time
18.0V
1~10mS
Figure 2.1. Power Up Specification for DC Powered Models
