Display Optical Specifications
Table 2.4. IPC-PT/MV10 series, HPC-HMV10 series
Parameter Condition Min. Typ.
φ = 180° 35deg 45deg
View angle
(Vertical)
φ = 0° 55deg 70deg
φ = +90° 60deg 70deg
View angle
(Horizontal)
CR⊇5
φ= -90°
Display.
Monochrome
60deg 70deg
Contrast Display. Monochrome 100 -
Brightness
(at center)
Display. White 280cd/m
2
350cd/m
2
Table 2.5. IPC-PT/LS10 series, HPC-HLS10 series
Parameter Condition Min. Typ.
φ = 180° 20deg 35deg
View angle
(Vertical)
φ = 0° 50deg 65deg
φ = +90° 40deg 60deg
View angle
(Horizontal)
CR⊇10
φ= -90°
Display.
Monochrome
40deg 60deg
Contrast Display. Monochrome 100 -
Brightness
(at center)
Display. White
200cd/m
2
250cd/m
2
Contrast ratio (CR) =
Brightness at screen center with white displayed
Brightness at screen center with black displayed
Left
(
φ
=
- 90
o
)
Z
Y
X
Top
( φ = 180
o
)
Right
( φ = 90
o
)
Bottom
( φ = 0
o
)
( θ = 0
o
)
Measurement direction
θ
Module
φ

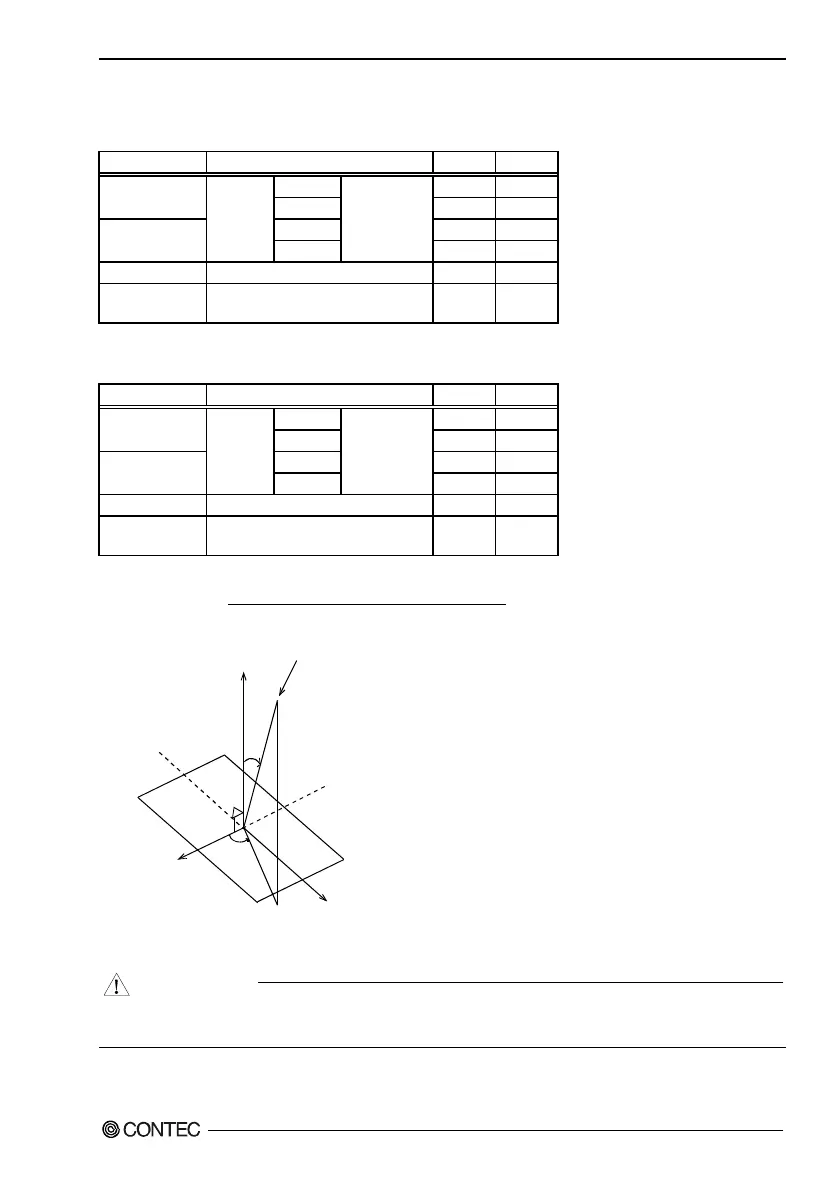

Figure 2.2. Definition of viewable range
CAUTION
The above optical specification data shows optical characteristics of the liquid crystal in the display;
the data does not represent the actual view on the display or its viewing angles.
