4. Jumper Settings
PC-686BX(NLX)-LV, PC-686BX(NLX)-LVV
25
4.
Jumper Settings
Watchdog Timer Output Selector: JP6
The watchdog timer output is triggered if the watchdog timer times out due to a
runaway program or other reason. JP6 selects whether the timeout output generates
an NMI or a system reset.
Note, however, that Windows 2000 and Windows NT do not support NMIs.

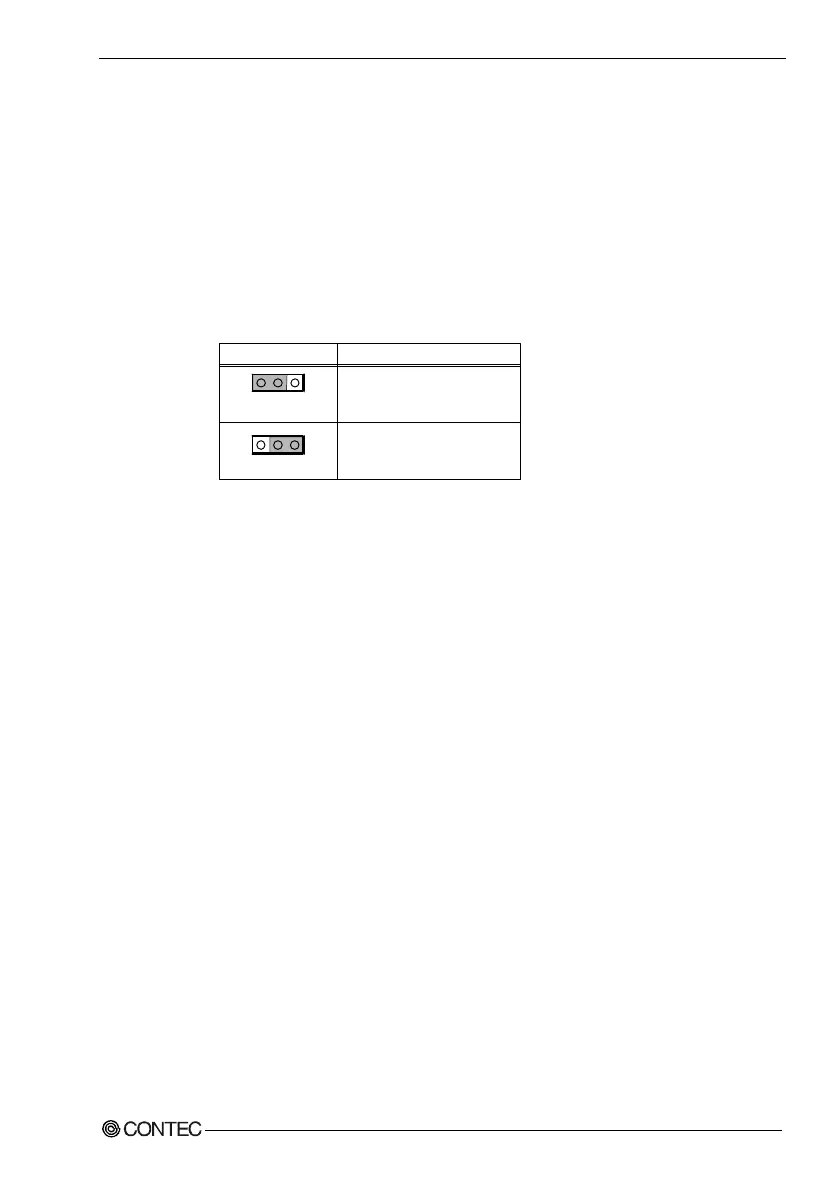

Table 4.1. JP6: Watchdog Timer Output Selection
JP6 Function
NMI
Reset
1 2 3
1 2 3
(Default)
