6. Software Utilities
PC-686BX(NLX)-LV, PC-686BX(NLX)-LVV
45
Hardware Monitoring
Hardware monitoring is incorporated into the hardware monitoring controller
(Winbond W83781D) which enables the SBC temperature, voltage, and fan sensor
output to be read.

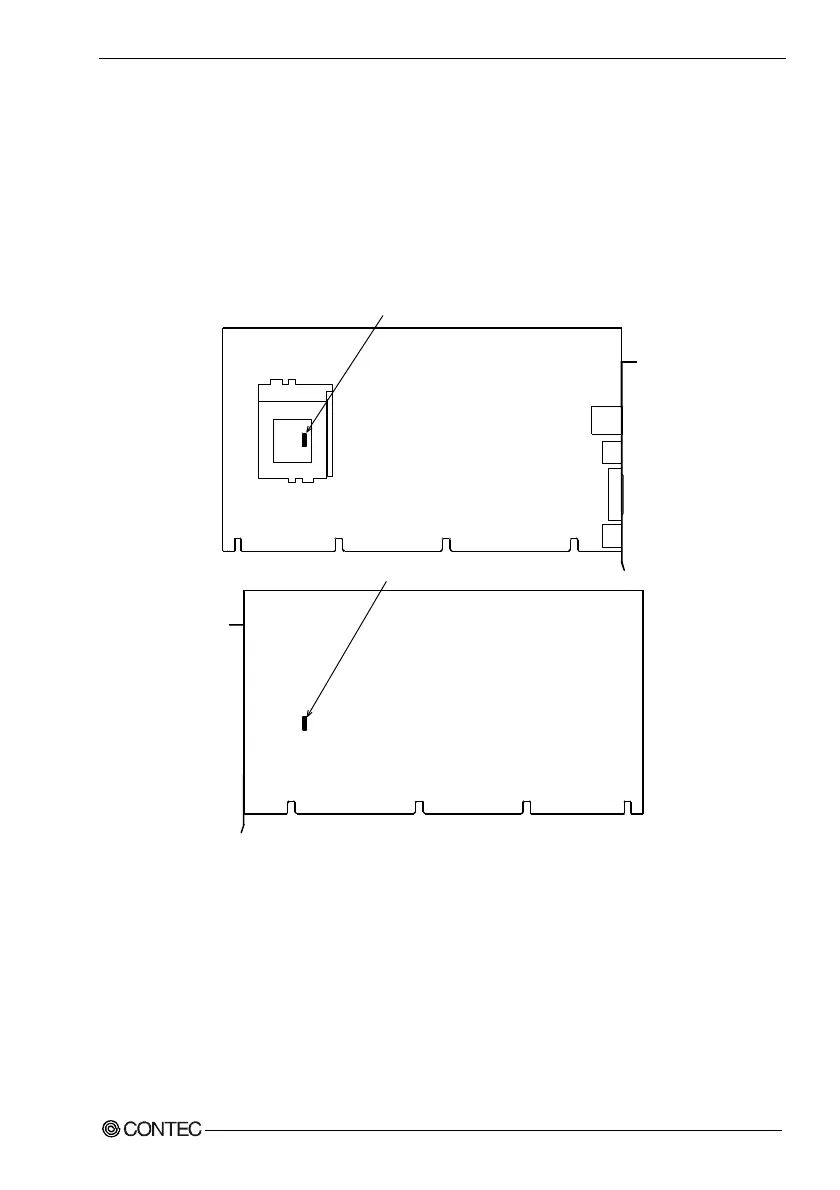

Temperature
The temperature can be read from the two thermistors attached to the SBC.
Sensor1
Sensor 2
Voltage
The3.3V, +5V, -5V, +12V, -12V, VTT (1.5V), and Vcore voltages from the SBC can
be read.
VTT (1.5V): CPU I/O voltage
Vcore: CPU core voltage
