Scanning Thick Media 25
Automatic Thick Media Adjustment
Scanner Models: HD5450, HD4250, HD4230, HD3650,
HD3630
Scanners with Automatic Thickness Adjustment Control (ATAC) have an
ATAC key on the operator’s panel. You use the key to raise and lower the
pressure-platen. You can change the insertion slot size (pressure-platen
height) on your scanner from 2mm to 15 mm (up to 0.6”). Originals up to
2mm thick should be scanned with the pressure all the way down (normal
position). Thicker originals will require you use the ATAC key to adjust for
thick media.

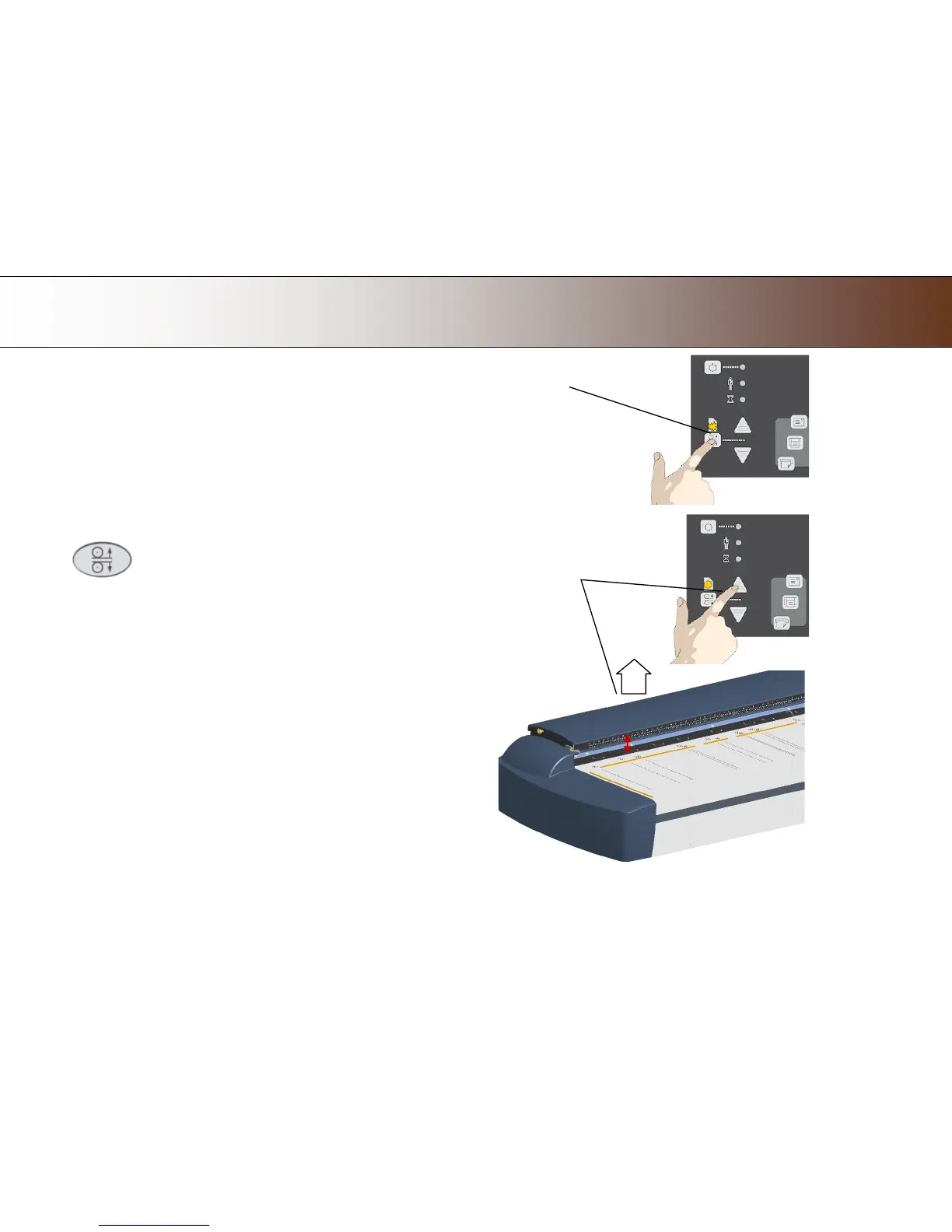

The ATAC key on the operator panel.
To adjust the insertion slot for thick media with ATAC:
1. Press the ATAC key on your operator’s panel to set the scanner in
ATAC mode.
2. The Paper Ready Indicator blinks yellow indicating the scanner is in
ATAC mode but not yet ready, i.e., the pressure-platen is not yet
positioned for the thick original.
3. Press and hold the Paper Forward key (arrow up) key to raise the
pressure-platen until there is room to insert the thick original.
4. Insert the thick original evenly for a straight scan path.
5. Press and hold the Paper Reverse (arrow down) key to lower the
pressure-platen until the pressure-platen stops on its own.
6. The Paper Ready indicator will stop blinking and remain yellow when
the pressure-platen is positioned correctly and is ready for thick media
scanning.
7. The scanner will automatically leave the ATAC mode, which means
that the Paper Forward and Paper Reverse keys will return to their
normal functionality for moving the original forwards and backwards.
