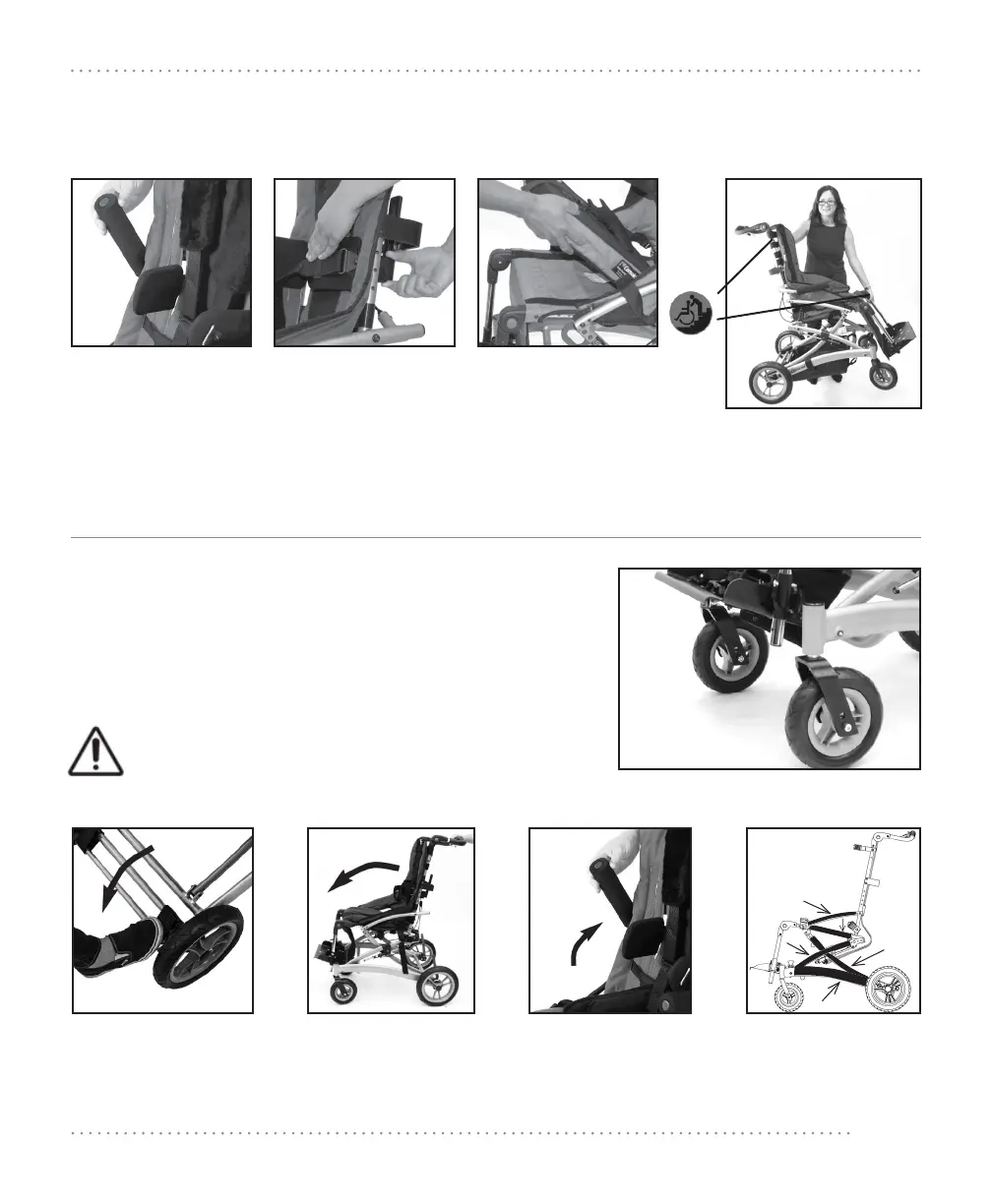

Folding the Chair
Fig. 20
1. Before folding, front wheels of chair should be in a
forward facing position. Fig. 20
2. Apply wheel lock by pushing wheel lock bar downwards.
Fig. 21
3. Position chair in a full upright position (not tilted or
reclined). Fig. 22
Fig. 21 Fig. 22 Fig. 23
CAUTION: Keep ngers free of folding mechanism.
If applicable, ip up armrest, fold lateral trunk supports and remove seat
cushion. Fig. 23, 24, 25, 26 & 27
8. Adjust push handle and footplate into desired position.
9. If applicable, lower armrests, unfold lateral trunk supports and place seat cushion onto seat
upholstery. Fig. 16, 17 & 18
How to lift chair when unfolded:
With one hand, hold leg rest tube; with the other, hold the back crossbar. Fig. 19
Fig. 19
Fig. 17 Fig. 18
Fig. 24
NOTE: Shaded areas
indicate moving
parts
