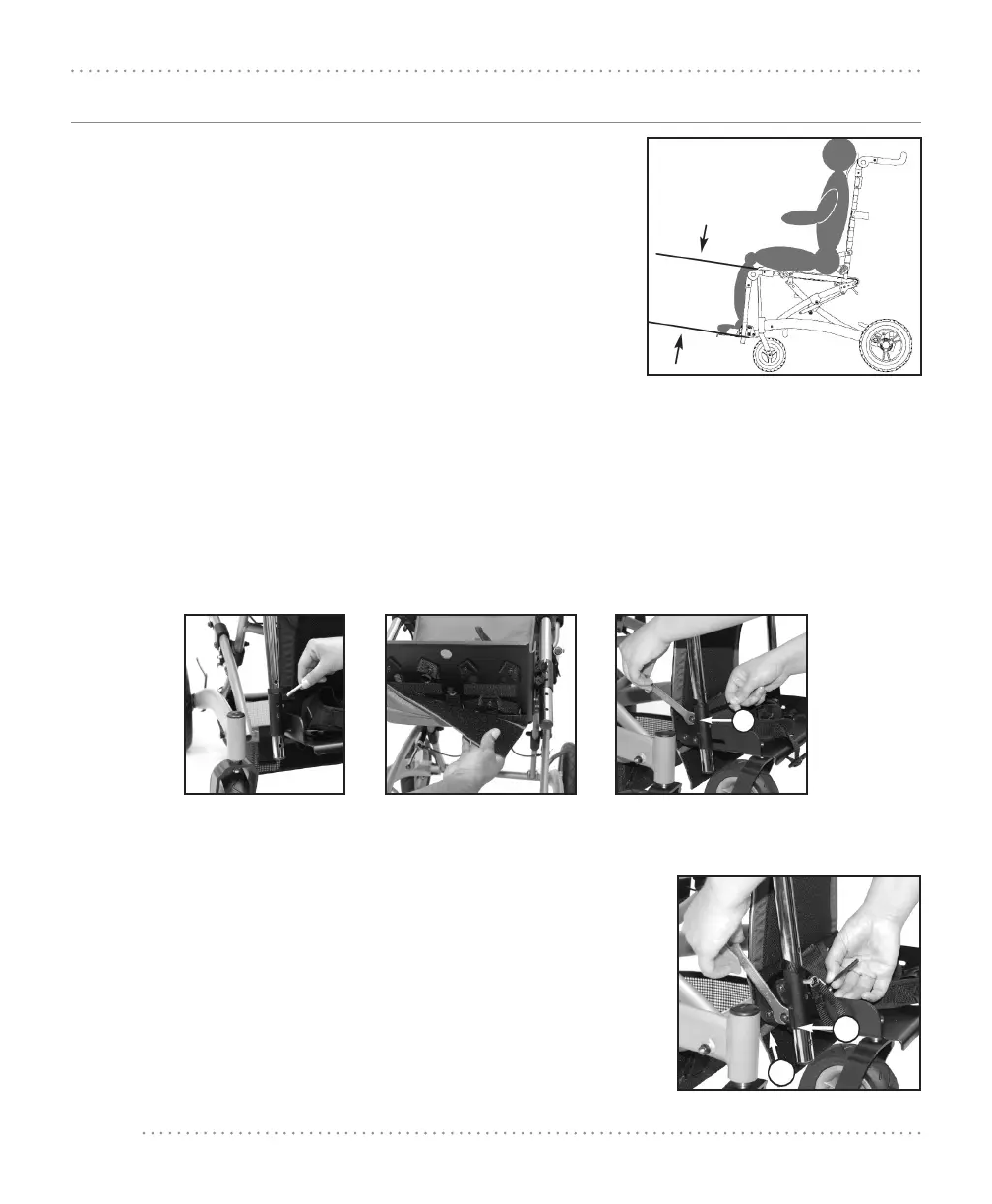

Footplate Adjustment
All Convaid footplates are height adjustable. To determine the
correct seat-to-footplate height, measure from the back of the
knee to the bottom of the heel. Fig. 74
NOTE: By ipping the footplate upside-down, it allows you to
accommodate shorter leg drops than the chair is otherwise
able to do in standard conguration.
Fig. 74
Height Adjustment:
The soles of the feet or heels should rest comfortably on top of
the footplates. To achieve this, remove detent pins on the front of
the leg tubes, slide the footplate to the desired height and reinsert
the pins. When the footplate is adjusted in its highest position, the
excess material of the calf ap may be wrapped under the footplate
and attached with Velcro
®
. Fig. 75 & 76
Angle Adjustment:
To achieve comfortable foot placement, the footplate angle may be adjusted. Loosen the #1 bolt on
each side, and adjust to desired position. Fig. 77
Fig. 75
Fig. 76
Fig. 77
#1
Fig. 78
Depth Adjustment:
To adjust the depth of the footplate, loosen the #2 & #3 bolts on each
side of the footplate. Slide the footplate to the desired depth, and
tighten the bolts. Fig. 78
#2
#3
