CONVAID USER’S GUIDE
Individual Footplates
To adjust minimum seat to footplate height:
1. Flip and swap the individual footplate assemblies. Fig. 79 & 80
2. Use a 5/32” Allen wrench to loosen the nuts and bolts from each footplate.
3. Slide the footplate out and adjust the lock pin to the upper locking position.
4. Reattach the footplates at desired angle.
5. Retighten hardware.
6. Adjust to desired height.
NOTE: The lock pin must be in locking position.

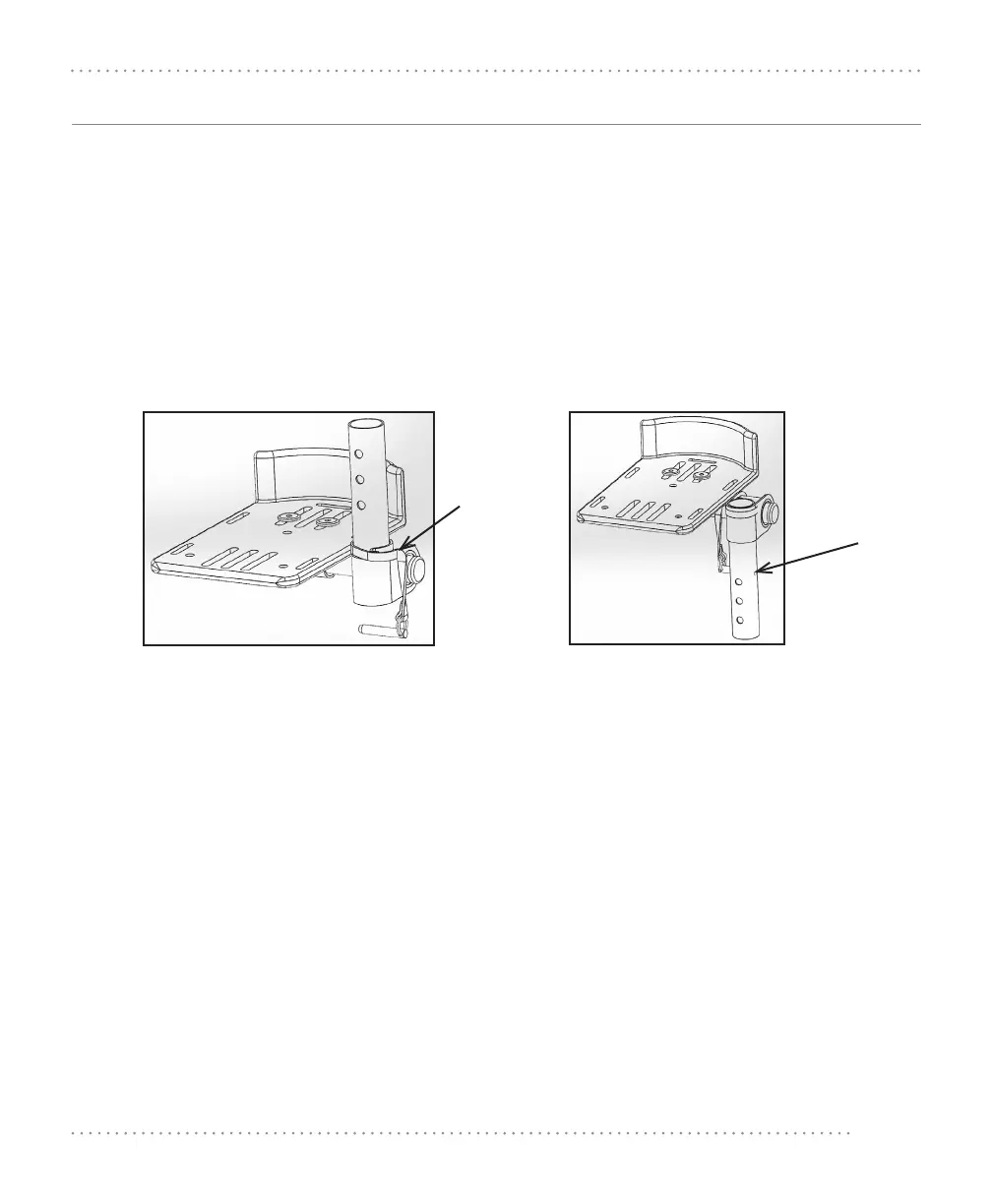

Fig. 79 Fig. 80
Footplate
Assembly
Standard Footplate Flipped Footplate
Footplate
Assembly
