CONVAID USER’S GUIDE

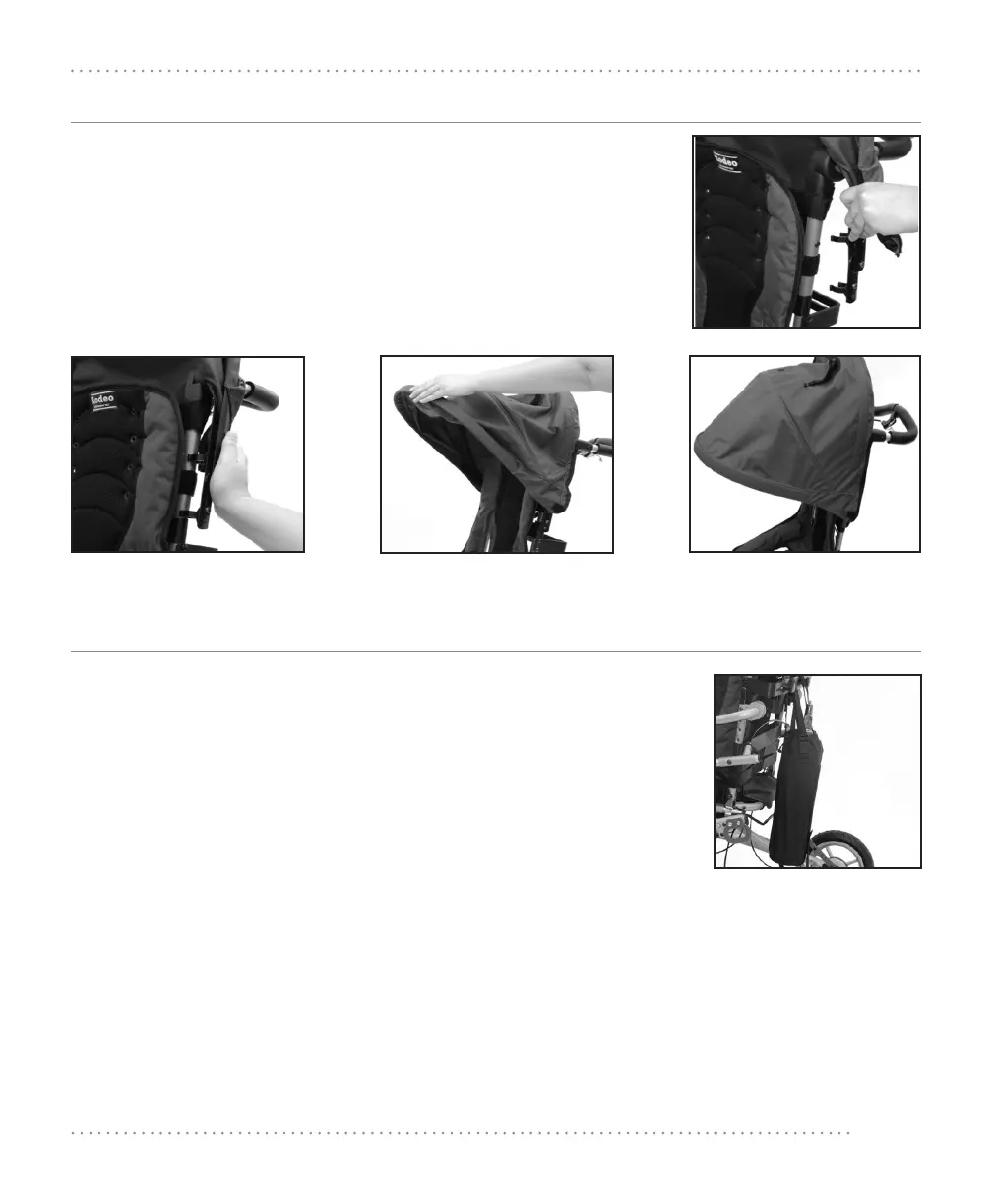

Fig. 108
Adjustable Canopy
Installation:
Align plastic canopy retaining clips with frame of the chair. Push on
clips with the ball of your hand until they snap into place. Fig. 108
& 109
To open, grasp top of canopy and push forward and rotate
downward. Fig. 110 & 111
Fig. 109 Fig. 110 Fig. 111
Fig. 112
Oxygen Tank Bag
The oxygen tank holder holds a size 109 mm diameter tank. To attach,
wrap top straps around the support bar and buckle. Wrap lower strap
around frame at the base to keep bag taut when chair is tilted. Fig. 112
