Convaid Rodeo - Upper Extremity Support Surface (Tray)

37
CONVAID USER’S GUIDE
Calf Panel
The calf panel provides support for the lower legs. To attach, wrap the calf panel around leg rest
extensions and Velcro
®
to the back of the panel. Make sure it attaches to the calf panel support (seat
upholstery leg extension) Fig. 140, 141 & 142.
Fig. 140 Fig. 141 Fig. 142
Calf panel
support
Upper Extremity Support Surface (Tray)

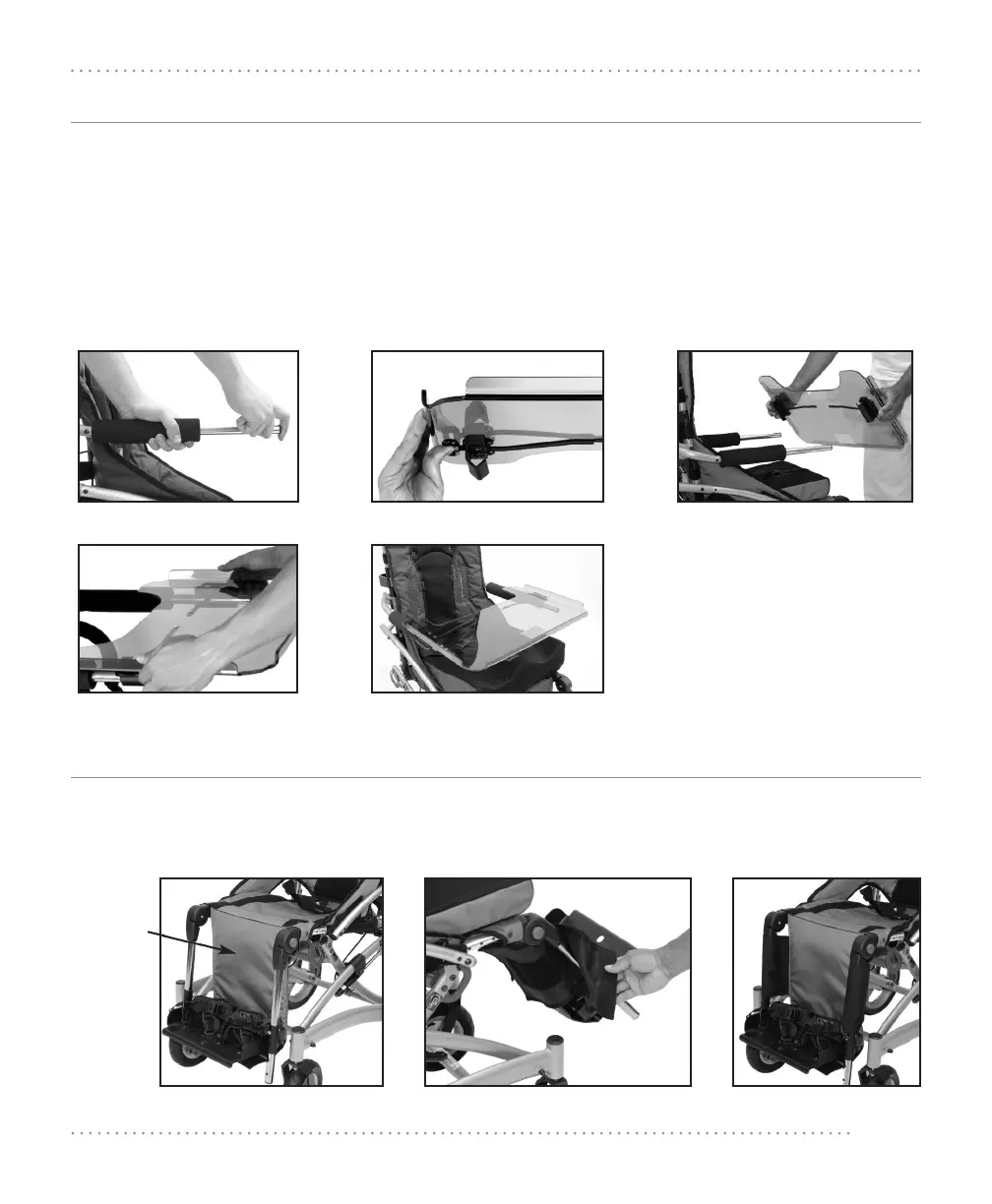

Trays assist in trunk stabilization and provide a solid surface for items. They feature a safety lip and
are easy to clean.
1. Depress spring button on underside of armrest until tray mount tube pops out.
2. Grasp tray mount and extend until locked into position. Fig. 135
3. While holding the tray with both hands, squeeze black handles and slide onto ends of tray
mount. Fig. 136, 137, 138 & 139
4. When returning tray mount tube inside, maintain alignment of snap in order to secure button
into correct hole.
Fig. 135 Fig. 136
Fig. 138
Fig. 137
Fig. 139
