CONVAID USER’S GUIDE

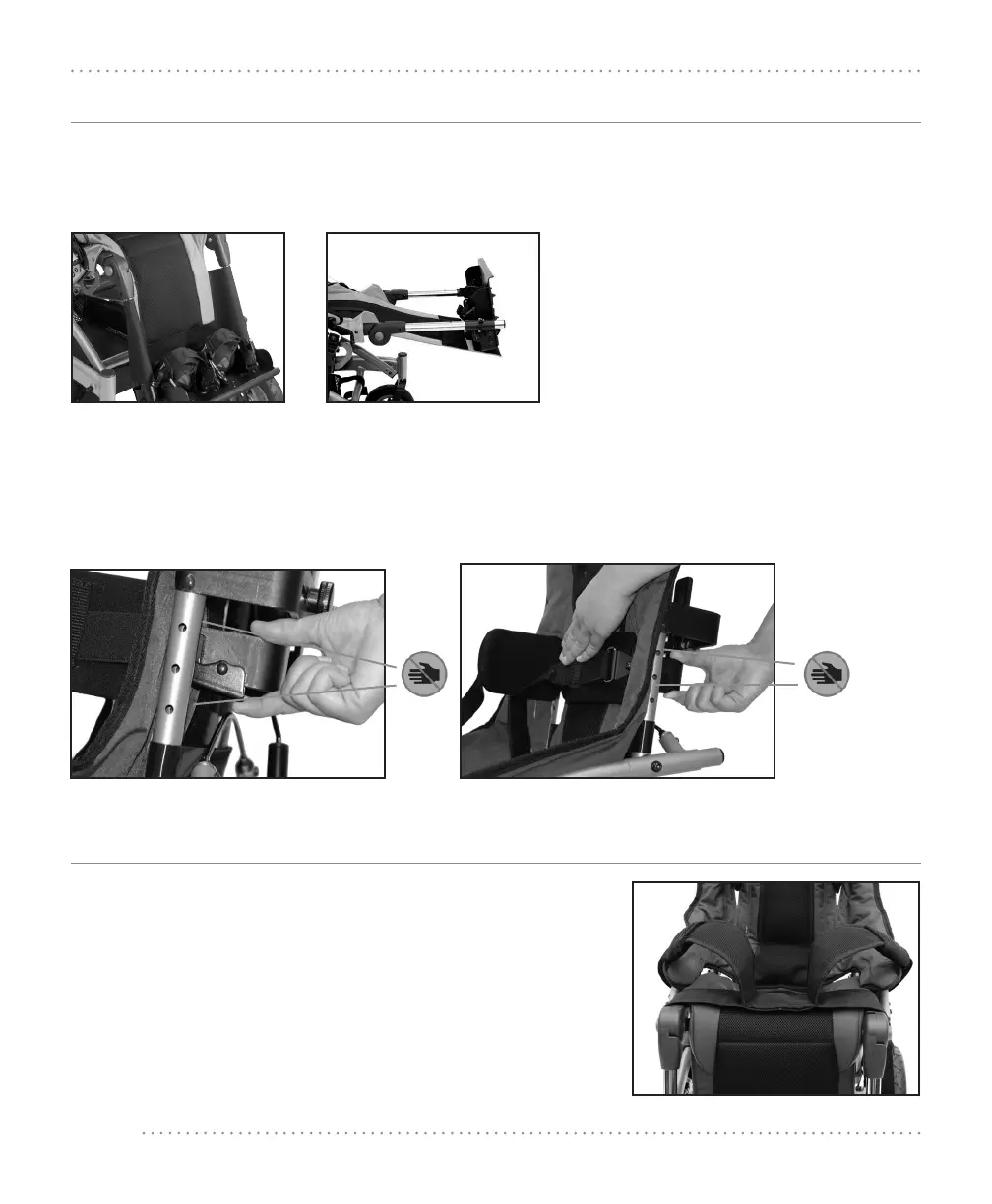

Fig. 113 Fig. 114
Elevating Leg Rest
To Adjust Height:
1. Place your hand on the grey button located at the knee joint. Fig. 113
2. Press the grey button to adjust lower extremity to design angle and release button. Fig. 114
Fig. 115 Fig. 116
Fig. 117
Fold or Swing-Away Lateral Supports
To fold or swing-out the lateral trunk supports, squeeze the latch located at the bottom of Lateral
Support Bar, and fold the pad inwards or outwards. Fig. 115 & 116. Make sure the lateral trunk
supports are folded when you fold the chair.
Medial Thigh Support (Abductor)
Separates thighs to improve hip alignment and stabilize sitting
posture. Degree of abduction can be varied and can favor one
side.
1. Wrap the abductor aps over the user’s thighs from
inside to outside.
2. Wrap straps under and around the side frame, attach to
buckle and adjust. Fig. 117
