Programming Panel
The Programming panel has the following sections:
One-Touch Analysis Keys
There are eight analysis keys (Figure 5) that allow one-
button access to a variety of control and monitoring func-
tions that appear in the LCD display. Pressing these but-
tons causes the following information to display or function
to occur:
Note: When pressing a membrane pushbutton, always press
and hold for 0.5 seconds to ensure the button press is
recognized by the device.
METERING: Displays the systems instantaneous metering
values for current and voltage on the LCD display.
RESET TARGETS: Resets the fault target indicators on the
operator panel.
EVENTS: Displays the last 25 events from the Sequence of
Events log.
LAMP TEST: All operator panel LEDs are illuminated for
verification of proper connection and operating status of all
indicator lights. All status indicators will then return to their
previous state. While in the LAMP TEST mode, the control
response to operator panel keys is disabled, except for the
TRIP (LOCKOUT), CLOSE, and HOT LINE TAG switches.
SETTINGS: Displays recloser settings on the LCD display.
OPER COUNTER: Displays the total number of trip opera-
tions and target counters for each A, B, and C Phase;
Ground, and Sensitive Ground on the LCD display.
ALARMS: Provides status information on the LCD display
for all recloser alarms.
CHANGE: Allows the user to change the state of the con-
trol functions on the operator panel function keys.
Note: The CHANGE mode is a ten second period in which one
function setting can be changed. If no change is made in
that time, the control returns to the current setting.
LCD Display
The LCD Display is a backlit 4-line, 20-character display
that provides extensive distribution system, recloser, and
control status information using a minimum of eight
navigation keypads (Figure 5).
Note: The LCD display panel contrast is field-adjustable to allow
for various mounting heights and applications. Press the
MENU key and then press the (+) or (–) key to increase or
decrease the contrast.
The four LCD navigation buttons are as follows:
MENU: Identifies the LCD Display menu options.
ENTER: Selects a menu option.
+: Increases value selection.
–: Decreases value selection.
The four LCD menu function keys activate specific menu
commands. When a command appears in the LCD display
directly above one of the four LCD menu function keys, the
user can press the key to accept/select the command.
The four LCD menu function keys are as follows:
F1 F2 F3 F4
The four cursor movement arrows allow movement in the
following directions:
Moves the cursor left.
Moves the cursor right.
Moves the cursor up one line.
Moves the cursor down one line.
S280-70-3
7
METERING
RESET
TARGETS
EVENTS
LAMP TEST
MENU
ENTER
+
—
SETTINGS
OPER
COUNTER
ALARMS
F1 F2 F3
F4
CHANGE

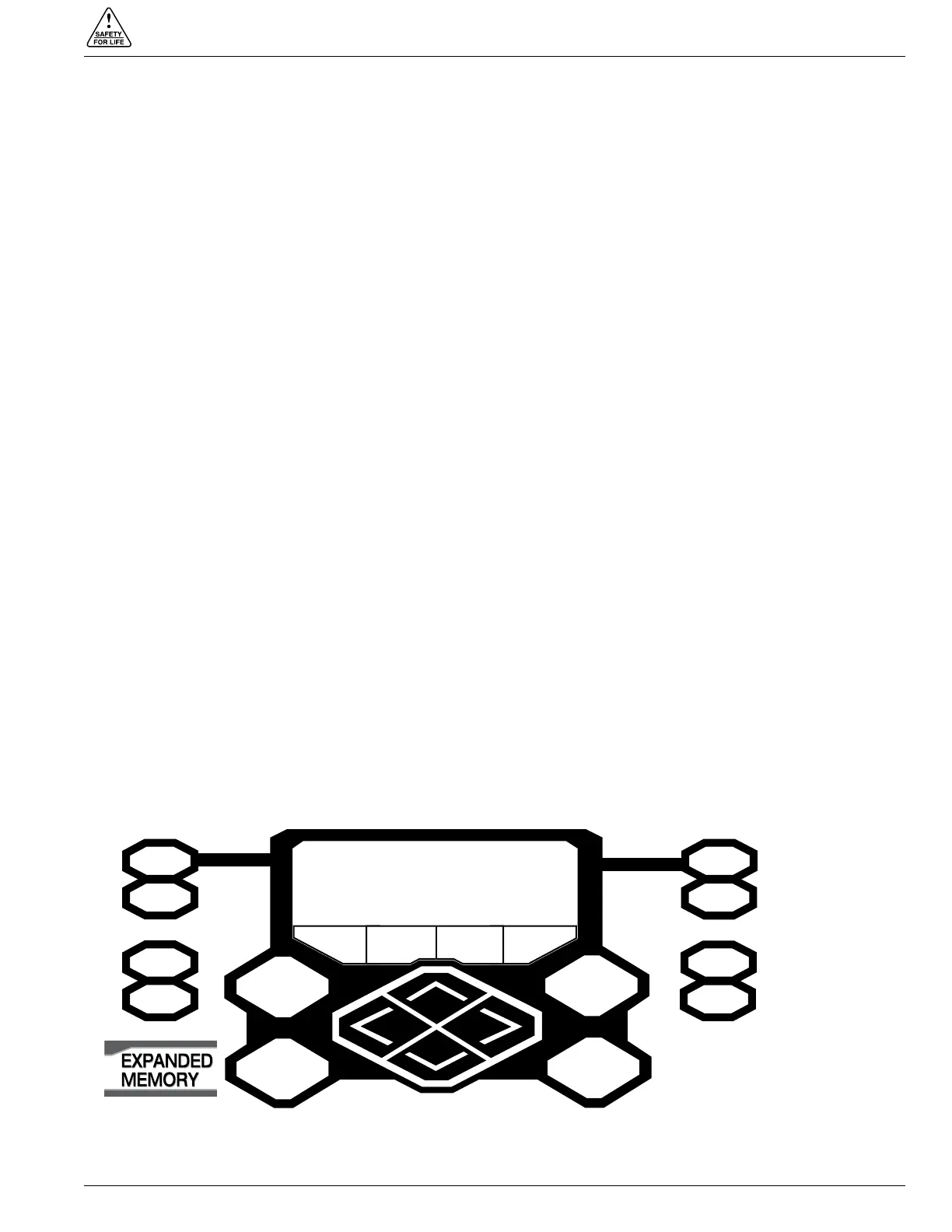

Figure 5.
Analysis keys, LCD display, LCD menu function keys, and cursor movement arrows.
