Introduction to the A.B.S. Unit

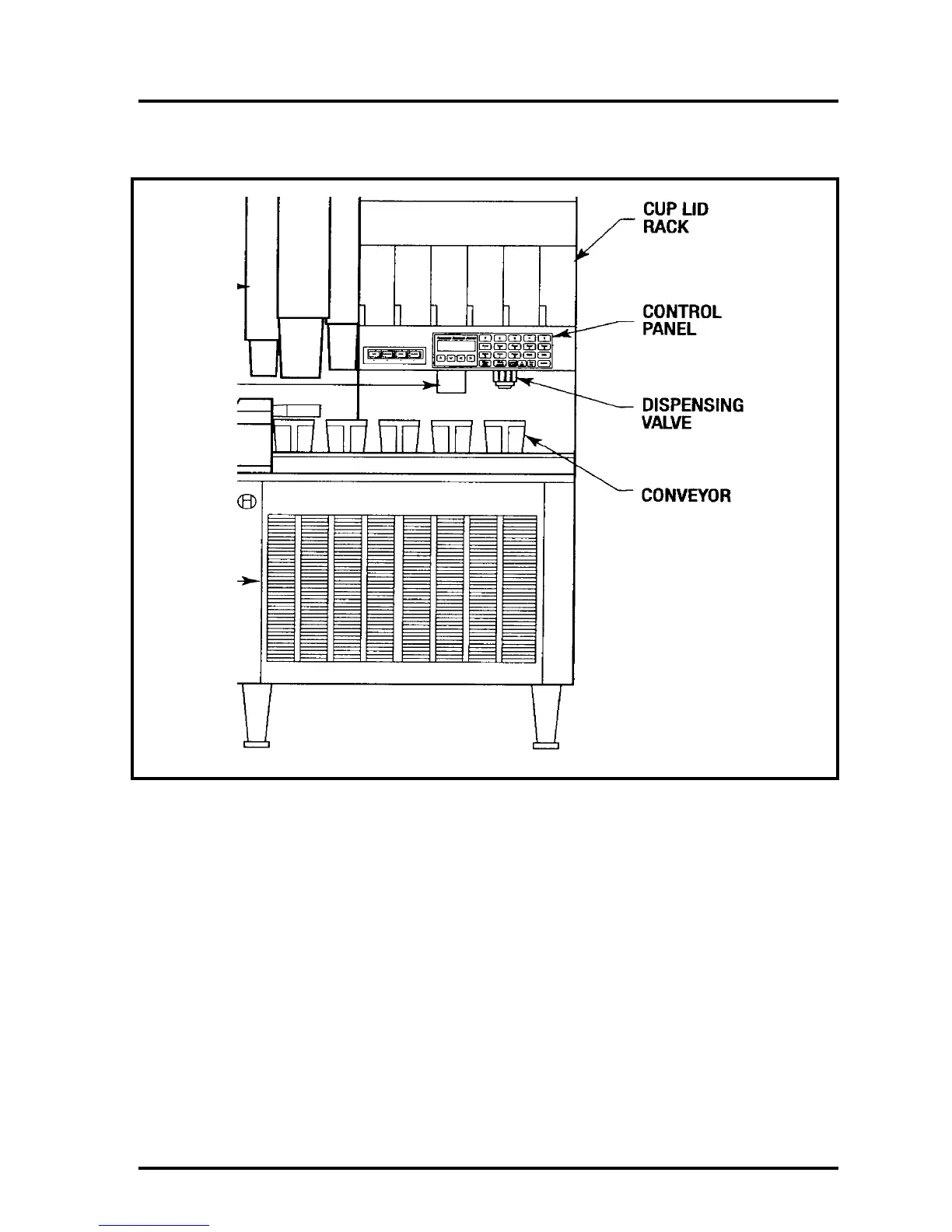

Components of the A.B.S.
• Turret
• Cup Lid Rack
• Ice Dispenser
• Control Panel
• Cup Extractor
• Conveyor
• Beverage Dispenser
• Pre-Chiller (Optional)
Major Subsystems
