Cornelius A.B.S. Unit - Conveyor Assembly; Conveyor;Cup Rest Assembly Diagram; Illustrated Parts List

Automated Beverage System
© 1999-2001 The Coca-Cola Company, Cornelius
and McDonald’s Corporation. All Rights Reserved.
Illustrated Parts List
6
Automated Beverage System —
Ref CCUSA MFG.
Number Number Number Description
1 27921 ...... 560000320Conveyor Cover
2 .............. 27922...................560000325 ..............Conveyor Assembly
3 .............. .............................560000315 ..............Cup Rest
4 .............. .............................560000306 ..............Drip Tray Assembly

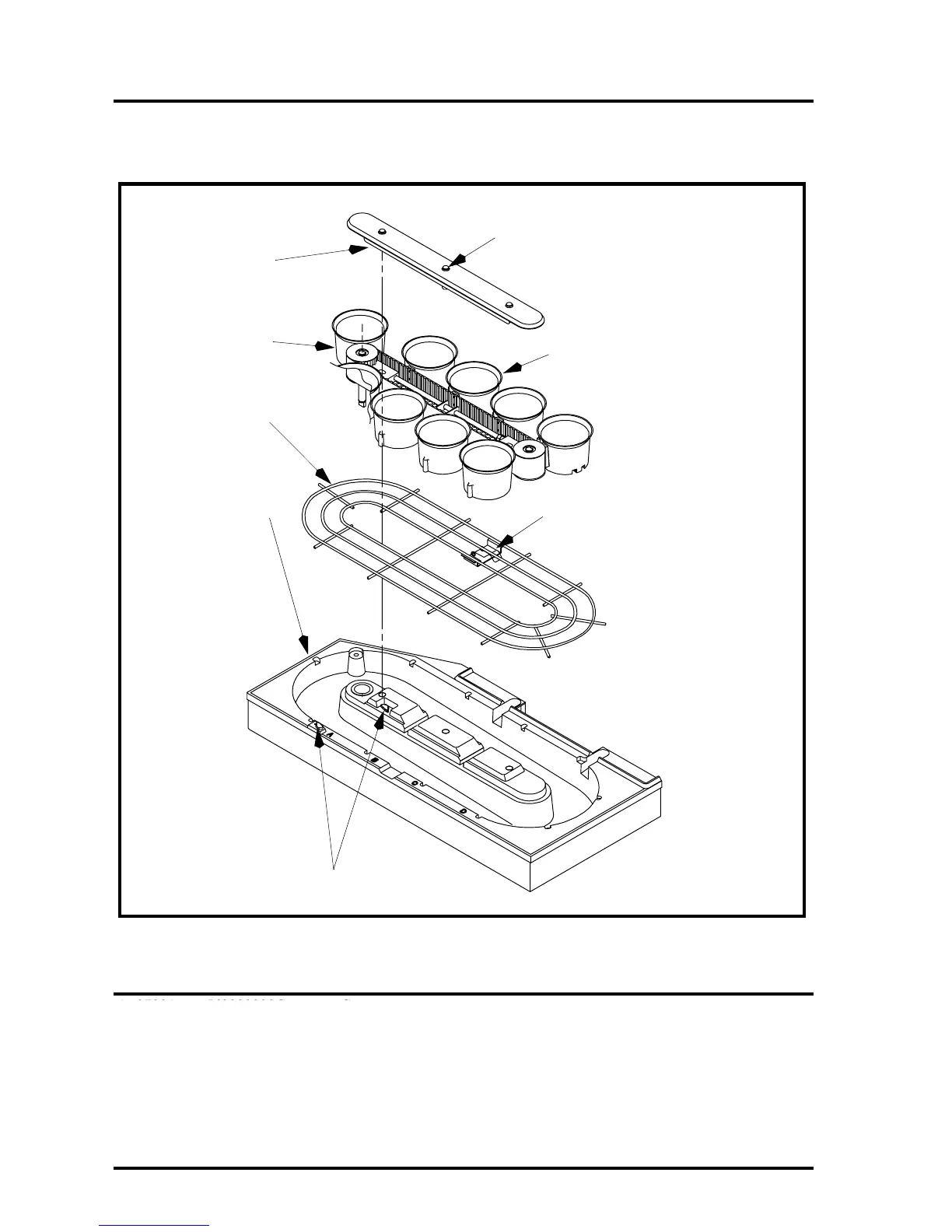

Conveyor/Cup Rest Assembly Diagram
1................27921...........560000320...... Conveyor Cover
2................27922...........569000295...... Conveyor Assembly
3................ .....................560000315...... Cup Rest
4................ .....................560000306...... Drip Tray Assembly
Conveyor Assembly
1
2
3
4
POSITION “A” SENSOR
CUP POSTIONING BRACKET
CUP HOLDER
THUMB SCREWS
