Cornelius A.B.S. Unit - Reinstall Conveyor; Cup in Position “A”; Cup Positioning Bracket

Automated Beverage System
© 1999 The Coca-Cola Company, Cornelius and
McDonald’s Corporation. All Rights Reserved.
32

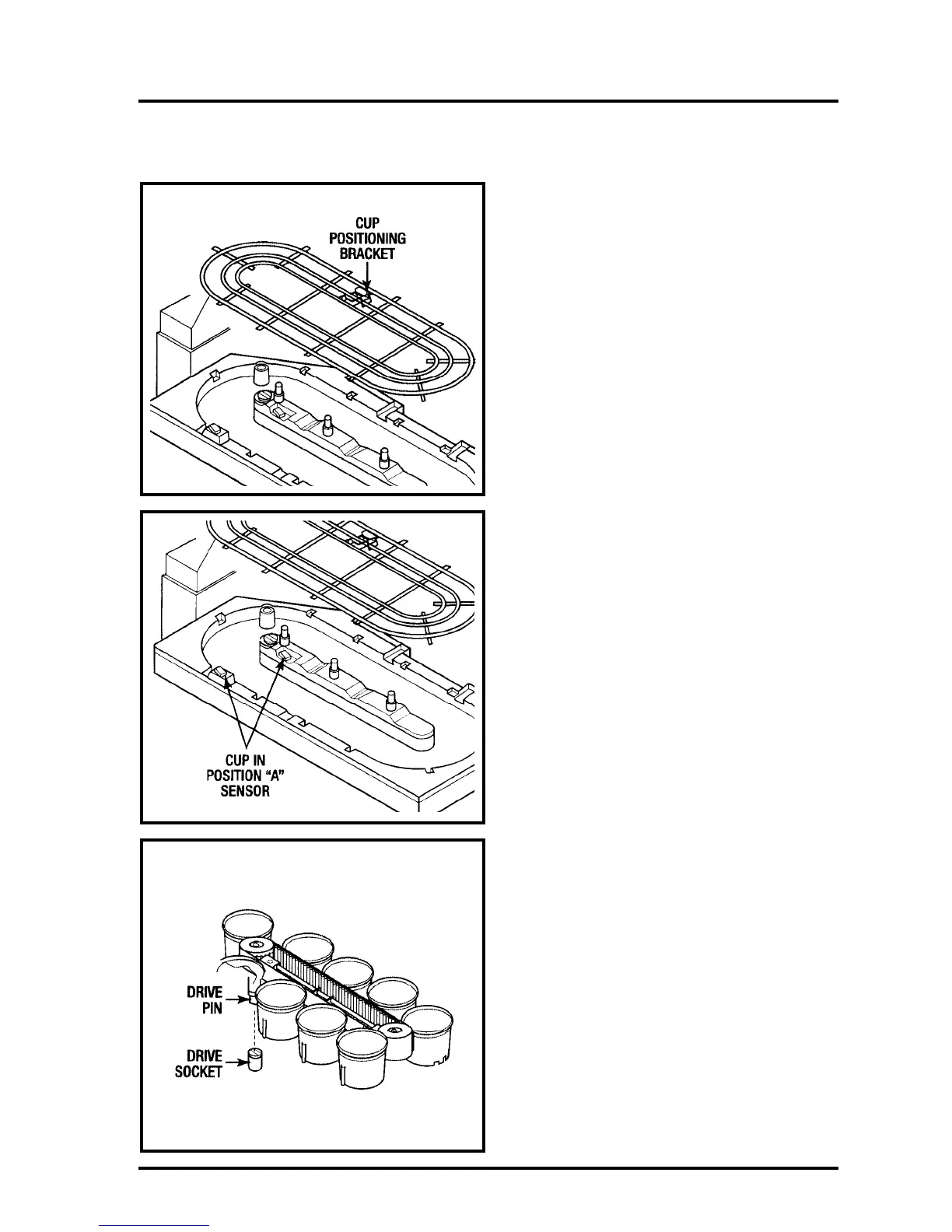

Cup Positioning Bracket
The cup positioning bracket, located on the
cup rest, contains a spring that is positioned so
it touches the cup in the cup holder as the cup
moves past the spring. This moves the cup to
the rear (based on the direction of movement)
of the cup holder. This insures that all cups
will be in the same position for dispensing
regardless of its size.
Cup In Position “A”
Part of the conveyor assembly is the cup in
position “A” sensor. This senses if a cup is in
the last conveyor position to prevent full cups
from traveling into the grabber mechanism.
Reinstall Conveyor
Align the drive pin on the left side of the con-
veyor assembly so that the conveyor seats
properly. The conveyor drive pin must engage
the drive socket on the gear box. When install-
ing the conveyor, it may be necessary to move
the conveyor manually to allow the drive pin
to insert into the drive socket.
Tighten the thumb screws on the cover.
A.B.S. unit Major Subsystems Operation —
Conveyor
