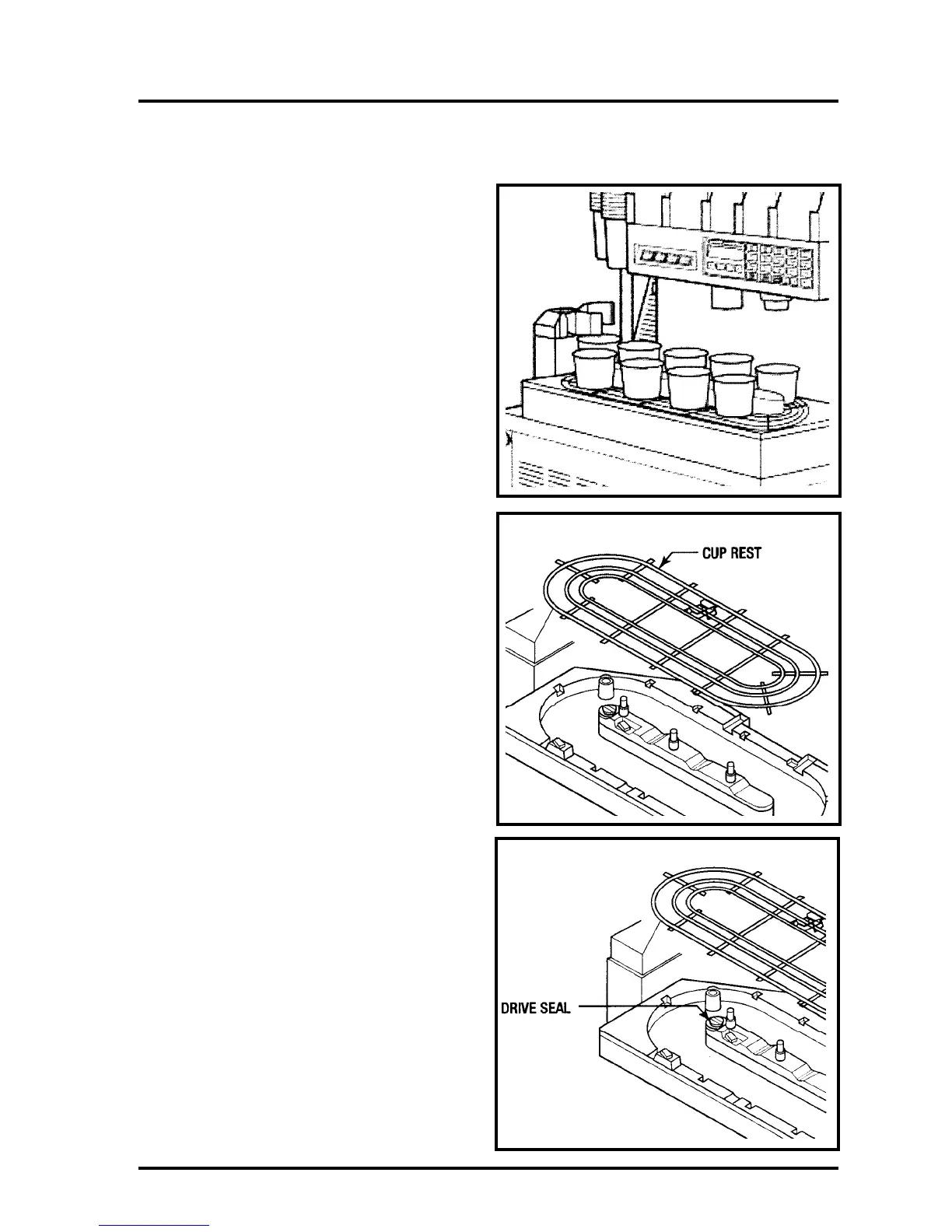

Conveyor
The conveyor contains nine equally spaced
cup holders. Each cup holder contains a
ceramic magnet. A sensor located in the drip
pan at the cup grabber detects the cup holders
and thereby controls the movement of the
conveyor and the position of the cup holders.
Note: The conveyor will not operate if there is
a cup or any obstruction in the cup holder at
Cup Serve
Point “A.”
Cup Rest
The cup rest must be installed with the oval
rails up and with the “Cup Positioning
Bracket” must be at the rear of the drip tray.
Drive Seal
Check to see drive seal is installed properly.
