Automated Beverage System
© 1999 The Coca-Cola Company, Cornelius and
McDonald’s Corporation. All Rights Reserved.
26
A.B.S. Unit Major Subsystems

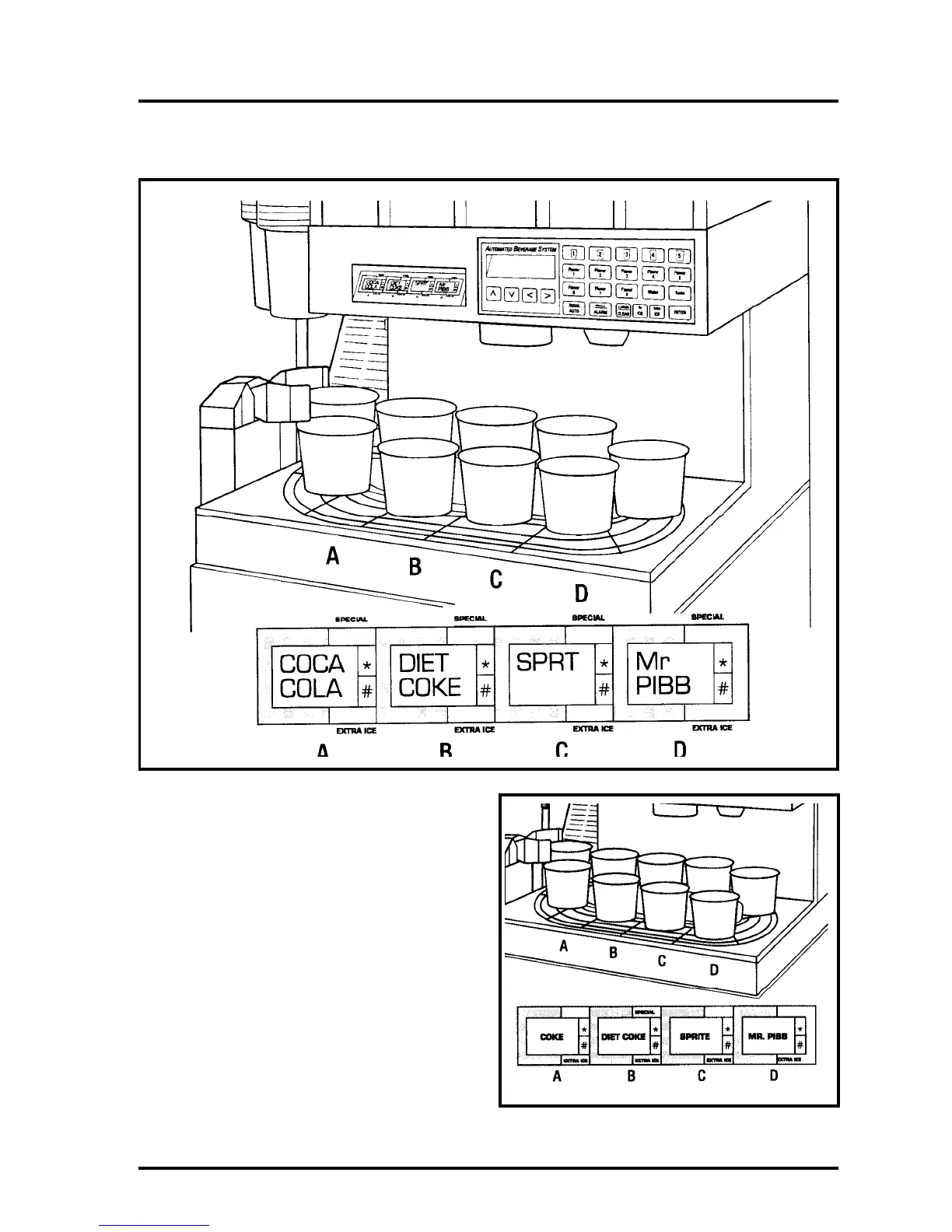

Control Panel, Drink Position
Drink Position Display
The Drink Position Display corresponds to
the four drink pickup positions on the con-
veyor. As a drink moves to position “D” on
the conveyor, the details of the drink are dis-
played.
