Cornelius A.B.S. Unit - Cup Tube Components Diagram

Automated Beverage System
© 1999-2001 The Coca-Cola Company, Cornelius
and McDonald’s Corporation. All Rights Reserved.
Illustrated Parts List
8
Automated Beverage System —
Ref CCUSA MFG.
Number Number Number Description

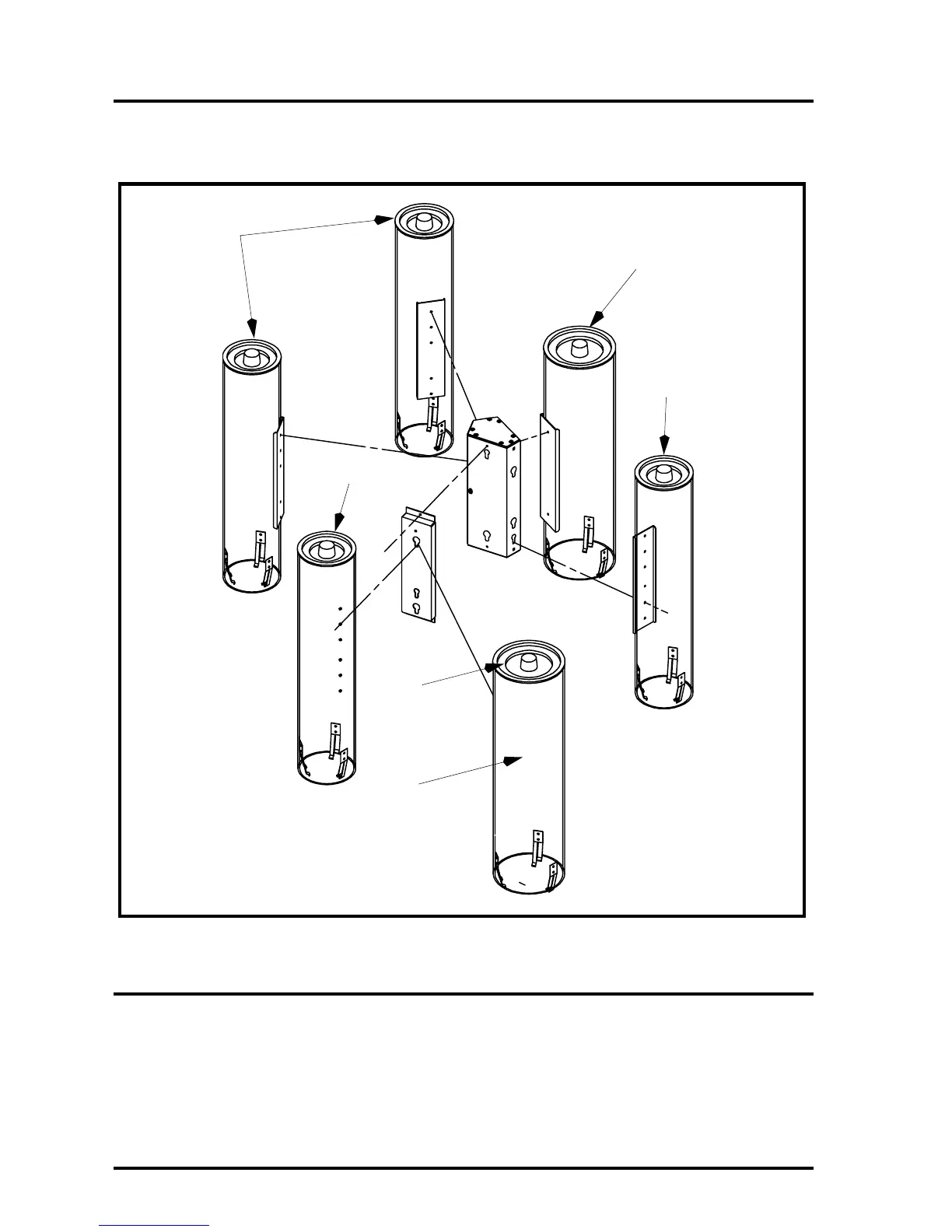

Cup Tube Components Diagram
1..............27916 ..........560000207 .......5” Cup Tube Cover (32 - 42 oz.)
2..............27915 ..........560000206 .......4” Cup Tube Cover (12 - 21 oz.)
3..............28377 ..........569000199 .......42 Oz. Cup Tube Kit
N/R .........28373 ..........569000172 .......12 Oz. Cup Tube Assembly Kit (Austrailian “Small” size)
N/R .........28374 ..........569000173 .......16 Oz. Cup Tube Assembly Kit (Austrailian “Medium” size, station 3)
N/R .........28375 ..........569000174 .......21 Oz. Cup Tube Assembly Kit (Austrailian “Large” size, station 1)
N/R ......... ....................569000175 .......32 Oz. Cup Tube Assembly Kit
N/R ......... ....................569000159 .......21 Oz. Cup Tube Assembly Kit (Austrailian “Large” size, station 2)
N/R ......... ....................569030035 .......Medium Cup Tube Assembly Kit Station 5, (Australian ABS only)
Cup Tube Assembly
1
2
3
2
2
1
