Cornelius A.B.S. Unit - Ice bin Components Diagram

Automated Beverage System
© 1999-2001 The Coca-Cola Company, Cornelius
and McDonald’s Corporation. All Rights Reserved.
Illustrated Parts List
9
Automated Beverage System —
Ref CCUSA MFG.
Number Number Number Description

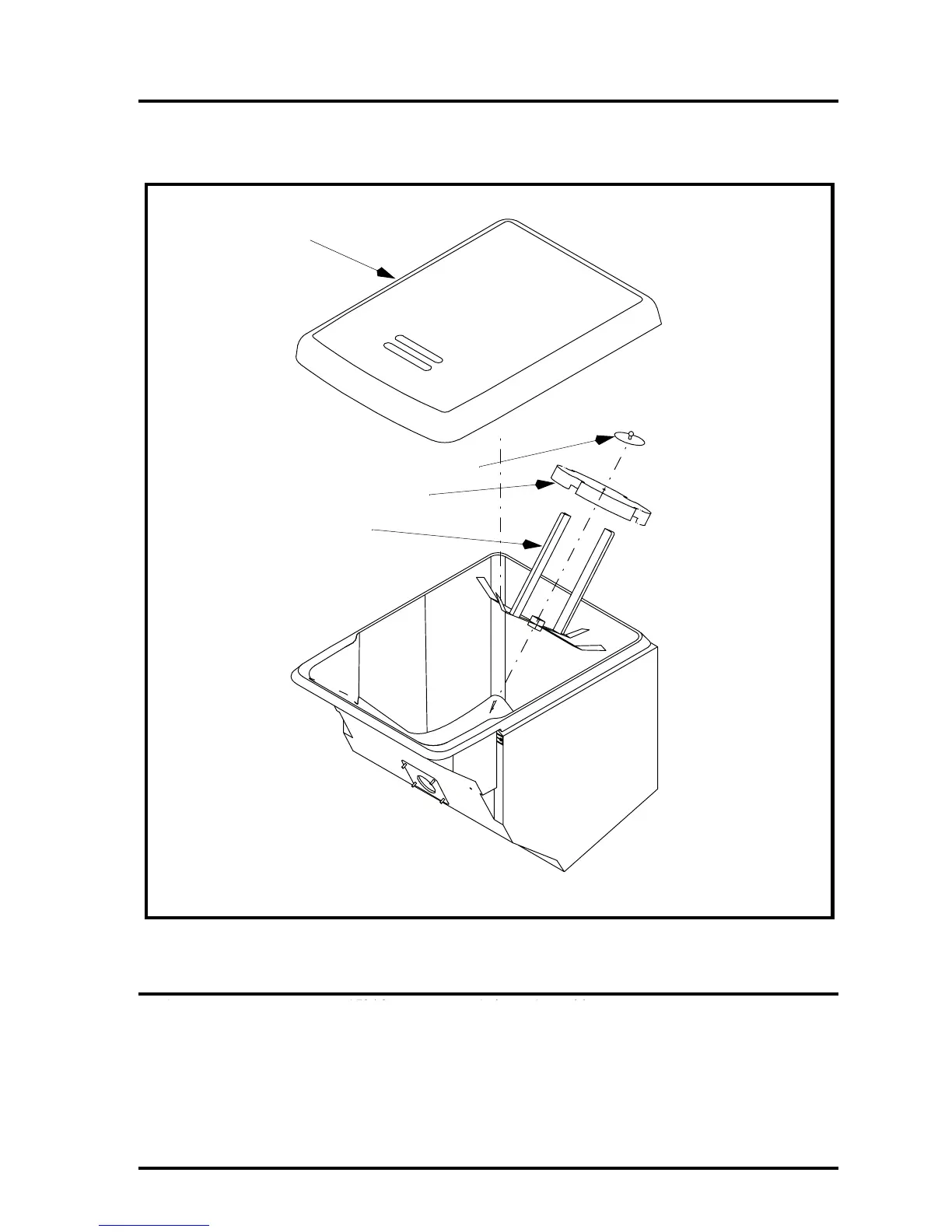

Ice Bin Components Diagram
1 ............... ............................15346 ......................Agitator Assembly
2 ............... ............................52887 ......................Lid
3 ............... ............................53227 ......................Disk
4 ............... ............................15087 ......................Agitator Retainer
1 .............. 15346................................ Agitator Assembly
2 .............. 52887................................ Lid
3 .............. 53227................................ Disk
4 .............. 15087................................ Agitator Retainer
Agitator Assembly
1
3
2
4
