Cornelius A.B.S. Unit - Ice Chute Assembly Components Diagram

Automated Beverage System
© 1999-2001 The Coca-Cola Company, Cornelius
and McDonald’s Corporation. All Rights Reserved.
Illustrated Parts List
7
Automated Beverage System —
Ref CCUSA MFG.
Number Number Number Description

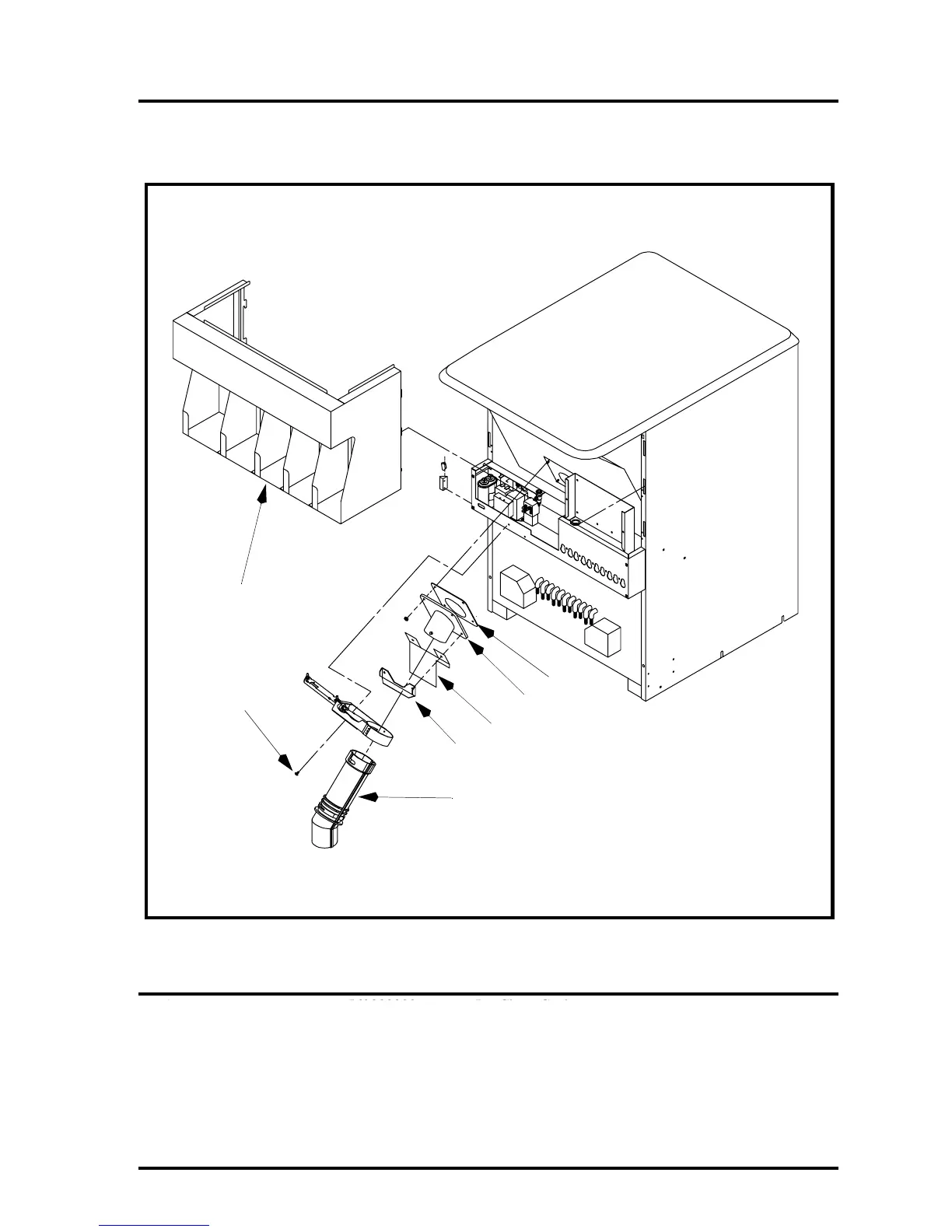

Ice Chute Assembly Components Diagram
1 ............... ............................560000392 ..............Ice Chute Gasket
2 ............... ............................560000344 ..............Ice Chute Mounting Plate
3 ...............27926 ..................560000346 ..............Ice Chute
4 ............... ............................560002728 ..............Ice Chute Stiffener
5 ............... ............................560000398 ..............Machine Screw, Phillips Truss Head, No. 8 x .5”
6 ............... ............................560001548 ..............Ice Chute Shield
7 ............... ............................620014801 ..............Lid Holder Assembly
8 ...............28076 ..................560001589 ..............Ice Chute Cleaning Brush
1 ................ ...................560000392.....Ice Chute Gasket
2 ................ ...................560000344.....Ice Chute Mounting Plate
3 ................ 27926.........560000346.....Ice Chute
4 ................ ...................560002728.....Ice Chute Stiffener
5 ................ ...................560000398.....Machine Screw, Phillips Truss Head, No. 8 x .5”
6 ................ ...................560001548.....Ice Chute Shield
7 ................ ...................620014801.....Lid Holder Assembly
8 ................ 28076.........560001589.....Ice Chute Cleaning Brush (Not Shown)
Ice Chute Assembly
1
2
3
6
5
4
7
