Single Board Computer

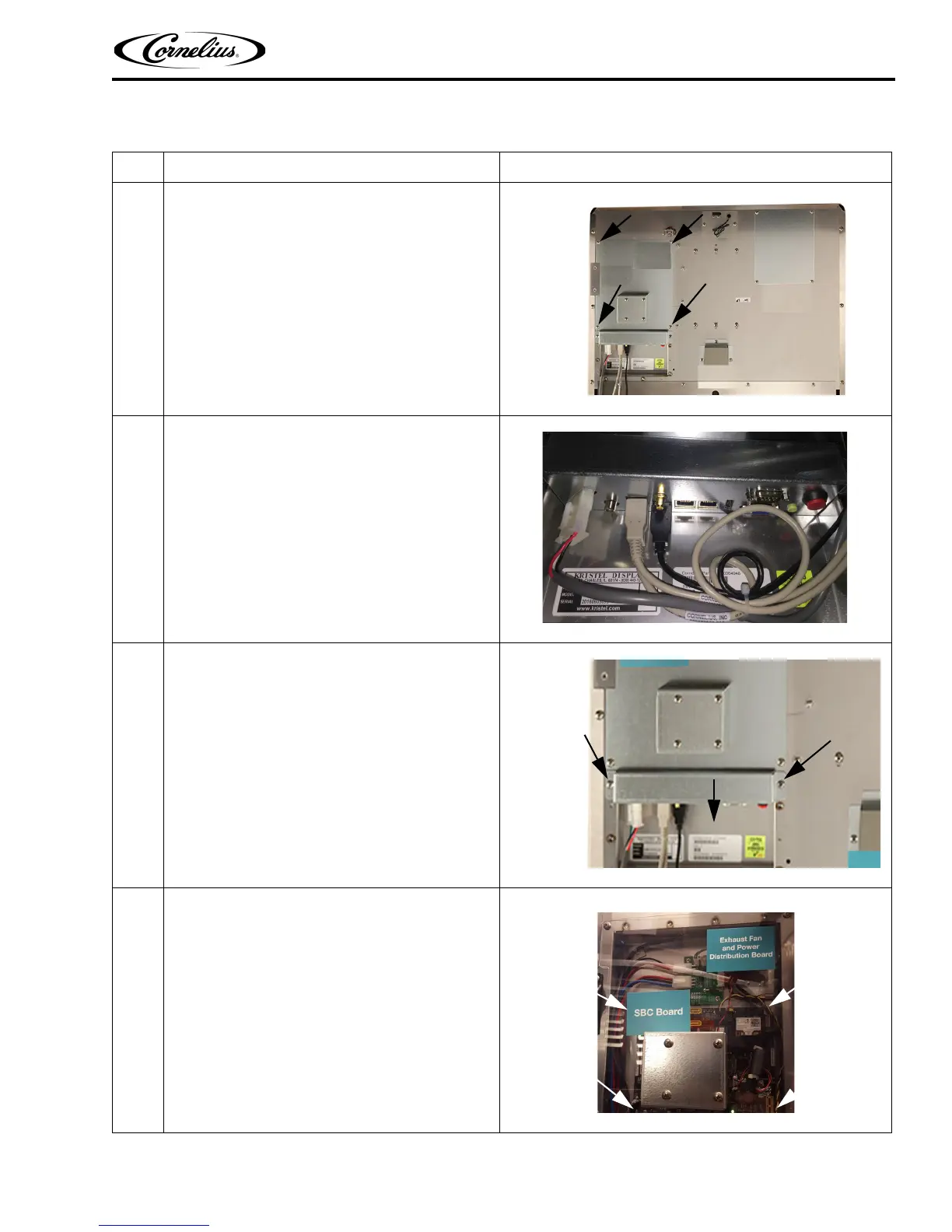

Table 8.
Step Action
1
Remove the single board computer cover by
unscrewing the four screws.
NOTE: The fan connection will be on the
board.
Figure 22.
2 Disconnect all the harness connected to the board.
Figure 23.
3
Unscrew the two screws and pull the sheet metal
block towards downward.
Figure 24.
4
Unscrew the screw from all the four corners and
take the single board out.
Figure 25.
