SPLASH PANEL REMOVAL
Table 11.
ICE CHUTE REMOVAL
Table 12.
Step Action
1

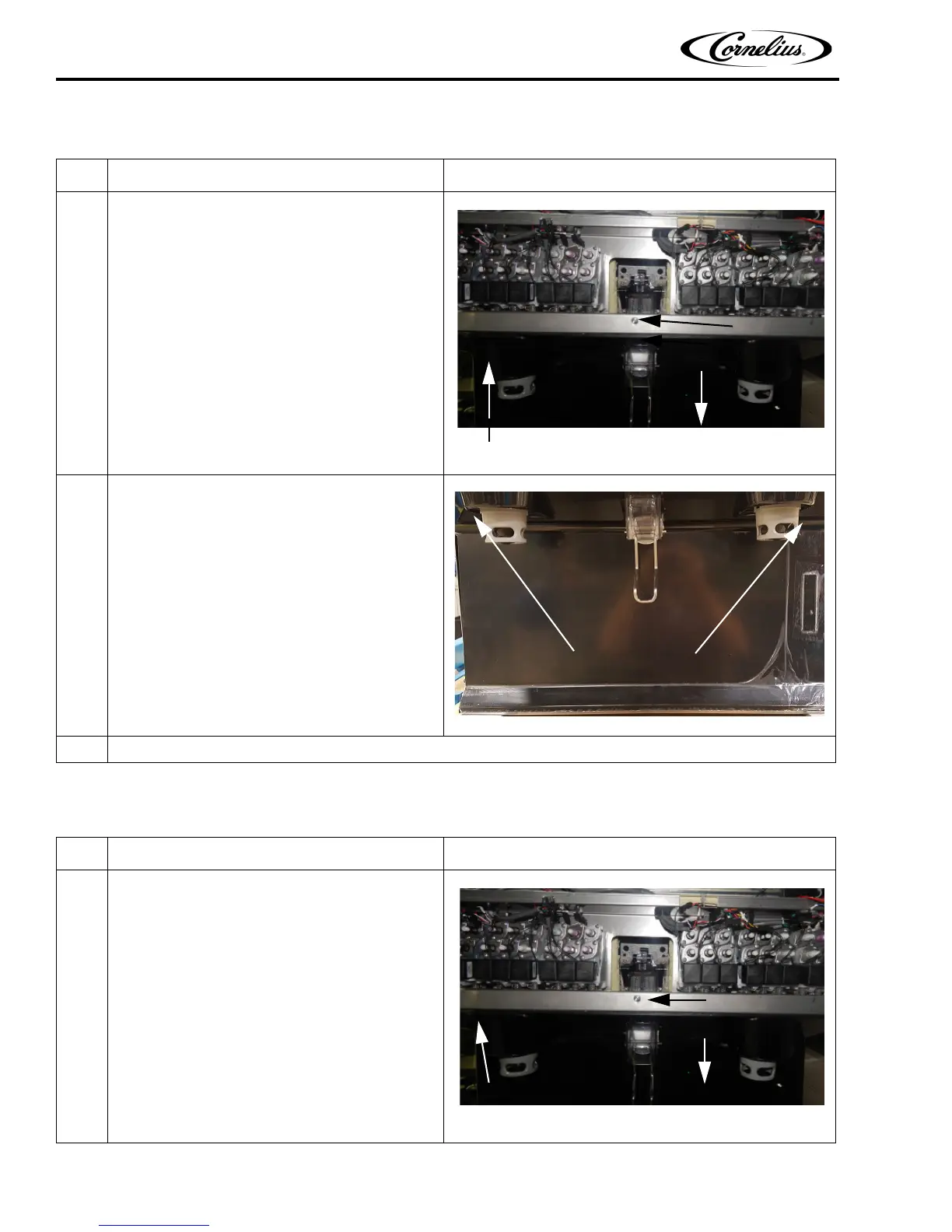

Open the display panel and remove the
thumb-screw holding the upper splash
panel as shown in Figure 31 and pull the
panel forward and down to remove it.
Figure 31.
2
Loosen the two screws from the top two
corners of the splash panel as shown in
Figure 32, slide the panel upward to dis-
engage the two bottom tabs and pull the
splash panel forward to remove it.
Figure 32.
3 Replace the splash panels onto the unit.
Step
Action
1
Open the display panel and remove the
thumbscrew holding the upper splash
panel as shown in Figure 33 and pull the
panel forward and down to remove it to
gain access for Ice chute.
Figure 33.
Upper Splash panel
SCREW
Pull downwards
MOUNTING SCREW
Screw
Upper Splash panel
Pull downwards
