Cornelius IDC PRO 255 - Connecting Product to the Unit; Water & Syrup Line Connections

IDC Pro 255 Service Manual
© 2016, Cornelius Inc. - 19 - Publication Number: 621058649SER
CONNECTING PRODUCT TO THE UNIT
The unit must have a product supply connected to each inlet on the valve. Refer to the “Plumbing Diagram” section
on page 40 for details of the hook-up.
NOTE: All inlet connections are clearly marked with a label adjacent to the inlet connections.

Always check for leaks on all connections.
WATER & SYRUP LINE CONNECTIONS
The standard unit supports the following:
• 1-water line from carbonator/chiller
• 1-water line for non-carbonated drinks
• 20-Syrup lines
• 8-Flavor Shots
2

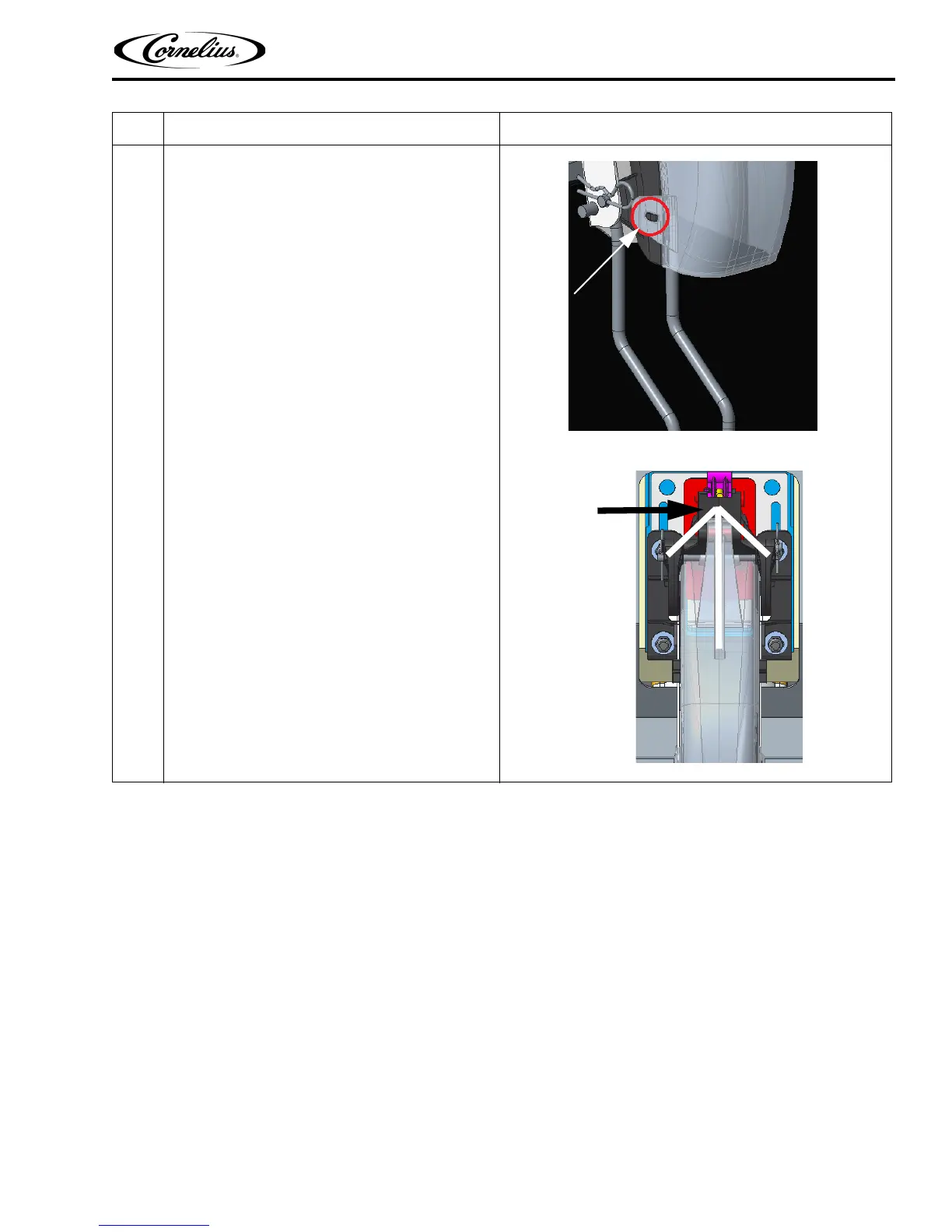

Release locking tabs outward on both the
side as shown in Figure 34.Then lift chute
upwards to remove as shown in Figure
35.
NOTE: Make sure the pin of ice gate is
through the hole of the encapsulated
magnet. Screen door should be
closed to test operation.
Figure 34.
Figure 35.
Step
Action
Lift the entire sub
assembly as
indicated
