USING THE DISPENSER
- 34 -
COROB™ D600 - D700 - D800TX

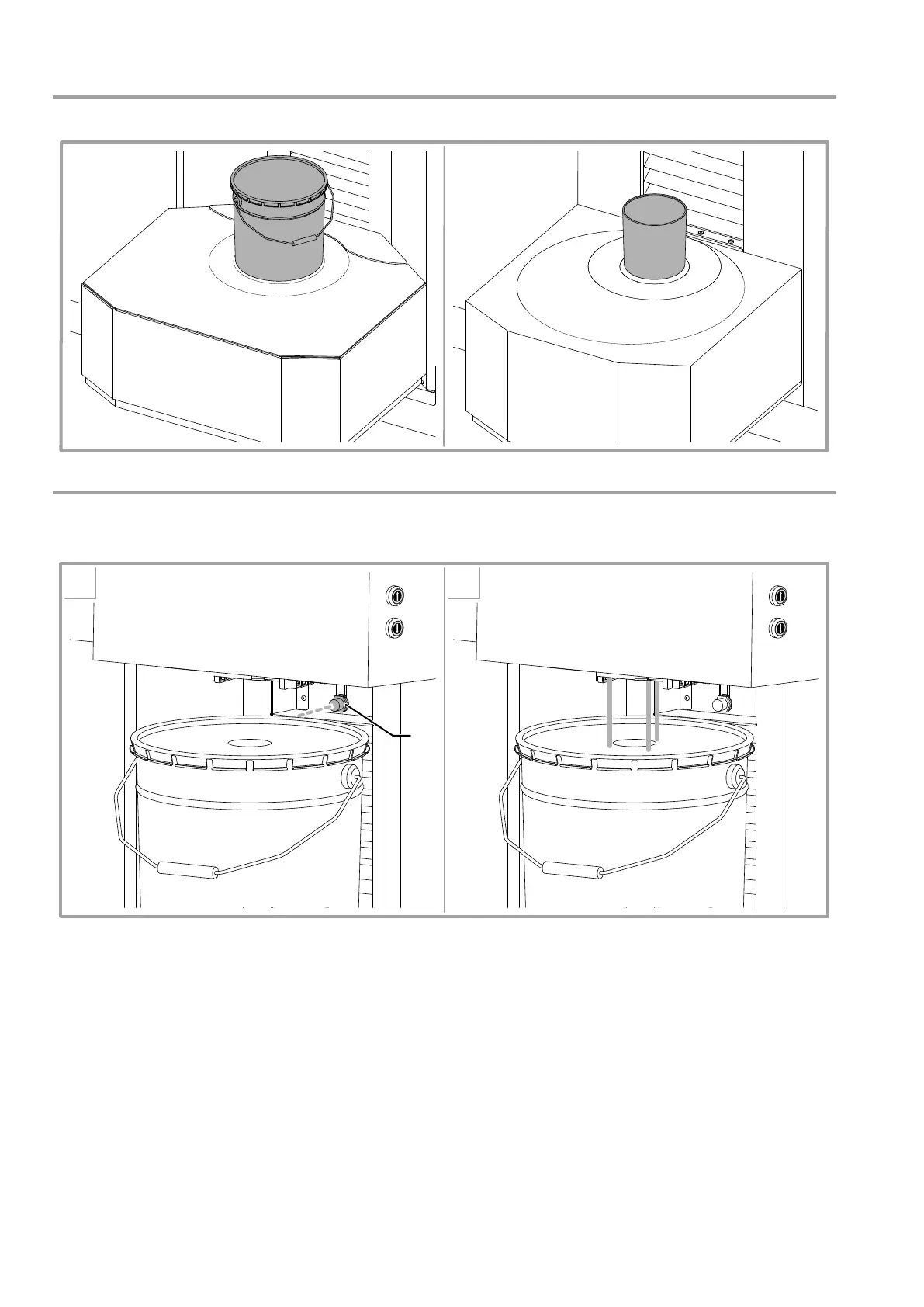

6.3.4 Use of the can centering device
Place the can in the centering ring of the suitable diameter.
6.3.5 Use of the Bung Hole Locator
1. After having correctly positioned the can so as to obscure photocell A, the laser beams will switch on.
2. Position the can in such a way that the hole on the lid is in the center of the laser beams.
1 2
A
