ORDINARY MAINTENANCE
- 45 -
COROB™ D600 - D700 - D800TX
7.7 Checking and replacing the puncher
DANGER
TO PERFORM THIS OPERATION YOU MUST WEAR CUT-PROOF GLOVES.
8 mm

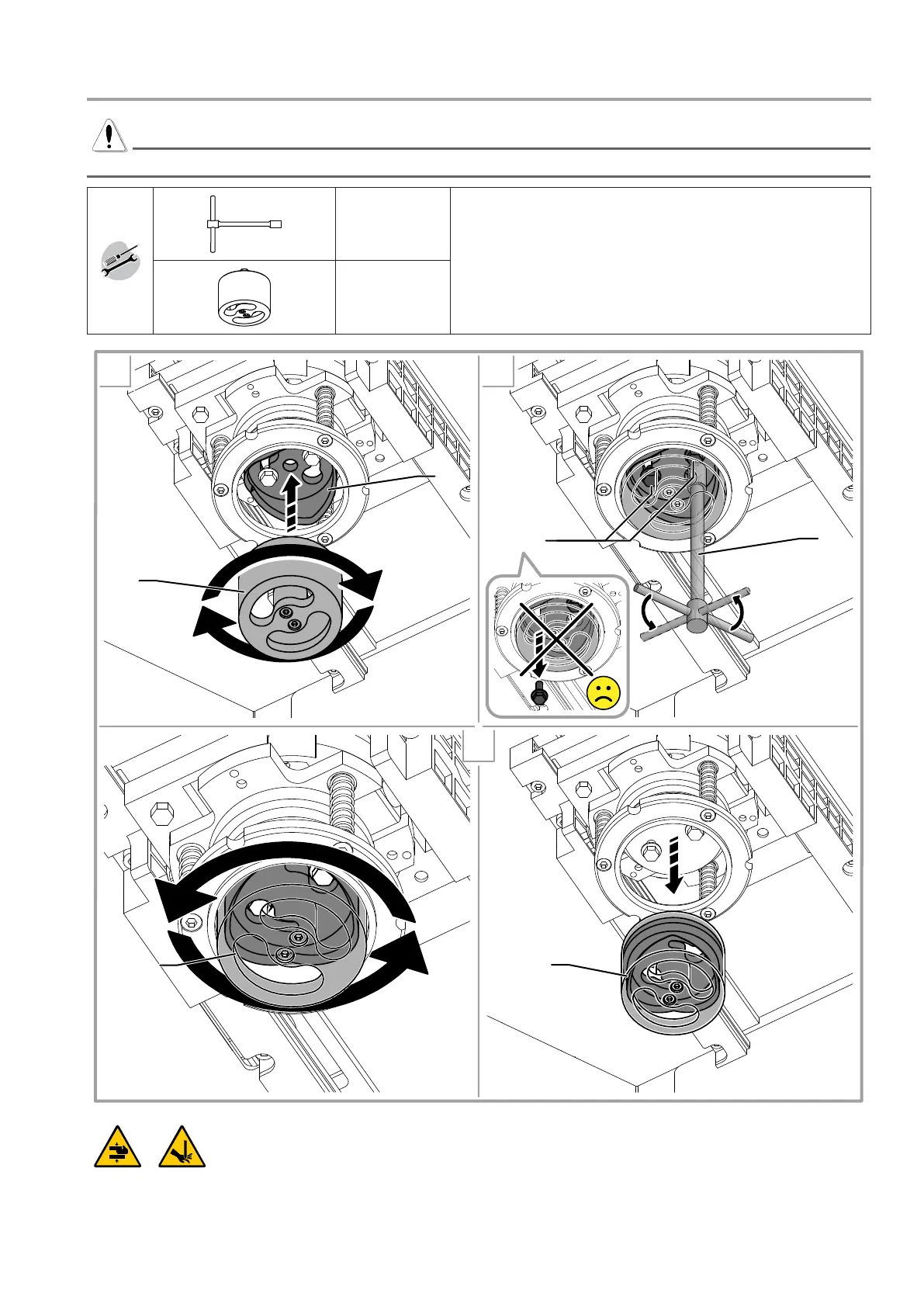

To remove the puncher
1. Disconnect power supply (chapter 5.6).
2. Screw tool A to puncher B.
3. Insert wrench C in the tool slots and slightly loosen screws D (do not unscrew them completely).
2 3
4
Dx2
A
B
C
A+BA+B
