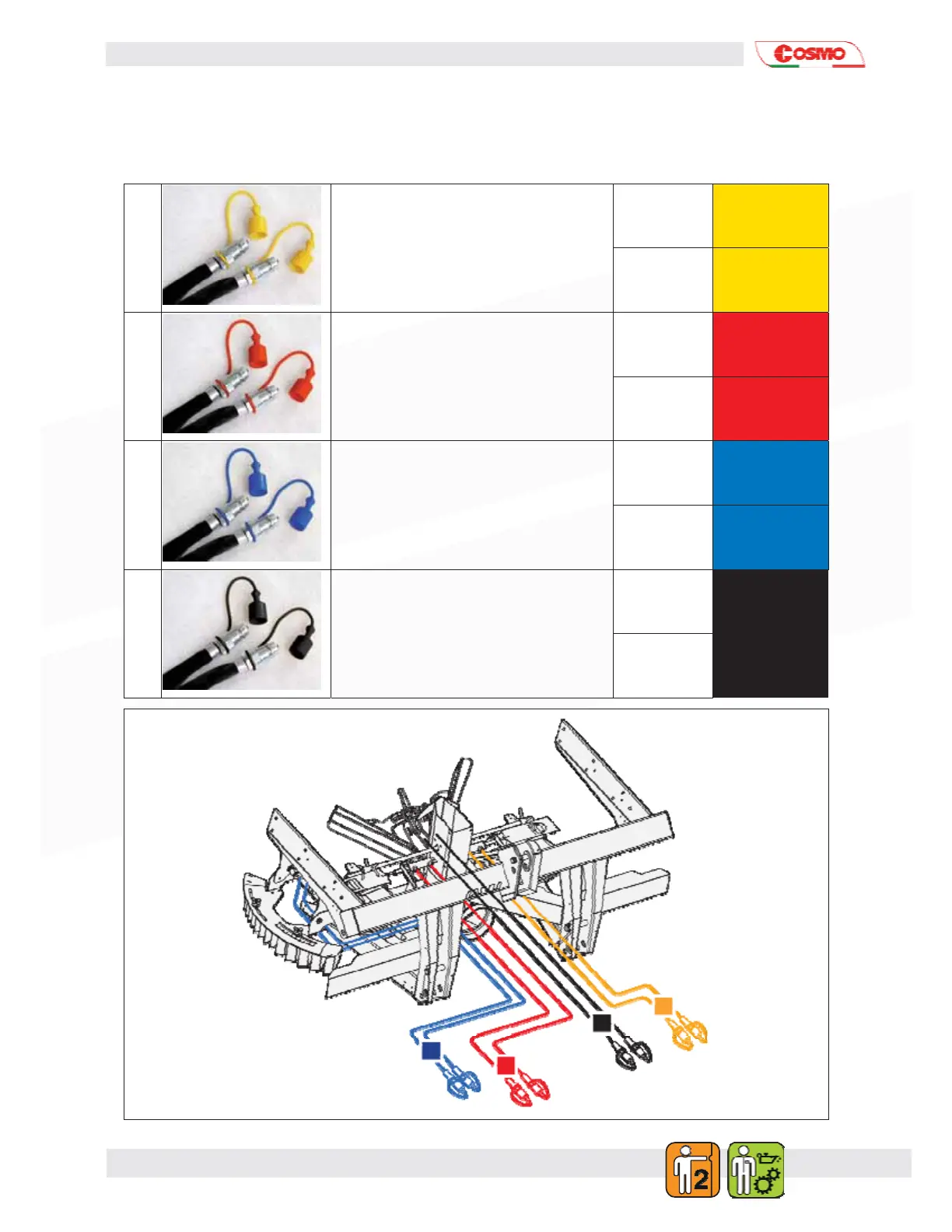

5.2.3. HYDRAULICCONNECTIONS

All hydraulic hoses have coloured markings so as to associate the corresponding hydraulic function with the outlet tube from a
hydraulicdivertervalveonthetractor.




A



HYDRAULICOPEN/CLOSECONTROL
Gaterightside

Open

YELLOW

Close

YELLOW



B



HYDRAULICOPEN/CLOSECONTROL
Gateleftside

Open

RED

Close

RED



C 



MOBILEFOCUSER
(Optional)

Open

BLUE

Close

BLUE



D



CENTRALMOBILEFOCUSER
(Optional)

Open

BLACK 

Close

BLACK 
5-11























A 
D 

C 
B
05‐HANDLINGANDINSTALLATION
