Helm control head (single outboard)
Helm control head (two or more outboards)

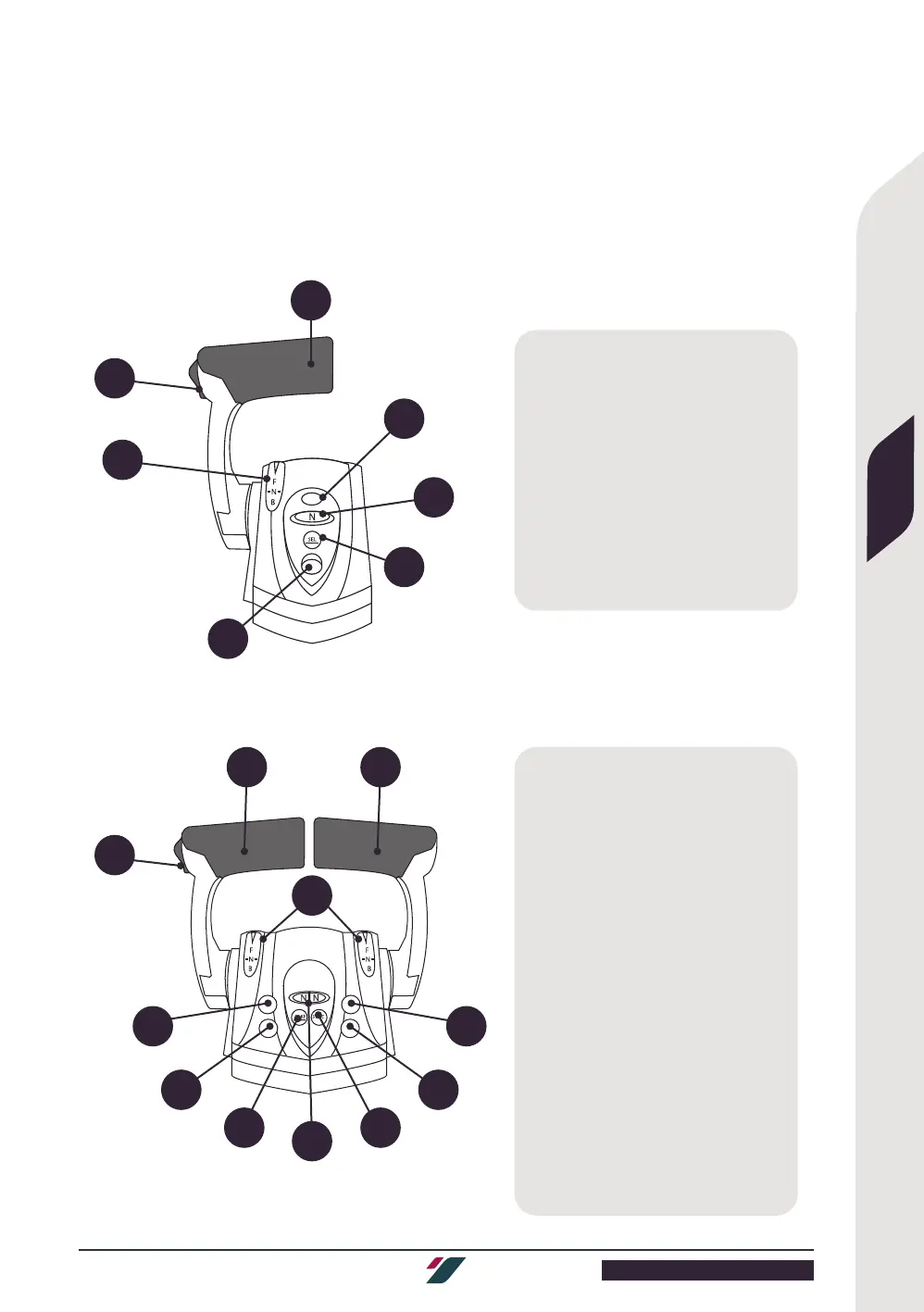

 Figure: Single outboard
control head
1 Control lever
2 Tilt-trim switch
3 Gear position indicator
4 Neutral warm-up or troll mode
5 Activate control head
6 Station active indicator lamp
7 Indicator lamp
 Figure: Twin (or more)
outboard control head
1 Port side control lever
2 Starboard side control lever
3 Simultaneous trim-tilt switch
4 Gear position indicators
5 Cycle neutral warm-up or
trolling mode
6 Take command from
another helm
7 Single lever control for
multiple outboards
8a Indicator lamps
8b Indicator lamps
9 Take command indicator lamp
10 Single lever control
indicator lamp
