OPERATOR’S MANUAL
25
SECTION 1
Options Available
Add a new Round
Edit a Round
Delete a Round
Note: rounds completed or in progress cannot be deleted
or edited.
The following icons will appear next to the the Round number
to indicate the status of the Round.
= Round in progress.
= Round has been completed.
ADDING NEW ROUNDS TO LIST
To add a new round
Key in the name for the round at the prompt and ENTER.
Select the description field.
Use the alpha-numeric keys to enter the round description
and ENTER.

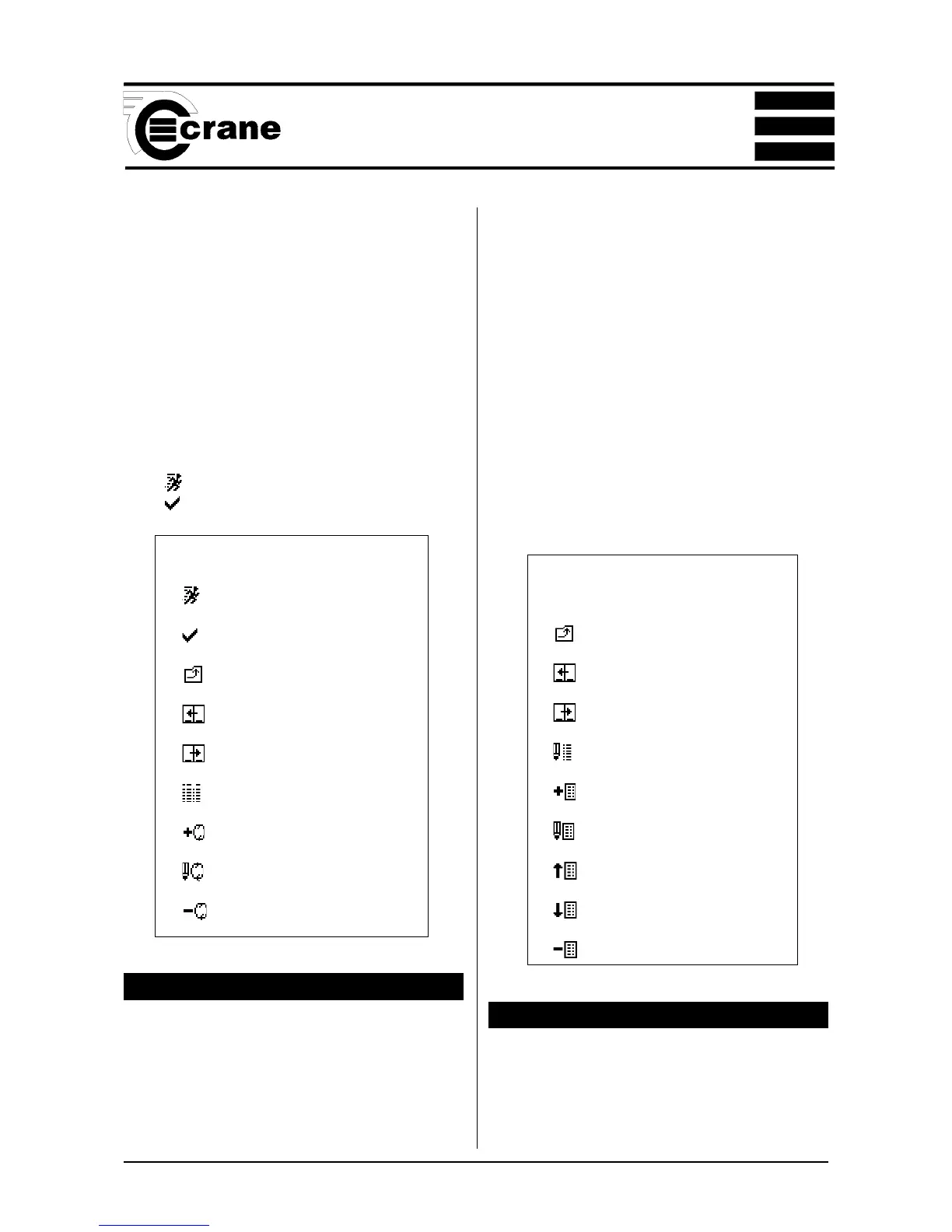

Icons used in the Rounds Menu
Job in progress
Job completed
Return to previous screen.
Previous page
Next page
View Round
Add Round
Edit Round
Delete Round
TRANSDUCER TEMPLATES
The TorqueStar Opta has 9 preset transducer templates
which are editable by the user. This can be selected by the
user in Jobs mode if the transducer is non UTA and therefore
not recognised by the Opta.
Select the Sampling field.
Select the required sampling option from the list .
Options are; In any order, Vertical, Horizontal, Vert.
plus prompt, Horiz. plus prompt.
To add a Job to the Round.
Select add a new Job.
Select the required job from the list.
Continue this process until you have selected all the required
jobs for the round.
To save the round.
Opta will prompt ‘Add round to list?’
ENTER to accept or CANCEL to skip without saving.
Icons used in the Rounds
Setup
Return to previous screen.
Previous page
Next page
Edit Round
Add Job
Edit Job
Move job up list
Move job down list
Delete Job
