Cray ClusterStor L300 - 16.3.2 ClusterStor L300 and L300 N MMU Physical and Logical Port Numbering

Physcial Port Label Logical Port Connection
Onboard NIC 2 2
meth1
Secondary local management network (LMN) SW1
port for management and IPMI
Onboard NIC 3 3 Unused Unused
Expansion card,
NIC 4 (MGMT nodes)
4
pub1
Customer network.
Expansion card,
NIC 5 (MGMT nodes)
5
pub0
Customer network. The main connection for
management GUI and/or CLI
Host Fabric A1, A2, B1,
B2
LDN I and II Data network connections
SAS ports A, B, SAS connections (12Gbit/s)
16.3.2 ClusterStor L300 and L300N MMU Physical and Logical Port Numbering
ClusterStor L300 and L300N MMU physical and logical port numbering.

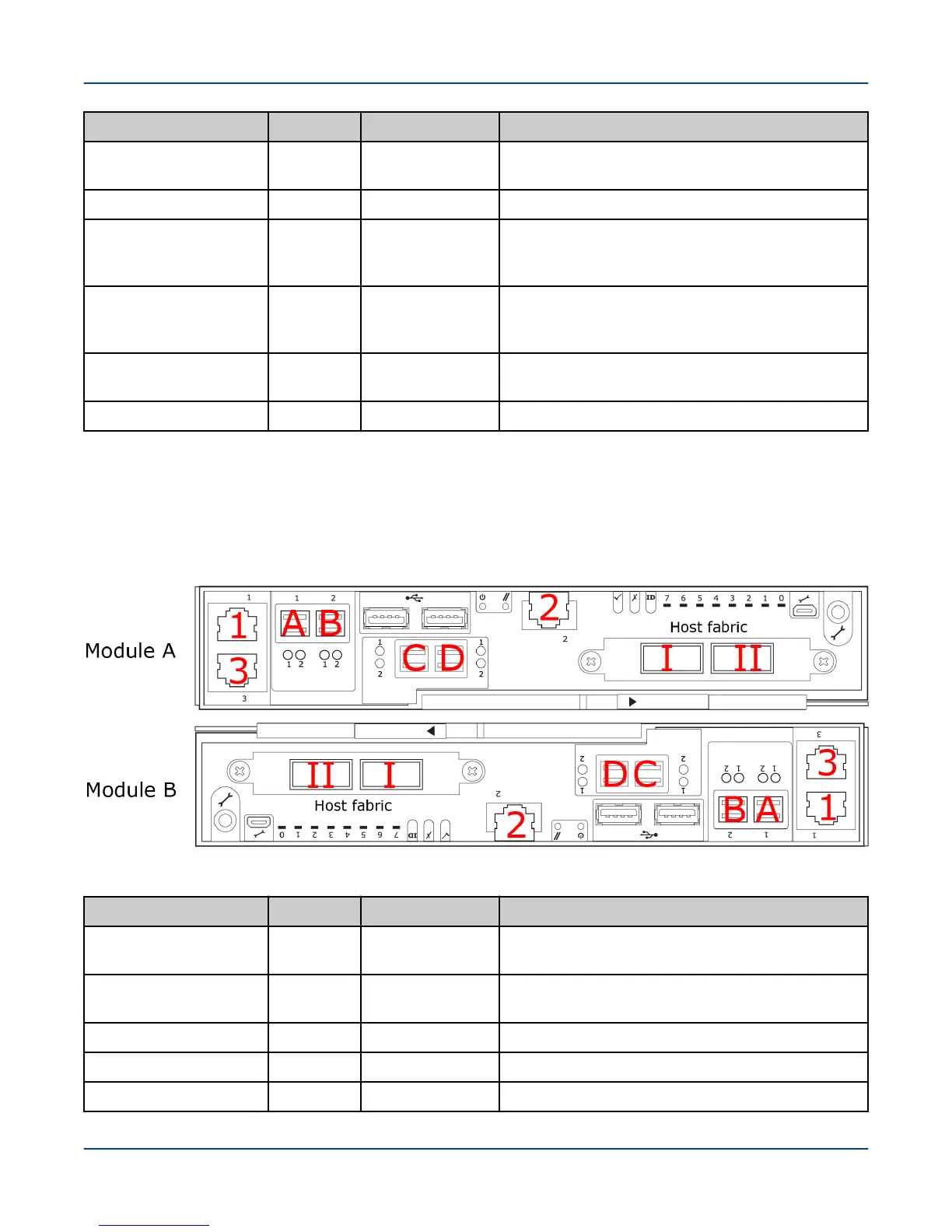

Figure 70. MMU Physical and Logical Port Numbering
Table 8. MMU Physical and Logical Port Numbering
Physcial Port Label Logical Port Connection
Onboard NIC 1(MGT
Nodes)
1
meth1
Primary management network (SW0) /
management and IPMI
Onboard NIC 2 (MGT
Nodes)
2
meth0
Secondary management network (SW1) /
management and IPMI
Onboard NIC 3 3 Unused
IBS Port I I IBS I Data network connections
Data Network Port II II IBS II Data network connections
Reference
