16.5 Power Diagrams
16.5.1
Base Rack Standard Power Distribution for PX2-5965X3-V2

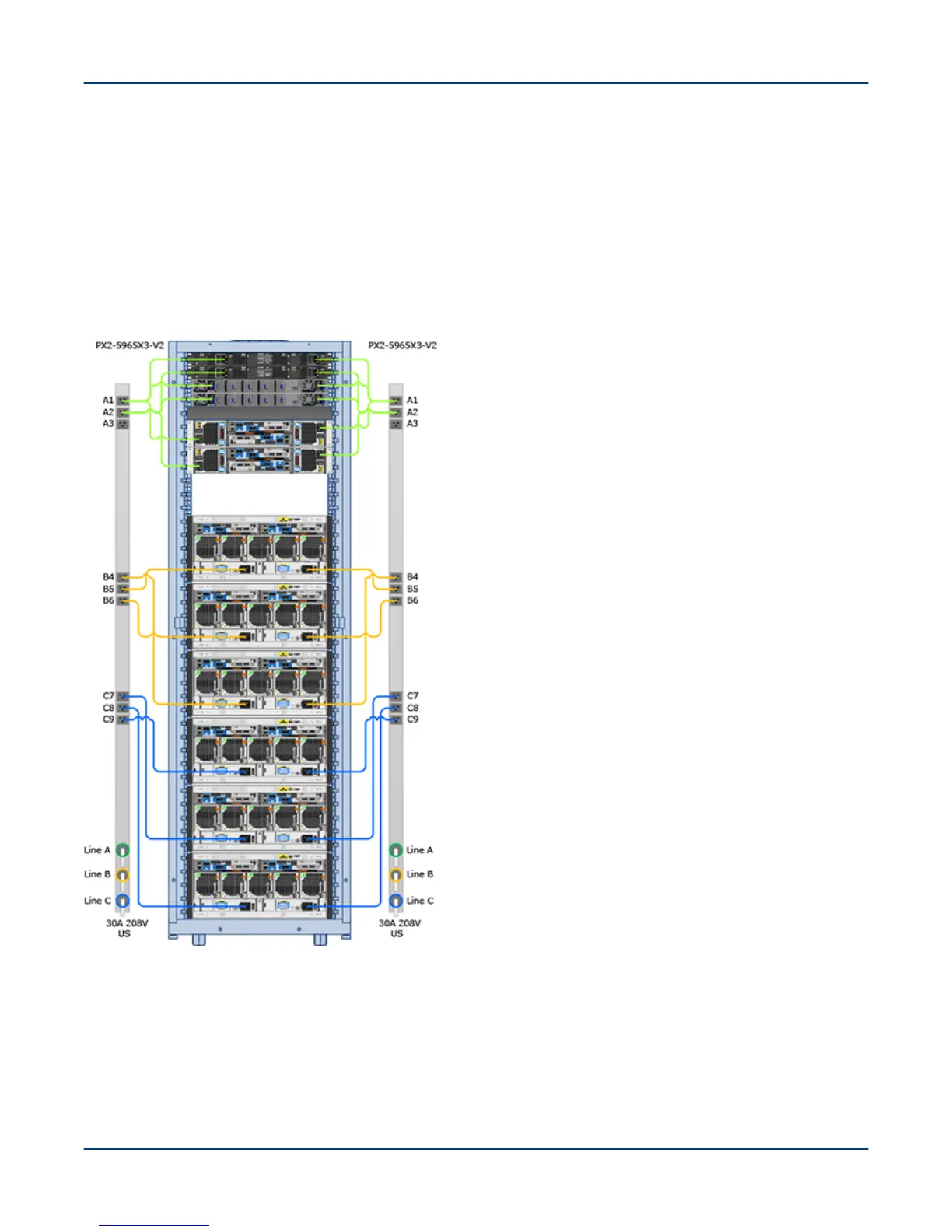

Cabling diagram for ClusterStor L300 and L300N base rack configuration PX2-5965X3-V2.
Figure 84. Base Rack Standard Power Distribution for PX2-5965X3-V2 ClusterStor L300 and L300N
16.5.2 Base Rack Inverted Power Distribution for PX2-5965X3-V2
Cabling diagram for ClusterStor L300 and L300N inverted base rack configuration PX2-5965X3-V2.
