Cray ClusterStor L300 - Cable SMU and 24-Port Omni-Path LDN Dual 48-Port LMN Switches

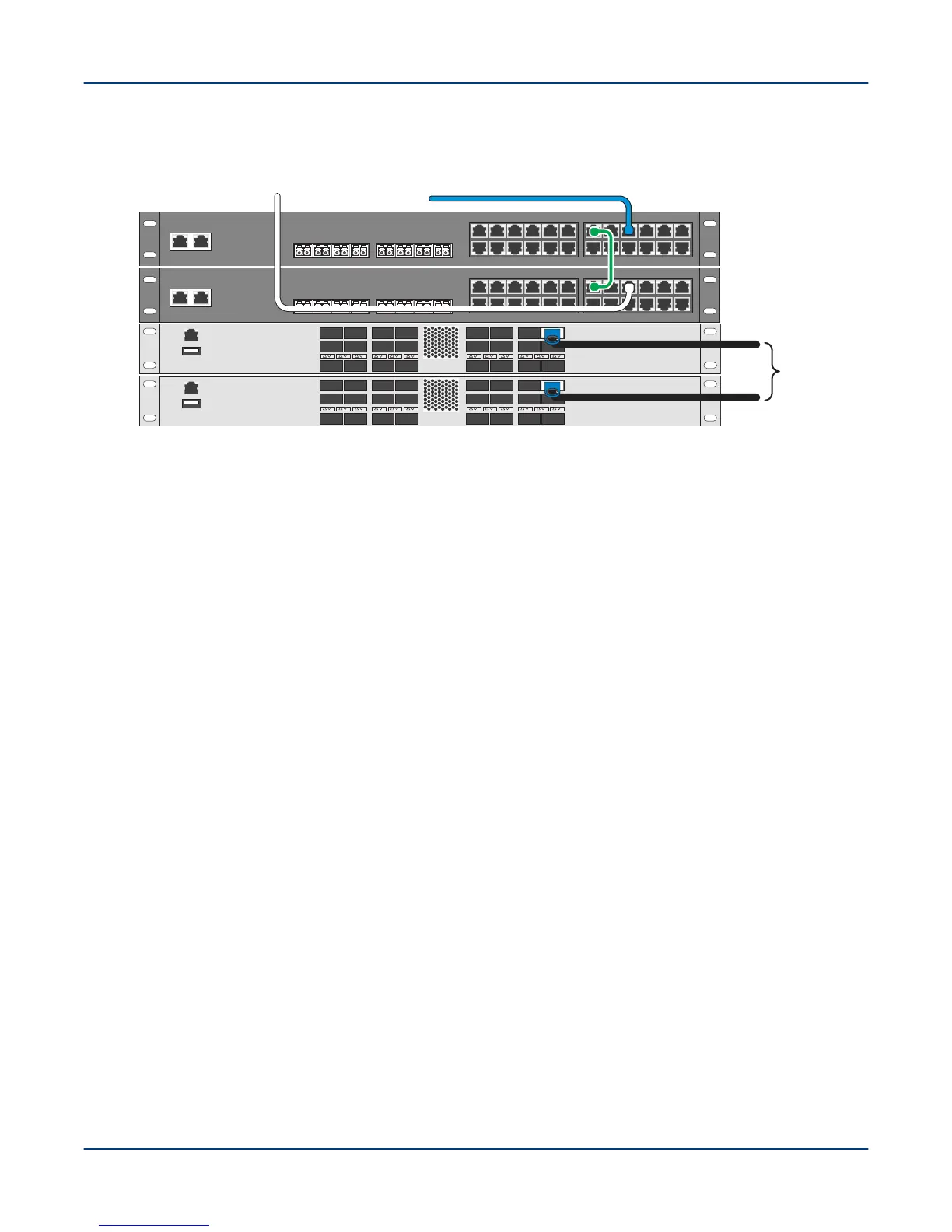

Figure 33. Cable Storage Rack with 24-Port OPA LDN and Dual 24-Port LMN Using Core Switch, ClusterStor L300 and L300N
OPA1
OPA0
LDN to
customer
core switch
1 2 3
4
5
6 7 8 9
10 11
12
13 14 15
16
17
18 19 20 21
22 23
24
X1 X2 X3 X4 X5 X6 X7 X8
1 2 3
4
5
6 7 8 9
10 11
12
13 14 15
16
17
18 19 20 21
22 23
24
X1 X2 X3 X4 X5 X6 X7 X8
SW1
SW0
From base rack
SW1 switch
From base rack
SW0 switch
Procedure
1. In the base rack and each storage rack, connect an Omni-Path fabric data cable to the lower Omni-Path
switch (OPA0 in the diagrams) (available ports listed above), and then to the customer core switch.
2. In the base rack and each storage rack, connect an Omni-Path fabric data cable to the upper Omni-Path
switch (OPA1 in the diagrams) (available ports listed above), and then to the customer core switch.
3. In each storage rack of a multi-rack system, connect a Cat 5/6 Ethernet cable to the lower Ethernet switch
(SW0) (available ports listed above). Connect the other end of the cable to the lower Ethernet switch (SW0) in
the base rack.
4. In each storage rack of a multi-rack system, connect a Cat 5/6 Ethernet cable to the upper Ethernet switch
(SW1) (available ports listed above). Connect the other end of the cable to the upper Ethernet switch (SW1)
in the base rack.
5. In the base rack, connect a Cat 5/6 Ethernet cable from the NIC card, SMU node 0, NIC 5 to the local
network.
6. In the base rack, connect another Cat 5/6 Ethernet cable from the NIC card, SMU Node 1, NIC 5 to the local
network.
11.6 Cable SMU and 24-Port Omni-path LDN Dual 48-Port LMN
Switches
About this task
For ClusterStor L300 and L300N inter-rack Omni-Path (OPA 24-port LDN) switch cabling, the available uplink
ports are:
Environment Connections
