Cray ClusterStor L300 - Storage Rack Optional MMU Standard Power Distribution for PX2-5965 X3-V2; Storage Rack Optional MMU Inverted Power Distribution for PX2-5965 X3-V2

16.5.3 Storage Rack Optional MMU Standard Power Distribution for PX2-5965X3-V2

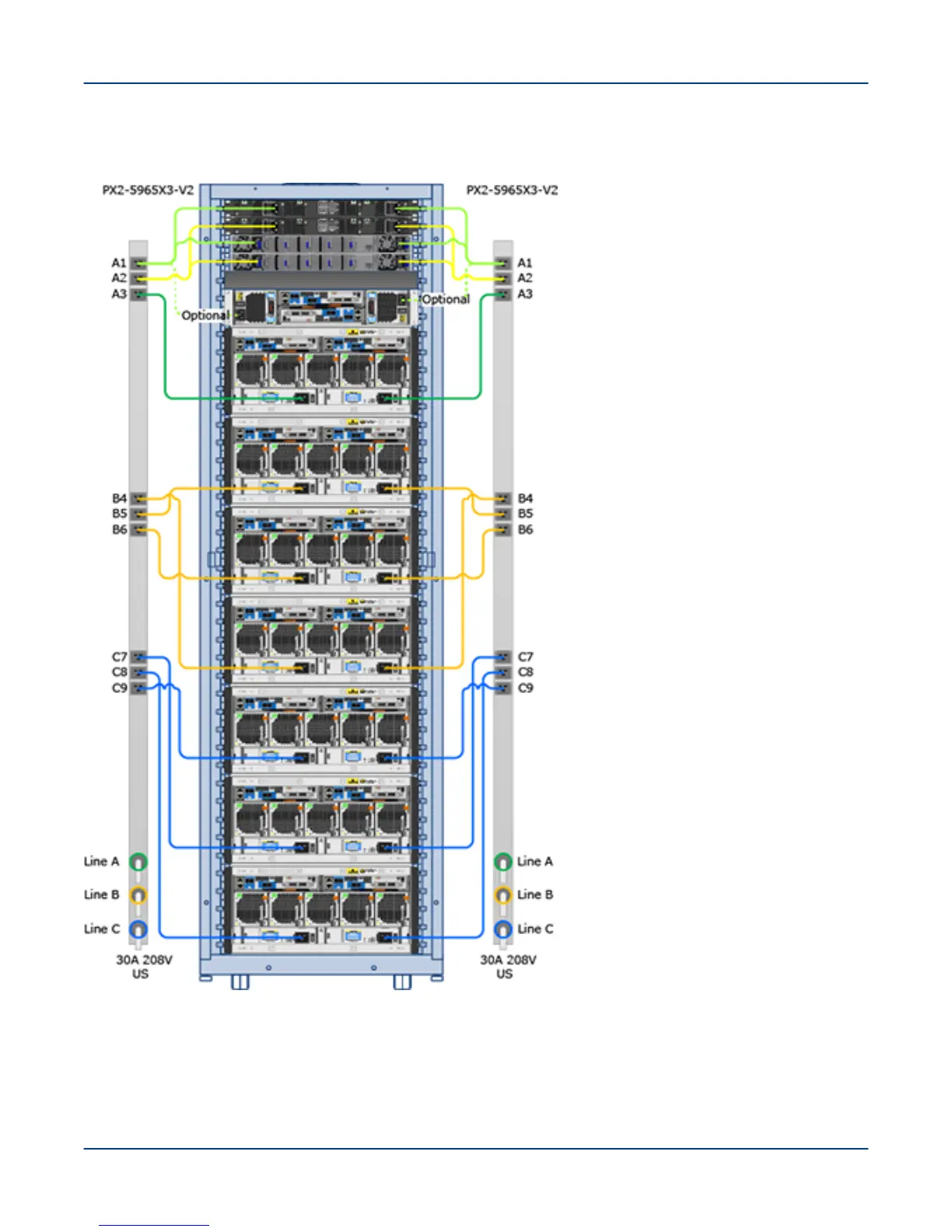

Figure 86. Storage Rack Optional MMU Standard Power Distribution for PX2-5965X3-V2 ClusterStor L300 and L300N
16.5.4 Storage Rack Optional MMU Inverted Power Distribution for PX2-5965X3-V2
Cabling diagram for ClusterStor L300 and L300N storage rack optional MMU inverted power distribution for
PX2-5965X3-V2.
Reference
126
