Cray ClusterStor L300 - Page 120

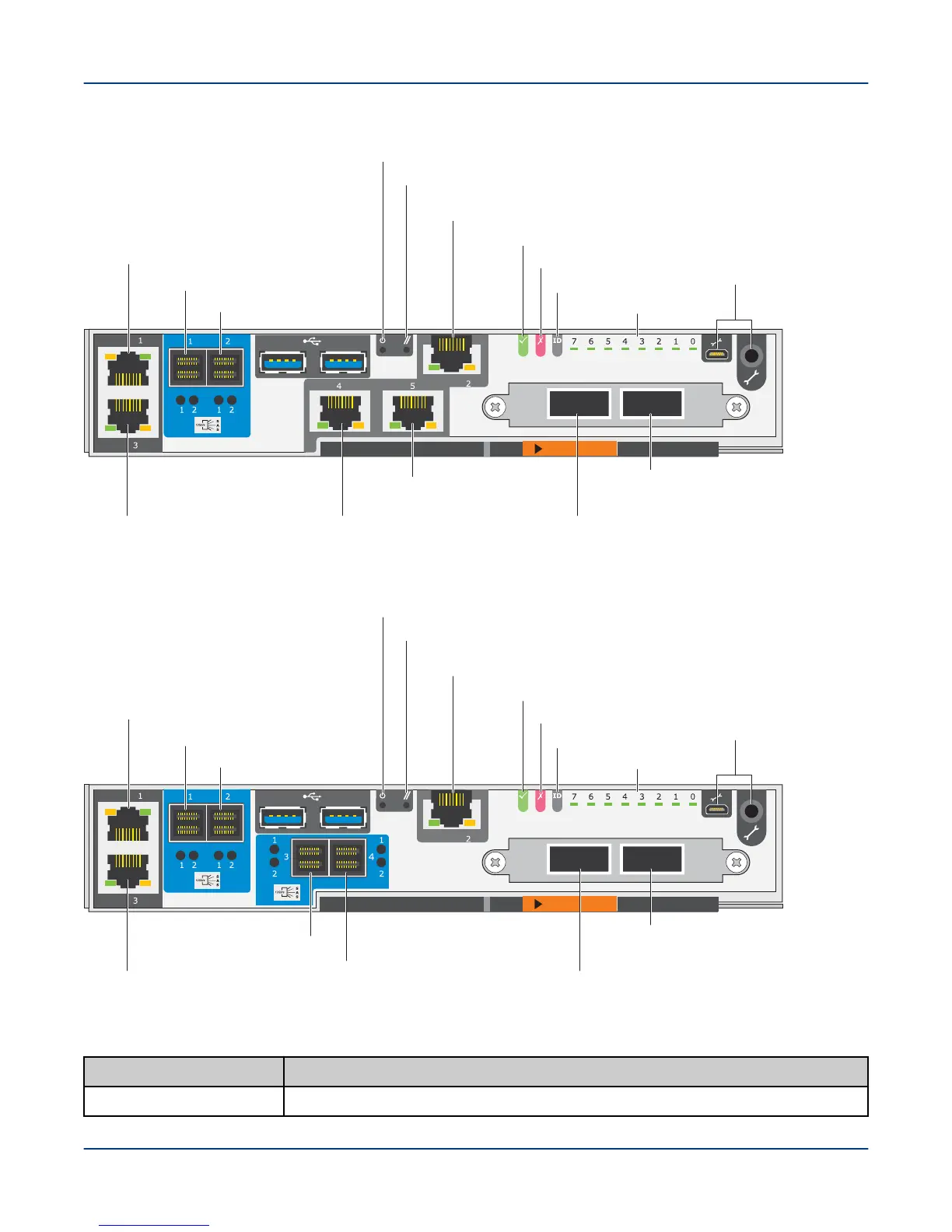

Figure 79. EAC for SMU Nodes
Ethernet NIC 3
eth2 (not used)
SAS port 1
SAS port 2
Reset
Power
OK LED
Ethernet NIC 2
mgmt0 (secondary management network)
Fault LED
Diagnostic LEDs
Local data network (LDN)
port I
Local data network (LDN)
port II
Maint ports
ID LED
Ethernet NIC 4
pub1 (external admin network)
Ethernet NIC 5
pub0 (external admin network)
Ethernet NIC 1
mgmt1 (primary management network)
Figure 80. EAC for MMU and SSU Nodes
Ethernet NIC 3
eth2 (not used)
SAS port 1
SAS port 2
SAS port 3
SAS port 4
Reset
Power
OK LED
Ethernet NIC 2
mgmt0 (secondary management network)
Fault LED
Diagnostic LEDs
Data network
port I
Data network
port II
Maint ports
ID LED
Ethernet NIC 1
mgmt1 (primary management network)
Table 25. EAC LED Fault Status Descriptions
LED Description
Ethernet Port LEDs Right Side - Link active
Reference
