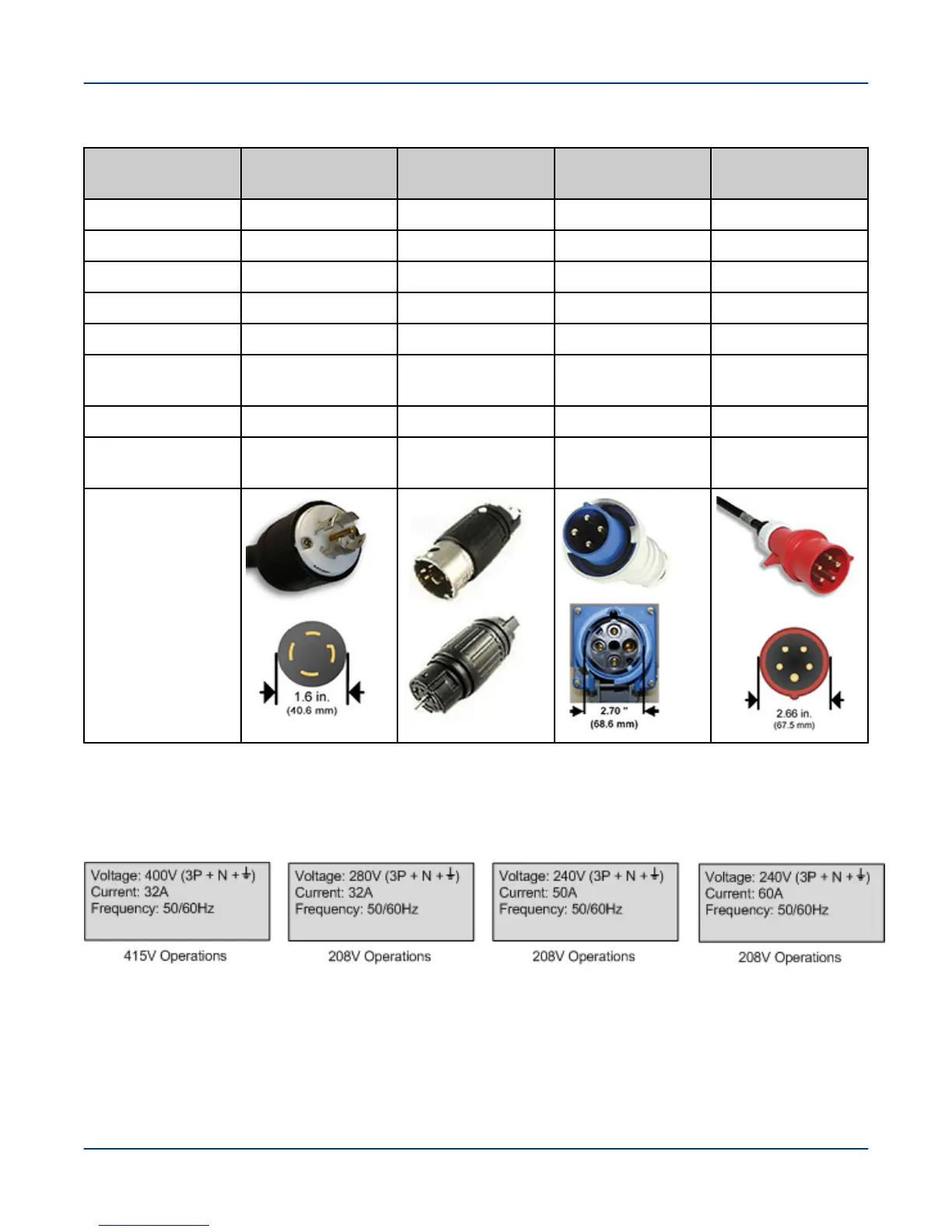

Table 3. ClusterStor L300 and L300N PDU Specifications
Operation PX2-5965X3-V2
208V
PX2-5100X2-V2
208V
PX2-5551-N4V2
208V
PX2-5104X2-V2
415V
Plug Type NEMA L21-30P Hubbell CS8365C IEC60309 60A 3P IEC60309 32A 3PY
Input Phase 190-208 3Φ-Delta 208-240V 3Φ-Delta 208-240V 3Φ-Delta 380-415 3Φ Wye
Output 190-208V 208-240V 208-240V 220-240V
Outlet Type C19 C19 C19 C19
Form Factor 0U 0U 0U 0U
Circuit Breaker
(QTY)
20A, 2-pole UL489
(9)
20A, 2-pole UL489
(12)
20A, 2-pole
LEGBX66- 20 (6)
16A, 1-pole UL489,
VDE (12)
Rated Current 24A/Phase 40A/Phase 48A/Phase 32A/Phase
Power Capacity 23.7kVA at 190V,
25.9kVA at 208V
28.8kVA @ 208V,
33.3kVA at 240V
17.3kVA at 208V,
20.0kVA at 240V
42.2kVA at 380V,
46.0kVA at 415V
NOTE: The rating labels shown in the preceding table provide the 20% de-rated factor values as required
for operations in the USA.
Figure 16. Rating Labels
Procedure
1. Place the rack PDU power switches and the power switches on all the other components in the OFF position.
Not all ClusterStor L300 and L300N components have power switches; in those cases the power cord
controls power to the component. Verify that the power cords for those components are disconnected.
