Procedure
1. Compare the appearance of the PDU with the following figure.

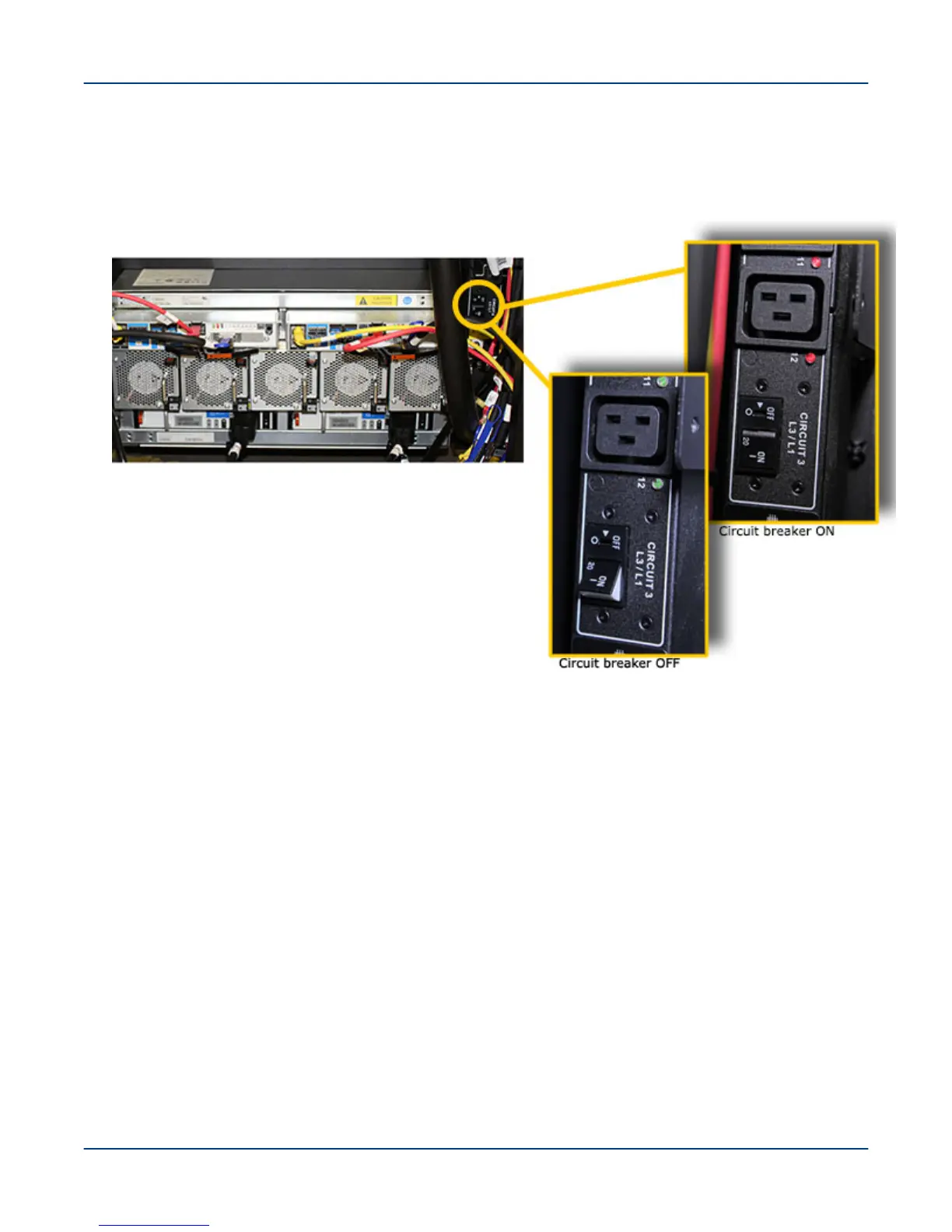

Figure 17. Circuit Breaker Status Conditions
2. To trip the circuit breaker when required, insert a small flat-blade screwdriver into the small slot on the OFF
side of the breaker, and press.
The LEDs begin to alternate red and green, and the ON button pops out.
Cable the External Power Connections
