Creality CR-10 Max User Manual

08
8.V wheel leveling
Before starting up, please check the tightness of the V wheel.

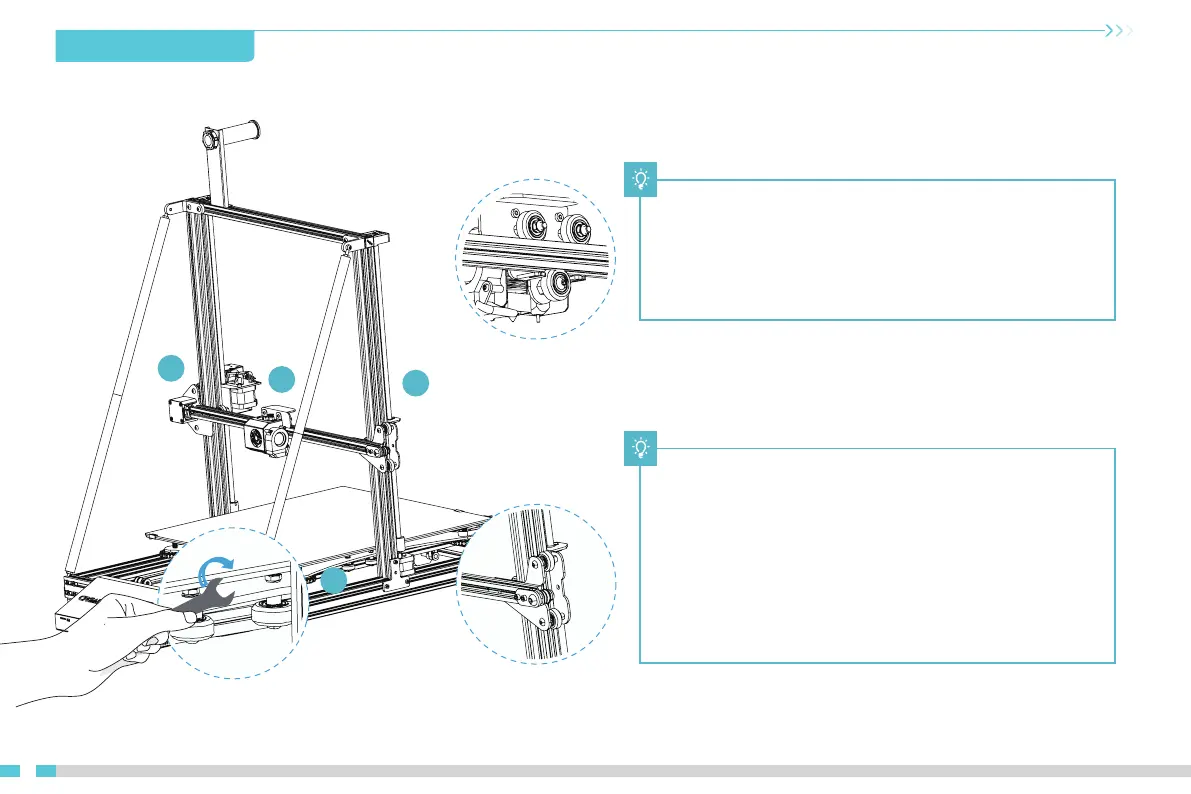

Z axis V wheel adjustment:
X/Y axis V wheel adjustment:
Gently dial the V-wheel by hand to check whether it is idling or stuck.
If this phenomenon occurs, use an open-end wrench to adjust the
eccentric isolation column to make it rotate smoothly.
Gently dial the V-wheel by hand to check whether it is idling. If this
phenomenon occurs, use an open-end wrench to adjust the eccentric
isolation column counterclockwise so that the V-wheel has no idling.
Power on and click on the interface to return to the origin. After
returning to the origin, move the Z axis separately, and feel whether
the printing platform is stuck. If there is a stuck, adjust the eccentric
spacer clockwise to make it move smoothly.
Y
X
Z
Y
Adjustable eccentric isolation column

Creality CR-10 Max Specifications

General

Build Volume	450 x 450 x 470 mm
Layer Resolution	0.1 - 0.4 mm
Filament Diameter	1.75 mm
Max Nozzle Temperature	260°C
Connectivity	SD card, USB
Frame Material	Aluminum
File Format	STL, OBJ, AMF
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Nozzle Diameter	0.4 mm
Supported Materials	PLA, ABS, PETG, TPU
Display	Touchscreen
Print Speed	≤180mm/s, Normal 30-60mm/s
Max Bed Temperature	100°C
Bed Leveling	Automatic
