Creality CR-M4 User Manual

10

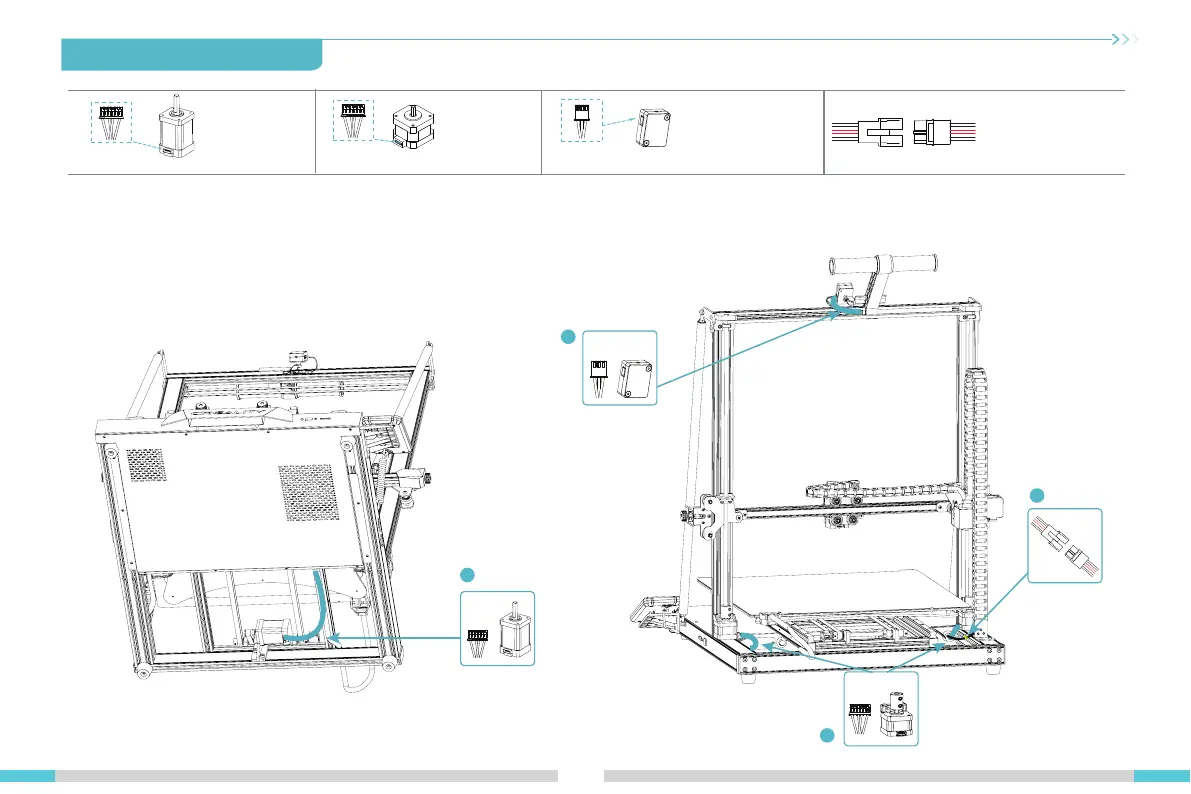

5.Equipment Connecting
Y-Axis
Motor Port
Filament Detection
Module
Filament detection
connector
6pin (4 wires) 3pin (3 wires)
A. Follow the yellow label on the 6pin (4 wires) port to connect the Y-axis stepper motor;
B.
Follow the yellow label on the 6pin (4 wires) port to connect the Z-axis stepper motor;
C.
D.
Connect the filament detection module by following the yellow label on the 3pin (3 wires) port;
Connect the filament detection connector;
Z-Axis
Motor Port
6pin (4 wires)
Z-axis
Y-axis
Filament
Detection
A
B
C
D

Creality CR-M4 Specifications

General

Build Volume	450 x 450 x 470 mm
Filament Diameter	1.75 mm
Max. Nozzle Temperature	300°C
Number of Extruders	1
Frame Material	Aluminum Alloy
Printing Technology	FDM (Fused Deposition Modeling)
Nozzle Diameter	0.4 mm
Connectivity	USB, Wi-Fi
Supported Materials	PLA, ABS, PETG, TPU
Power Supply	50/60Hz
Print Speed	30 - 120 mm/s
