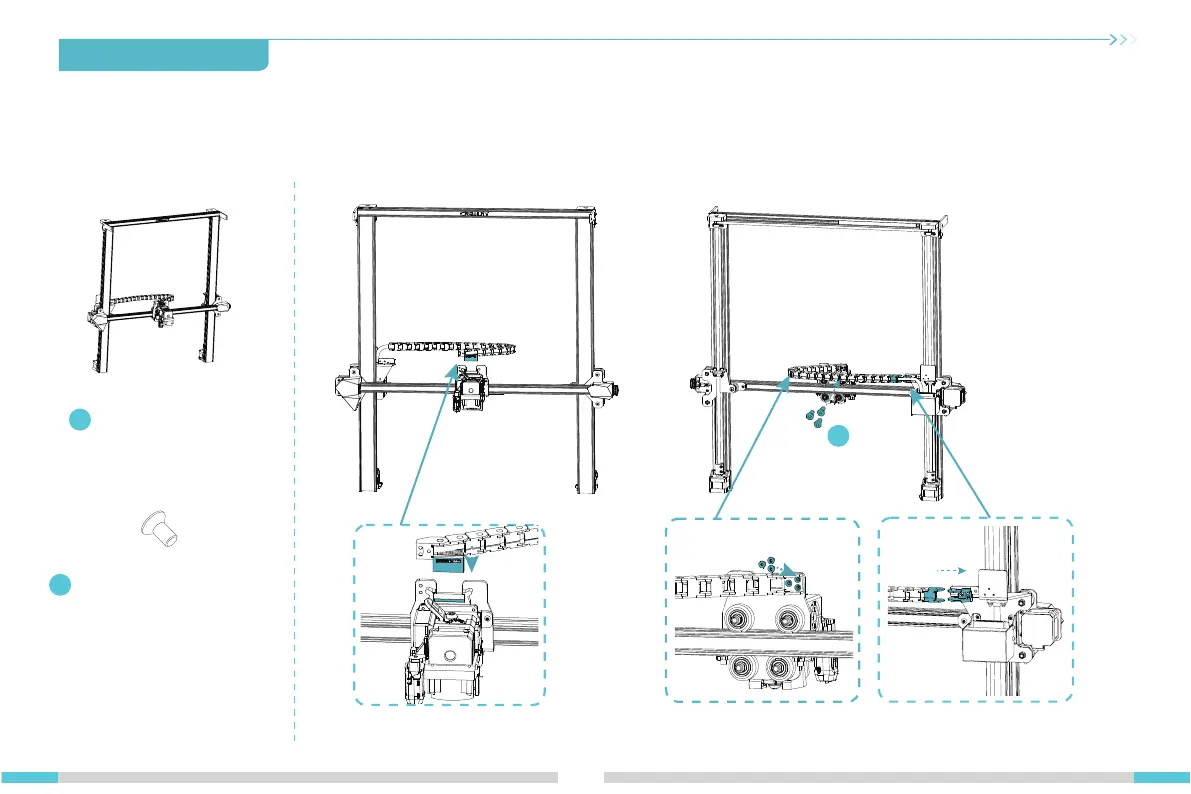

4.1 Installation of X-axis Cable Drag Chain
A.
Insert the extruder adapter terminals nto the appropriate interfaces.
B. Fix the front end of the X-axis cable drag chain to the extruder back support plate with 3 M3*5 screws.
C. Align the clips and then apply gentle pressure to assemble the drag chain at the rear end of the X-axis.
4.Device Installation
Figure A Figure B Figure C
2
Gantry Frame Assembly
22
Countersunk Screw M3*5 × 3
