Crestron CP3N Reference Guide

Reference Guide – DOC. 7150B 3-Series Control Systems • 7
5. Enter the following search parameters for the device (required only if
multiple USB connections are active):
• Model: Enter the model name of the Crestron device (for example,
PRO3). The model is not user-defined; it is the actual model name of
the device as displayed in the System Info tool (under
Device Name in
the
Product Info section)
• Hostname: Enter the user-defined hostname, as previously assigned
in the TCP/IP settings
• Serial: Enter the serial number (not the model number or TSID) of the
Crestron device. The serial number is a seven digit number (not
beginning with 60 or 65) that may contain letters. The serial number is
printed on a sticker affixed to the device.
6. Enter the following advanced authentication parameters for the device (if
required):
• Username: Enter the username required to authenticate device
communications
• Password: Enter the password required to authenticate device
communications
7. Click OK.
The device status reports as "Connected" at the bottom of the selected tool if
communications have been established.

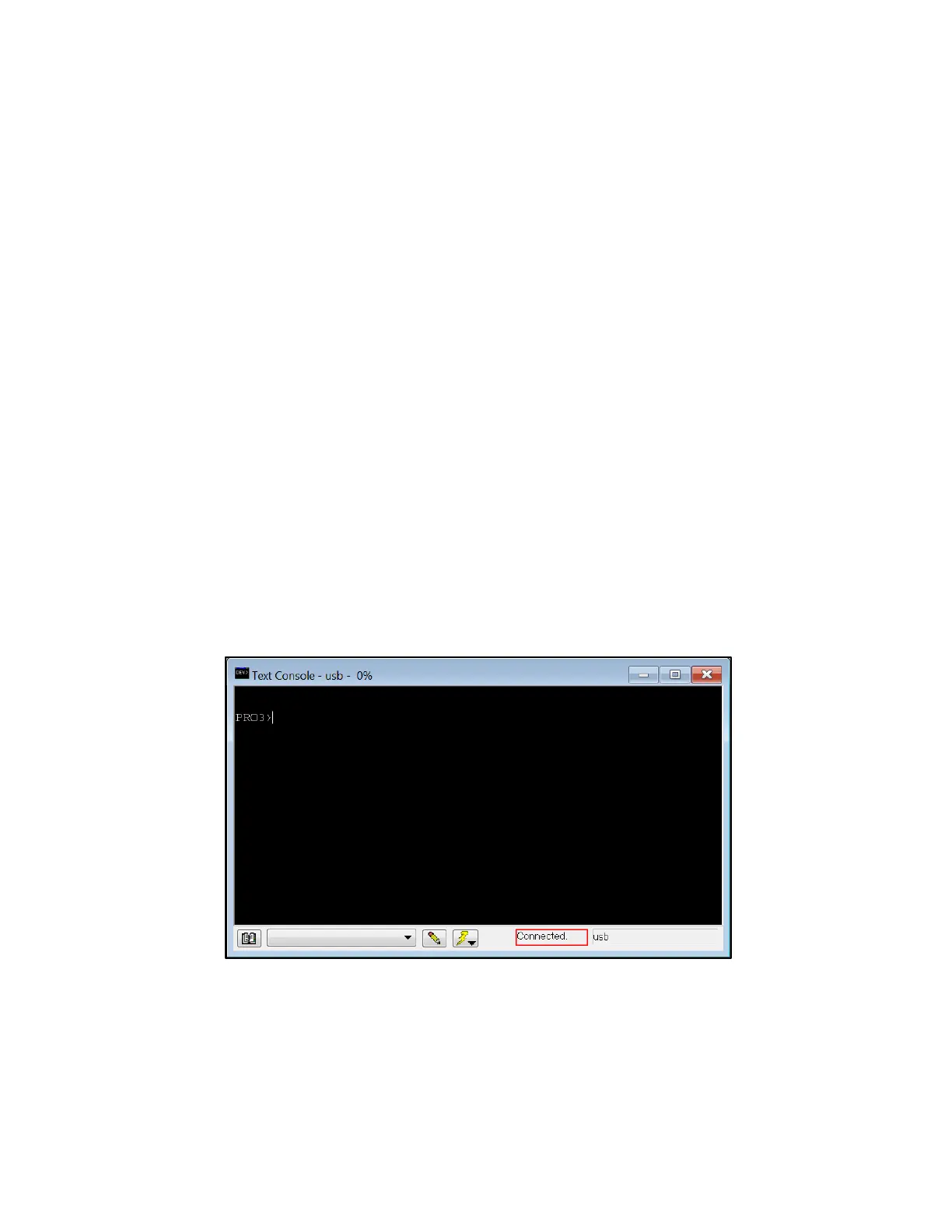

Text Console - Connection Status
The USB connection information for the control system may be saved using the
Address Book
function in Crestron Toolbox. For more information, refer to the
Crestron Toolbox help file.

Crestron CP3N Specifications

General

Internal memory	0.5 GB
Storage media type	Flash
Internal memory type	SDRAM
Internal storage capacity	4 GB
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	24 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Heat dissipation	50 BTU/h
Housing material	Metal
Ethernet LAN (RJ-45) ports	2

Weight and Dimensions

Depth	167 mm
Width	439 mm
Height	44 mm
Weight	1420 g
