Crestron CP3N Reference Guide

Reference Guide – DOC. 7150B 3-Series Control Systems • 59

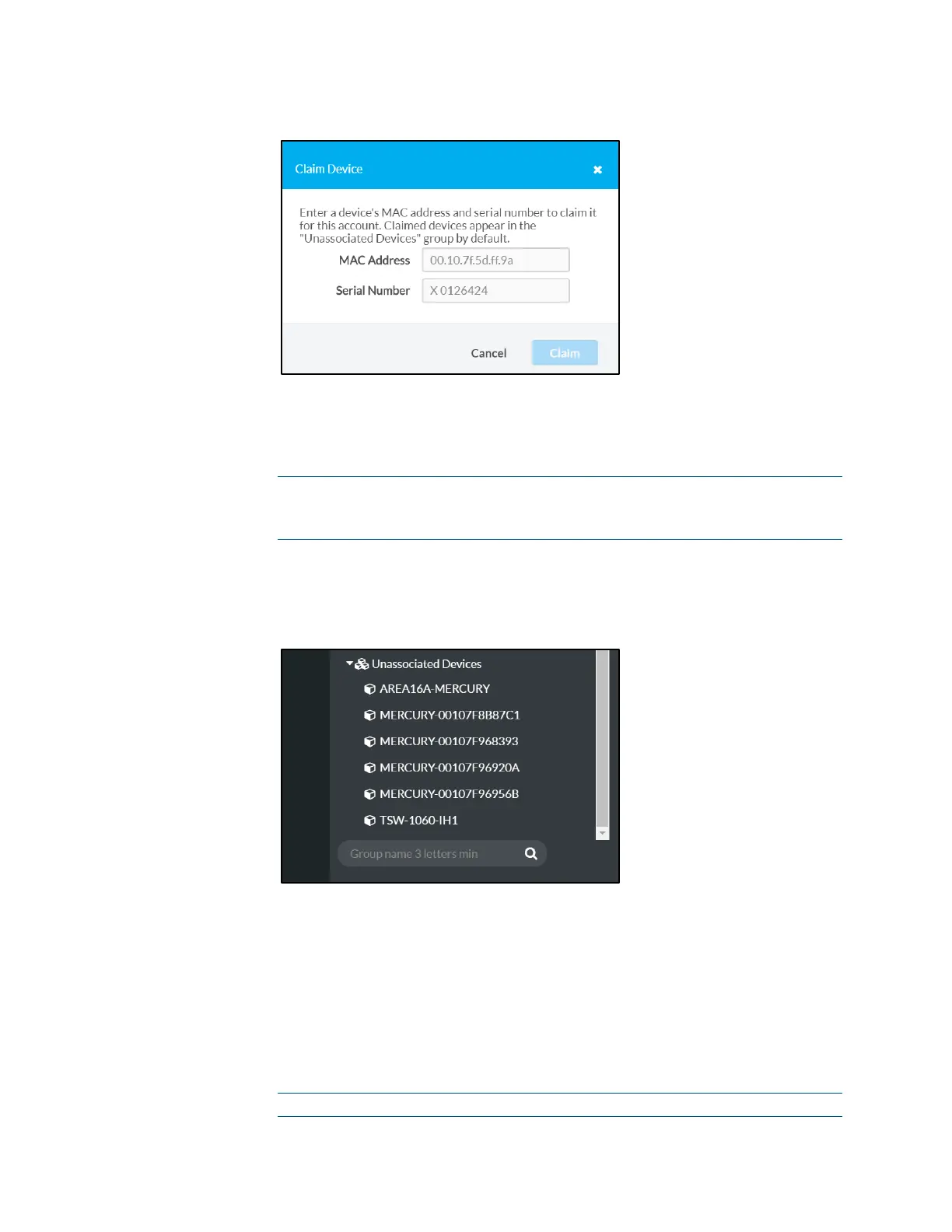

Claim Device Dialog Box
4. Enter the MAC address and serial number recorded in step 1
in the MAC
Address and Serial Number fields, respectively.
5. Click Claim. A success message is displayed if the claim is successful.
NOTE: If an error message is displayed stating that the device does not
exist, connect the device to a network that has access to the Internet,
wait 15 minutes, and then try again.
6. Click X to close the dialog box. The hostname of the claimed device is
displayed in the device tree under the group
Unassociated Devices.
Unassociated Devices
The device may now be managed and assigned to a group.
Claim Multiple Devices
To claim multiple devices:
1. Record the MAC address and serial number of each device as a comma
delimited CSV file. The MAC address and serial number are labeled on the
shipping box or on a sticker attached to the device.
NOTE: Use the MAC address labeled MAC Address .

Crestron CP3N Specifications

General

Internal memory	0.5 GB
Storage media type	Flash
Internal memory type	SDRAM
Internal storage capacity	4 GB
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	24 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Heat dissipation	50 BTU/h
Housing material	Metal
Ethernet LAN (RJ-45) ports	2

Weight and Dimensions

Depth	167 mm
Width	439 mm
Height	44 mm
Weight	1420 g
