The CS2351 and CS5351 Expander Boards
The CS2351 and CS5351are plug-on Expander Boards that provide an additional
4 inputs to the DualCom. These will trigger channels 9, 10, 11 and 12.
Note that the DualCom GPRS uses channels 13, 14, 15 and 16 to report path
and polling faults to the ARC, thus only 4 extra inputs (9 to 12) can be used on
security installations.
The CS2351 is for use with 12 volt alarm systems only.
The CS5351 may be used with alarm systems supplied up to 30 volts.
18
3. Connect the triggering inputs to the input terminals labelled 9 to 12, as
required. See Appendix 2.
All of the normal options apply to the inputs on the Expander Board. These
are: Positive applied / removed triggering and Self Learning.
4. Re-connect the power supply.
Note 1:
The CS2351 Expansion Board is for use with Intruder Alarm systems
only. The supply voltage must not exceede +15 volts.
The CS5351 Expander Board may be used on systems with power supply
voltages between 12 and 30 volts.
Note 2:
A Wired LAN(IP) Card and an Expander Board can not both be fitted, only
one or the other.

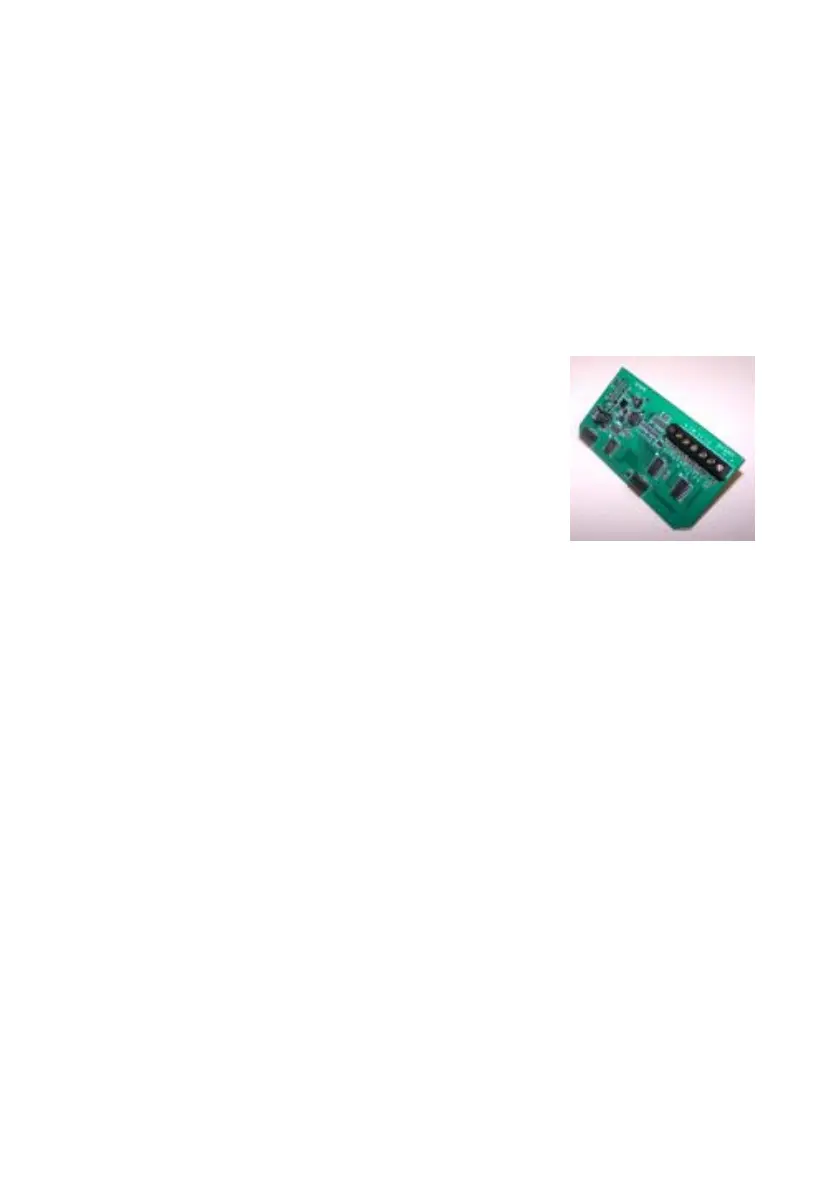

Fig 7
Installation
1. Remove power to the DualCom when fitting or re-
moving the Wired LAN Card or the Expander Board.
2. Slide the Expander Card into the two slots on the
DualCom top cover with the screw terminals facing
towards the DualCom’s terminals. Push the Ex-
pander Card down to ensure it connects fully to the
DualCom. See Fig 6.
